24W P6 Commercial Indoor Fixed LED Display Low Power Consumption In Railway Station

24W P6 Commercial Indoor Fixed LED Display Low Power Consumption In Railway Station
24W P6 Commercial Indoor Fixed LED Display Low Power Consumption In Railway Station 24W P6 Commercial Indoor Fixed LED Display Low Power Consumption In Railway Station

Large Image :  24W P6 Commercial Indoor Fixed LED Display Low Power Consumption In Railway Station

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: RoHS,FCC,CCC,CE
Model Number: LW-FI 6
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: negotiable
Packaging Details: Plywood cartons or wooden case
Delivery Time: 12~18 days after receiving the deposit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000 square meter /Month
Detailed Product Description
Product Name: P6 Pixel Pitch: 6mm
Size Of Module: 192×96mm Density Of Pixel: 27777dots/m2
Constitution: 1R1G1B Encapsulation: 3528
Module Resolution: 32×16 Module Power Cosumption: 24W
The Optimum Viewing Distance: 6m Viewing Angle(Horizontal): 120°
High Light:

Advertising Led Display

,

Indoor Led Display Screen

Indoor fixed led display_201905211023311.pdf





P6 Commercial Indoor Fixed LED Display Low Power Consumption In Railway Station





P6 Indoor Fixed LED Display Features:

  • P6 video display screen apply the latest technology of integrated surface mounted devices SMD;
  • The design of the acrylic back cover ensures good cooling and stable performance when the led screen is working;
  • High PFC power supply can cut 20% power consumption;
  • According to the ambient light level;
  • Different shape and size can be made according to your requirement;
  • four color technology, color range is wider, more colorful;
  • Beautiful Led wall indoor full color led display
  • High contrast black LED lamp, slow reflection mask design, contrast up to 3000:1

  • Front and rear sccess and magnetic modules,save labor cost.
  • 16-bit color processing enable a vivid color quality.



P6 Indoor Fixed LED Display Parameter:



Specification of Indoor SMD 3-in-1 LED Display
Product Name P6
Pixel pitch 6mm
Size of module 192×96mm
Density of pixel 27777dots/m2
Constitution 1R1G1B
Encapsulation 3528
Module resolution 32×16
Module power cosumption 24W
The optimum viewing distance 6m
Viewing angle(Horizontal) 120°
Maximum power cosumption 1000W/m2
size of cabinet 960×768mm
Resolution of cabinet 160×128
Cabinet weight 43kg
Driving Components MBI5024GF
Driving method 1/8
Frame frequency ≥60hz/s
Refresh rate ≥400hz/s
Luminance of white balance ≥2000 CD/m2
Working enviornment temperature -10ºC--50ºC(-30ºC--50ºCoptional)
Working voltage 220±10% or 110±10%
Grey Scale/Color Displaying colors≥16.7M(synchronized)
Brightness adjustment 256 levels of each color(R,G,B) can be adjusted manually, and 8 levels of each color can be adjusted automatically
Input signal RF, S-VIDEO, RGB, RGBHV, YUV, YC and COMPOSITION, etc
Control system PCTV non-linear editting card+DVI display card+main controller card+optic fibre transmission(Optional)
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.





FQA:

1. What about the lead time?
Order less than 100 square meter led time take 15 working days

 First we discuss order details, production details by email or mobile contact. Then we issue you an PI for your confirmation. You will be requested to do before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.

2. What's the controlling system?
Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
Our average Production time is 16 days, after receiving the deposit.
3. Is it OK to print my logo on led Screen product?
Yes. Please inform us formally before our production and confirm the design firstly based on your project.





Application:

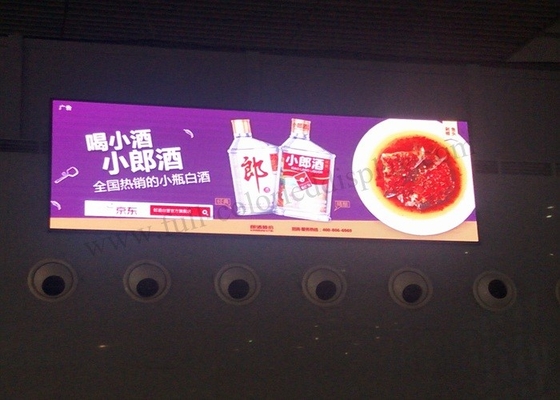

24W P6 Commercial Indoor Fixed LED Display Low Power Consumption In Railway Station 0





Pacakge Details:



24W P6 Commercial Indoor Fixed LED Display Low Power Consumption In Railway Station 1
