High Gray Scale Indoor Backlit LED Display Screen P3 With Back And Front Service

High Gray Scale Indoor Backlit LED Display Screen P3 With Back And Front Service
High Gray Scale Indoor Backlit LED Display Screen P3 With Back And Front Service High Gray Scale Indoor Backlit LED Display Screen P3 With Back And Front Service

Large Image :  High Gray Scale Indoor Backlit LED Display Screen P3 With Back And Front Service

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE,RoHS,FCC,CCC
Model Number: LW-RI 3
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: negotiable
Packaging Details: Carton/Plywood case/Flight case etc.
Delivery Time: 15~20 working days after deposit received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000 sqm/month
Detailed Product Description
Module Size: 192mm×192mm Density: 111111dots/sqm
Red Wavelength: 625±2nm Green Brightness: 360-435 MCD
Cabinet Weight: 8 Kg/panel Driving Method: 1/16scanning
Blue Wavelength: 470±2nm Usage: Indoor
Pixels: 3mm Refresh Rate: 1920/3840
High Light:

Led Video Screen Hire

,

Ultra Thin Led Screen



High Gray Scale P3 Indoor Backlit LED Display Screen With Back And Front Service

P3 Indoor Rental LED Display Screen features:
  • High definition with an outstanding image and video quality;
  • High and adjustable LED brightness can meet the demands of the changing requirement of customer in different environments;
  • Easy: Modular design, easy assembly and maintenance;
  • Good heat dissipation capability because of the unique design of vent fan;
  • Normally we use Epistar Silim LED from Taiwan;
  • Easy to maintain , remove and replace the defect part individually;



Advantage:

  • Small order accepted;
  • Professional lock design makes seamless connection available;
  • 2 year waranty + 1 set of spare part for free;
  • Better color performance, higher contrast and refresh ratio,high luminance and definition;
  • Adjustable brightness: Viview LED screen brightness can be adjusted automatic and manual according to environment light;
  • Noiseless:The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent;
  • Easy to maintain:No need to disassemble the whole screen for maintenance. Each component can be detached individually;
  • professional technical support + quality promise;



P3 Indoor Rental LED Display Screen parameter:

LED lamps & modules parameter:

Pixel pitch 3mm
Module size 192mm×192mm
Module resolution 64×64
Module density 4096dots/sqm
Pixel configuration RGB,3 in 1
Red wavelength 625±2nm
Green wavelength 525±2nm
Blue wavelength 470±2nm
Red brightness 120-140 MCD
Green brightness 360-435 MCD
Blue brightness 80- 100 MCD
H/V Visual angle 140°/120°



Cabinet parameter:

Cabinet Size(mm) 576x576x80
Cabinet weight 8 kg/panel
Cabinet resolution 192x192 dots
Material of cabinet Die-casting



Electricity parameter:

Colors 16777216
Best viewing distance 3m---15m
Horizontal viewing angle 140°
Vertical viewing angle 120°
Maximum power consumption 1200W/sqm
Average power consumption 600W/sqm
Brightness 2500cd/sqm,adjustable
Gray scale 16bits of per color
Driving method 1/16scanning
Frame frequency 60Hz
Refresh frequency 300 Hz
Working voltage AC220V/110V±10%
IP grade IP20-45
Working temperature -20°C~80°C
MTBF More than 10,000 hours
Life span More than 100,000hours





Why choose us:

  • Because we have provide 2 year warranty ,good after-sale service and timely technical support;
  • Many pitches are available from high cost to low cost You can choose according to your budget and the project requirements;
  • Many produce lines work everyday for domestic and international orders;
  • Stable Good quality:we are led display manufacturer for 7 years and we have rich experience for outdoor and indoor led screen;
  • all of our led module has highly resolution, good image effect,and easy to install and convenient to carry;
  • We are factory manufacturer and we control our cost very well we can give the real benefits to our customers;


FQA:

1. What's the function of your led screen?

It supports videos, flash, WAV/MIDI, PPT, images and so on
2. How to deal with the faulty?

Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%;Secondly, during the guarantee period, we will send new module with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
3. How is your delivery time?

We delivery as contract on time, All kinds of led module have in stock. We will be fine as compensation.
4. How to install led display?

We will provide drawing of steel structure or hanging truss,then you can install led display very easy.





P3 Indoor Rental LED Display Screen project case:

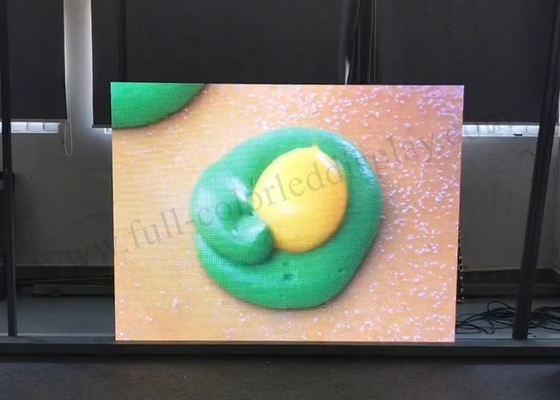

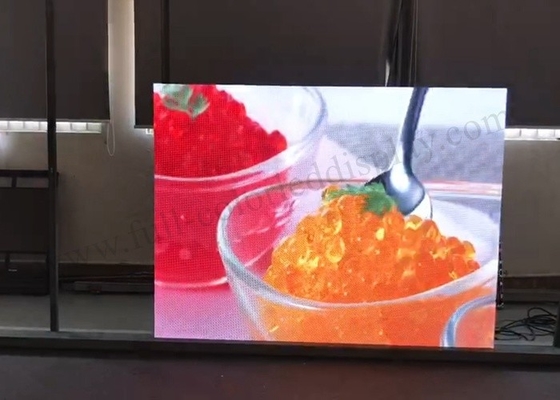

High Gray Scale Indoor Backlit LED Display Screen P3 With Back And Front Service 0



High Gray Scale Indoor Backlit LED Display Screen P3 With Back And Front Service 1





Package:

High Gray Scale Indoor Backlit LED Display Screen P3 With Back And Front Service 2
