Indoor Fixed LED Display 3mm Pixel Pitch

Indoor Fixed LED Display 3mm Pixel Pitch
Indoor Fixed LED Display 3mm Pixel Pitch
video play

Large Image :  Indoor Fixed LED Display 3mm Pixel Pitch

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: RoHS,FCC,CCC,CE
Model Number: LW-FI 3
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: negotiable
Packaging Details: Plywood cartons or wooden case
Delivery Time: 12~18 days after receiving the deposit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000 square meter /Month
Detailed Product Description
Cabinet Material: Iron View Angle: H 120° /V 120°
Life Span(Hours): ≥55,000Hours Color Temperature: 5600K±500
Pixel Density: 111111dots/M2 Maintenance: Front Service
Frame Frequency: ≥30Hz Control System: Linsn/Novastar
High Light:

Advertising Led Display

,

Fixed Installation Led Display

High Resolution 3mm pixel pitch indoor fixed led display with High Refresh Rate



Features:

  • The LED lamps can be white LED for higher brightness or black LED for higher contrast rate;
  • Black body led lamps confirm the high brightness,high contrast rate;
  • Aircraft-grade connectors of power supply and signal connection are of high reliability, good conductivity and durability, suitable for rapid connection and high frequency use;

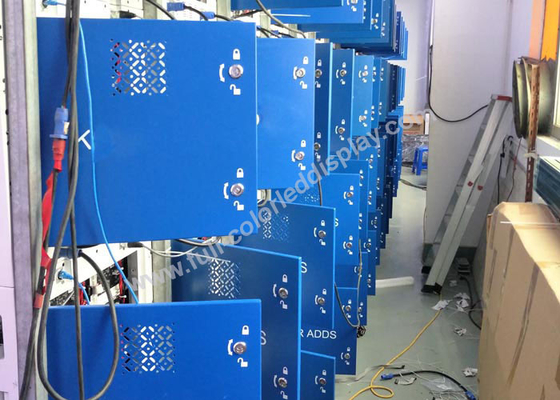

  • Supports full front maintenance. Power supply and receiving card can be taken off and replaced in front of cabinet for maintenance by which you can use more convenient;
  • High quality components and precise production process,lower the ratio of blind LEDs;
  • 2 Years warranty;
  • Brightness(average) ≥ 1300CD/m2;
  • Front Service,can be open from LED Screen front and maitain;



Parameter:

Item Parameter
Pixel Pitch P3mm
Encapsulation SMD2121 black
Pixel Configuration 1R1G1B
Driver Method Scan1/16
Color Match R:G:B=3:6:1
Module Size(H*W) 96*192mm
Module Resolution(H*W) 32*64dots
Cabinets Size(H*W) 576*768mm
Pixel Density 111111dots/M2
Modules Weight 15kg
Cabinet Material Iron
Maintenance Front service
Average Power Consumption 540W/M2
Max. Consumption 1200W/M2
Brightness ≥1300CD/M2
View Angle H 120° /V 120°
Refresh Rate ≥1200Hz
Frame Frequency ≥30Hz
Color Depth 14bit
Voltage Input AC110V/220V±15% 40~65HZ
IP Rating IP31(front/back)
Operating Temperature -20ºC~60ºC , storage for :-30ºC~+90ºC
System Working Environment Humidity 10%-90%RH
Life Span(Hours) ≥55,000Hours
Best View Distance 3-105meter
Color Temperature 5600K±500
Power Supply G-energy(CE/UL)
Control Distance <100meter by Internet Cable(without Relay); Fiber Cable > 500 meters
No-malfunction time(Avg.) >5000hours
Control system Linsn/Novastar
Compliant standard CE, ROHS.ETL,UL.TUV.CCC,EMC
Information Sources Many kinds of signal access: can input TV signals , DVD signals , DVI, S-VIDEO, RGB, VGA, and so on.
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.



Why choose us:

  • Provide promotion activity;
  • The product are high quality;
  • We have integrated the sales team, let you no worries about pre-sales to after-sales;
  • CE,RoHS,FCC certification;
  • CE,RoHS,FCC, ISO9001;
  • Price Advantage: We have the best competitive price at the market, also have the same even better quality;



Our company:

LED WORLD also has got good reputation from different users, our products are mainly supplied for international market, so offering quality products, competitive price, our enterprise survival in the big market. At any time,we are the best one of your reliable choice.
Its outdoor & indoor commercial advertising LED display, rental use LED display, fixed installation LED display, sports stadium perimeter LED display, mobile trailer LED display, water floating LED display, transparent LED curtain display, digital LED billboard, LED mesh display screen for skyscraper's decoration, arc LED display, LED components & complete LED full color video systems undergo stringent quality control at ISO 9001-certified manufacturing plants.
Through the efforts and collaboration of all employees of the company, the products are exported to Europe, North America, Australia, the Middle East, and the establishment of a stable distribution agents in the respective regions.
Through our efforts, our products have been sold well in Europe, North/South America, Australia, the Middle East and Southeast Asia. Welcome to contact Shenzhen LED World today!
