Product Details:
Payment & Shipping Terms:
|
| Pixel Configuration: | 1R1G1B | Resolution Of Cabinet: | 128x128dots |
|---|---|---|---|
| Average Power Consumption: | <400W/sq.m | LED Component: | SMD2727 |
| Colors: | 256*256*256 | Frame Frequence: | 50/60Hz |
| Working Temperature: | -20ºC~+50ºC±10% | Control Method: | Synchronization |
| Best Viewing Angle: | 140° /140° | Brightness: | >6000cd/sq.m |
| High Light: | led panel rental,waterproof led screen |
||
outdoor rental 640x640mm-P5,P8,P10.pdf
SMD2727 5mm Big Outdoor Rental Led Screen Video Wall Super Clear Vision
Description:
Parameter:
| P5 Outdoor full Color LED Screen Specification | ||||||
| Pixel pitch | 5mm | |||||
| Pixel Configuration | 1R1G1B | |||||
| LED component | SMD2727 | |||||
| Size of module | 320x160mm | |||||
| Resolution of module | 64x32dots | |||||
| Size of cabinet | 640mm x 640mm x 150mm | |||||
| Resolution of cabinet | 128x128dots | |||||
| Material of Cabinet | Die-casting aluminum | |||||
| Weight of Cabinet | 15kgs | |||||
| Brightness | >6000cd/sq.m | |||||
| Density | 40000dots/sq.m | |||||
| Best viewing angle | 140° /140° | |||||
| Best viewing distance | 4-60M | |||||
| Maximum power consumption | <1200W/sq.m | |||||
| Average power consumption | <400W/sq.m | |||||
| Driving method | 1/8 scan | |||||
| Control method | Synchronization | |||||
| Gray scale | 65536 | |||||
| Colors | 256*256*256 | |||||
| Color temperature | 3200-9300k | |||||
| Uniformity | 97% | |||||
| Working voltage | AC220V/110V±10% | |||||
| Working temperature | -20ºC~+50ºC±10% | |||||
| Working humidity | 10% ~ 90% | |||||
| MTBF | 10,000 hours | |||||
| Frame frequence | 50/60Hz | |||||
| Refresh frequence | >1800Hz | |||||
| IP grade | IP65 | |||||
| Life Span | 100,000 hours | |||||
| Data transafer method | RJ45 | |||||
| Pratical standard | CCC TUV-CE ETL etc. | |||||
| Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; | |||||
| Distance(without relay) | Single-mode optic fiber: 10KM | |||||
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. | |||||
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development | |||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||||||
Application:
It can be widely used in exclusive agency,image promotion, bustling commercial center,banks, cafe,chain shop,public facilities,country club,stage,city roads,live broadcase,Highway,massage room,Offices,hospitals,convention center and so on .

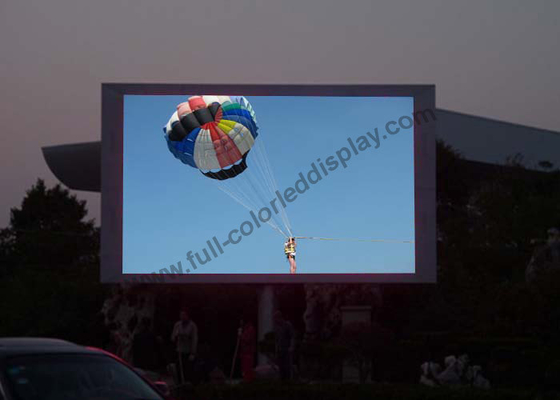

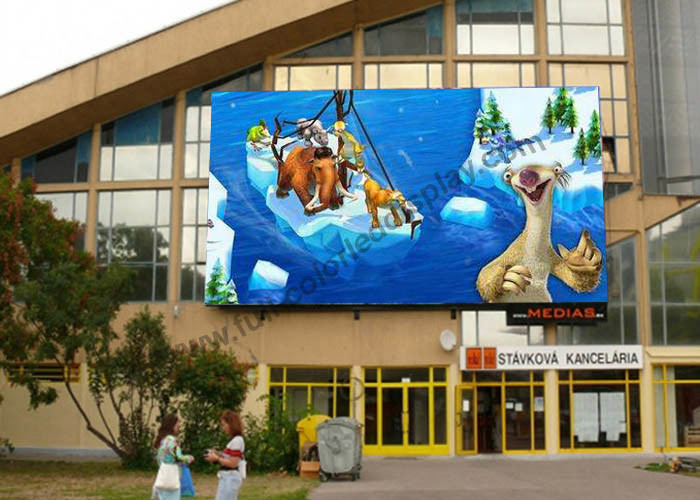

Project case:
