| Systems Operating Platform: | WINDOWS(WINXP,WIN7/8/10), And Interfaces For Secondary Development | Distance(without Relay): | Single-mode Optic Fiber: 10KM |
|---|---|---|---|
| Pratical Standard: | CCC TUV-CE ETL Etc. | Frame Frequence: | 50/60Hz |
| Working Humidity: | 10% ~ 90% | Colors: | 256*256*256 |
| Driving Method: | 1/8 Scan | Uniformity: | 97% |
| IP Grade: | IP65 | Data Transafer Method: | RJ45 |
| High Light: | led advertising board,high brightness led display |
||

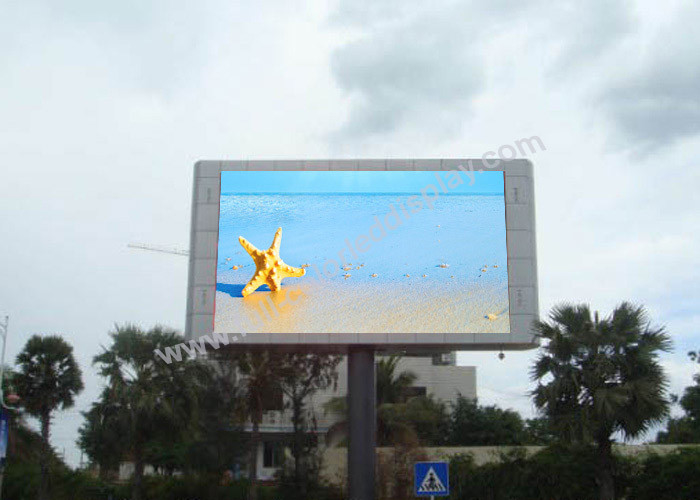

Outdoor series fixed led display_201905211506521.p...P5 SMD2727 large outdoor Fixed LED display screens with nation star encapsulated
P5 large outdoor Fixed LED display screens features:
P5 large outdoor Fixed LED display screens parameters:
| Item | Pixel pitch | 5mm | |||||
| Module | Pixel Configuration | 1R1G1B | |||||
| LED component | SMD2727 (nation star encapsulated) | ||||||
| Size of module | 160mm x 160mm or 320x160mm | ||||||
| Resolution of module | 32x32dots | ||||||
| Cabinet | Size of cabinet | 800mm x 800mmx150mm/640mm x 640mm x 150mm | |||||
| Resolution of cabinet | 160 x 160/128x128dots | ||||||
| Material of Cabinet | Steel Iron material( with back doors) | ||||||
| Weight of Cabinet | 20KGS | ||||||
| Electricity parameter | Brightness | >6000cd/sq.m | |||||
| Density | 40000dots/sq.m | ||||||
| Best viewing angle | 140 /140 | ||||||
| Best viewing distance | 4-60M | ||||||
| Maximum power consumption | <1200W/sq.m | ||||||
| Average power consumption | <400W/sq.m | ||||||
| Driving method | 1/8 scan | ||||||
| Control method | Synchronization | ||||||
| Gray scale | 65536 | ||||||
| Colors | 256*256*256 | ||||||
| Color temperature | 3200-9300k | ||||||
| Uniformity | 97% | ||||||
| Working voltage | AC220V/110V±10% | ||||||
| Working temperature | -20ºC~+50ºC±10% | ||||||
| Working humidity | 10% ~ 90% | ||||||
| MTBF | 10,000 hours | ||||||
| Frame frequence | 50/60Hz | ||||||
| Refresh frequence | >1800Hz | ||||||
| IP grade | IP65 | ||||||
| Life Span | 100,000 hours | ||||||
| Data transafer method | RJ45 | ||||||
| Pratical standard | CCC TUV-CE ETL etc. | ||||||
| Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; | ||||||
| Distance(without relay) | Single-mode optic fiber: 10KM | ||||||
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. | ||||||
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development | ||||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||||||
Our service:

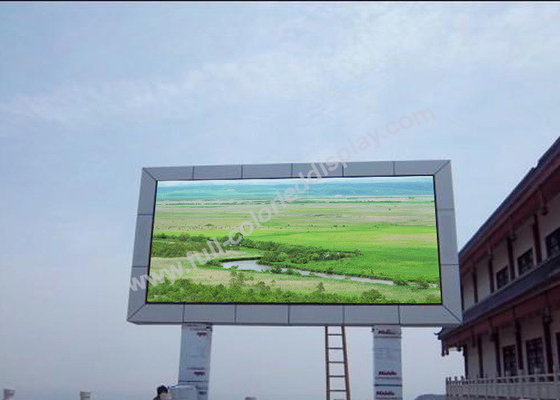

Project case:
