P6.25 IP65 Outdoor Led Panel Rental Circuit Board With High Brightness

China P6.25 IP65 Outdoor Led Panel Rental Circuit Board With High Brightness supplier
P6.25 IP65 Outdoor Led Panel Rental Circuit Board With High Brightness supplier P6.25 IP65 Outdoor Led Panel Rental Circuit Board With High Brightness supplier P6.25 IP65 Outdoor Led Panel Rental Circuit Board With High Brightness supplier

Large Image :  P6.25 IP65 Outdoor Led Panel Rental Circuit Board With High Brightness

Product Details:

Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE,RoHS,FCC,CCC
Model Number: LW-RO 6.25

Payment & Shipping Terms:

Minimum Order Quantity: 1 square meter
Price: negotiable
Packaging Details: Carton/Plywood case/Flight case etc.
Delivery Time: 12~20 working days after deposit received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3000 sqm/month
Contact Now
Detailed Product Description
Maintenance: Rear System Working Environment Humidity: 10%-90%RH
IP Rating: IP65(front) /IP54 (back) Installation Method: Fixed / Hung Up
Driver Method: 1/10 Scan Pixel Configuration: 1R1G1B
Encapsulation: SMD3535 Cabinets Size(W*H*T/mm): 500*500/1000*500
Cabinets Material: Die-cast Aluminum Driver IC: MBI5124

indoor&outdoor rental 500x500mm-P3.91,P4.81,P5.95,...

P6.25 SMD3535 Outdoor Rental LED Display circuit board with high brightness



P6.25 Outdoor Rental LED Display circuit board feature:

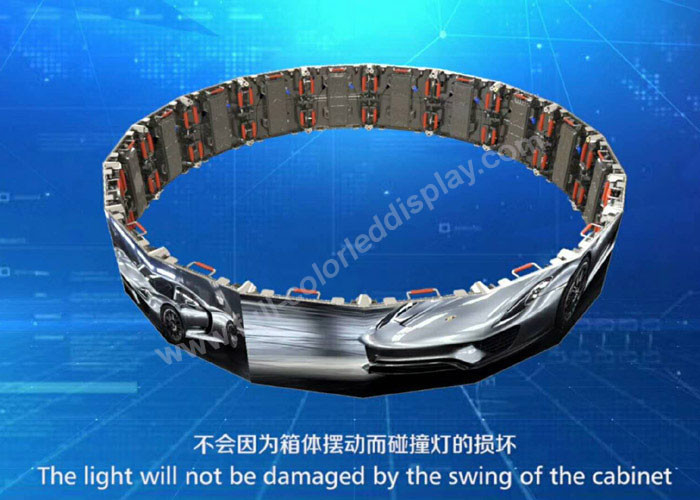

  1. Curved new design P6.25 rental led display outdoor with new innovation,36 pcs cabinet to be A circuit;
  2. High refresh rate, HD video with vivid pictures;
  3. It has big viewing angle , can reach 140 degree horizontally and vertically ;
  4. The ultra-light weight cabinet made is aluminum-magnesium alloy which gives it extra strength;
  5. Easy maintenance,the single cabinet can be individually removed from the body of the screen for replacement/repair;
  6. Rental die-cast aluminum forming,with the advantages of product strength,precision and high flatness of the entire screen;
  7. Excellent waterproof standard, IP65 front and IP54 at the rear side;
  8. Flight case package,easier to take the LED display to different places according to your request;



P6.25 Outdoor Rental LED Display circuit board specification:

  1. Pixel Pitch:6.25mm, Pixel Configuration:1R1G1B SMD 3-in-1, Pixel Density:25,600 dots/sqm, Module Size:250x250mm,Pixels/Module40x40;
  2. Two cabinet size available:500x500mm / 500x1000mm ;
  3. LED Encapsulation Pixel Configuration:SMD3535 1R1G1B (first selection LEDs, to ensure color uniformity);
  4. Working Voltage:AC110V/220V ±15% ;
  5. LED display a white screen test playing time is not less than 24 hours;

P6.25 Outdoor Rental LED Display circuit board parameter:

P6.25 led display lamps:

No. Parameter Value
led type brightness Wave Length H/V Visual angle
1 Red LED SMD3535 600-800 MCD 620-625nm 140°/120°
2 Green LED SMD3535 1800-2000 MCD 520-525nm 140°/120°
3 Blue LED SMD3535 400- 600 MCD 470-475nm 140°/120°



P6.25 outdoor led display module:

Pitch Outdoor
P6.25mm
Encapsulation SMD3535
Pixel Configuration 1R1G1B
Driver Method 1/10
Module Size(H*W/mm) 250*250/
250*500
Module Resolution(H*W/dots) 40*40/
40*80



P6.25 outdoor led display cabinet:

Cabinets Size(W*H*T/mm) 500*500/
1000*500
Unit Cabinet Weight(kg) 7.8kg/12kg
Pixel Density(dots/M2) 25600
Cabinets material Die-cast aluminum



Electricity parameter:

Average Power Consumption 260
(Watt/M2)
Max. Power Consumption 750
(Watt/M2)
Brightness(CD/M2) ≥5500
Driver IC MBI5124
IP Rating IP65(front) /IP54 (back)
Installation Method Fixed / Hung up
View Angle 1600(H)/ 1400(V)
Refresh Rate ≥1920Hz
Frame Frequency ≥60Hz
Voltage Input AC110V/220V±15% 40~65HZ
Operating Temperature -20ºC~60ºC ,storage for :-30oC~+90oC
Maintenance Rear
System Working Environment Humidity 10%-90%RH
Life Span(Hours) ≥55,000Hours
Color Temperature 5600K±500
Power Supply G-energy with CE/UL proof
Control system support Linsn/ Novastar
Compliant standard CE, CCC, UL



After sale service:

  1. We promisea life time follow-up service for allthe equipment supply by ourcompany;
  2. We provide customer service through Skype, phone or email, provide video or drawing to solve customer's problem;
  3. We provide remote control service through internet to achieve real time service, which will short the customer problem solving;
