Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3mm | LED Lamp: | SMD2121 |
|---|---|---|---|
| Module size: | L192*H192*T13 | Pixels Density: | 111111 Dots/m2 |
| Pixel resolution: | 64x64=4096 | Pixel Configuration: | 1R1G1B |
| Scan Mode: | 1/32 Scan | Port type: | HUB75 |
| Module Weight: | 0.35kg | Module Max.Consumption: | ≤ 20W |
| High Light: | led full color screen,large led display screen |
||

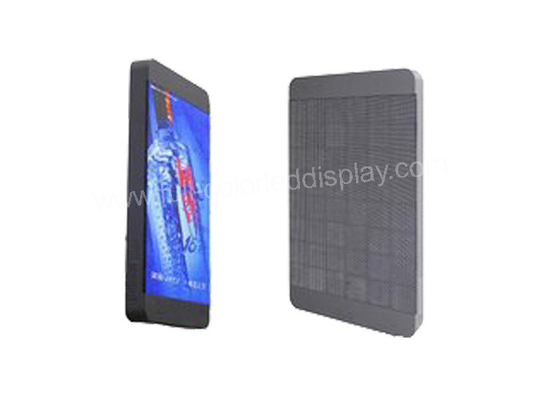

Full color LED HD light screen with single pole for road advertising
HD Light Screen With Single Pole Features:
HD Light Screen With Single Pole Parameters:
| Technical Items | Unit | Values | |
| Pixel pitch | mm | 3 | |
| LED Lamp | SMD | SMD2121 | |
| Module size | mm | L192*H192*T13 | |
| Pixels density | /m2 | 111111 | |
| Pixel resolution | dots | 64x64=4096 | |
| Pixel configuration | R/G/B | 1,1,1 | |
| Drive type | Constant current | ||
| Scan mode | 1/32 scan | ||
| Port type | HUB75 | ||
| Module weight | KG | 0.35 | |
| Module working voltage | 220VAC±15% | ||
| Module Max.Consumption | W | ≤ 20 | |
Our Service:
Project Case:
Application occasions:
It can be widely used in business street high-speed way tourist attractions and so on
