Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 4mm | LED Lamp: | SMD2727 |
|---|---|---|---|
| Module size: | 256mm*128mm | Pixels Density: | 62500 Dots/m2 |
| Pixel resolution: | 64x32=2048 | Pixel Configuration: | 1R1G1B |
| Scan Mode: | 1/16 Scan | Port type: | HUB75 |
| Module Weight: | 0.35kg | Module Max.Consumption: | ≤ 20W |
| High Light: | led outdoor advertising screens,advertising led display screen |
||

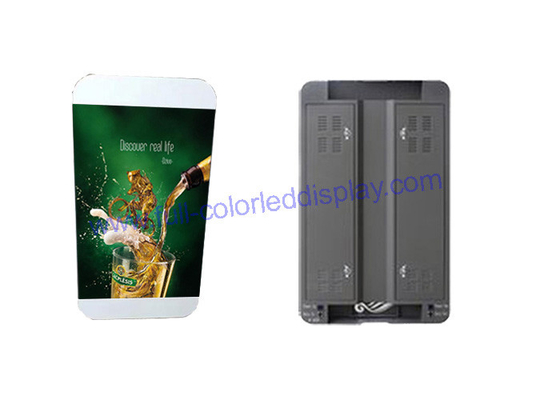

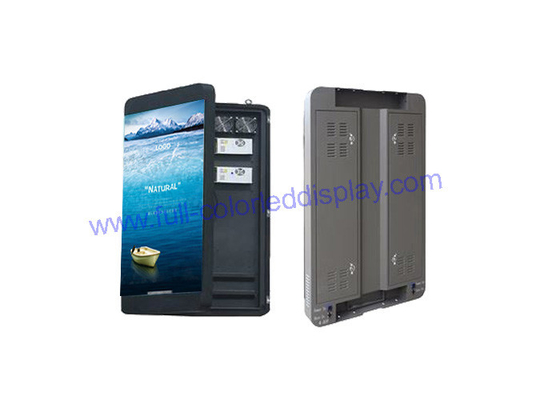

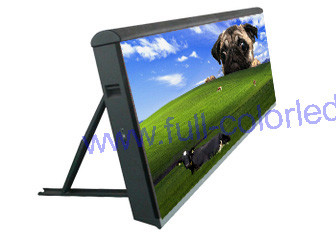

Intelligent advertising digital media sign screen display with single pole
Digital Screen With Single Pole Features:
Digital Screen With Single Pole Parameters:
| Light Pole LED Display screen Parameter | ||
| Viewing angle | degree | 120o |
| Best viewing distance | m | 3-45 |
| Drive device | 2016/5020/20167 | |
| Module number per squire meter | PCS | 27.13 |
| Maximum power Consumption | W/ M2 | 1100 |
| Frame Frequency | HZ | ≥60 |
| Refresh frequency | HZ | ≥2000 |
| Brightness of white balance | CD/m2 | ≥1200 |
| Working environmen t temperature |
0C | -10~60 |
| Working environment humidity | RH | 10%~70% |
| Display working voltage |
VAC | AC46~54HZ,220V±15%/110V±15% |
| Colour temperature | 9500K-11500K | |
| Gray degree | ≥16.7M | |
| Input signal | RF S-Video RGB etc | |
| Control system | PCTV non-linearity card,DVI display card,Linsn control system | |
| Mean free error time | Hours | >5000 |
| Lifetime | Hours | 100000 |
| Lamp failure frequency | <0.0001 | |
| Anti-jamming | IEC801 | |
| Safety | GB4793 | |
| Resist the electricity | No breakdown by 1500V last 1min | |
| Weight | KG/ M2 | 40(standard steel box) |
| IP Grade | The back IP40,The front IP50 | |
| Steel box size | mm | L576 x W576 x 80 |
Our Service:
Application occasions:
It can be widely used in business street high-speed way tourist attractions and so on
