Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 4mm | Material: | Iron And Alumium |
|---|---|---|---|
| Fresh Rate: | 1200HZ | Display Capability: | Text,graph,video |
| Waterproof: | IP65 | Brightness: | 5500 Nits |
| Control: | 3G , 4G , WIFI , USB | Resolution: | 1080P |
| Receiving: | Synchronous | Working Humidity: | 10%~90% RH |
| High Light: | led advertising board,led outdoor advertising screens |
||

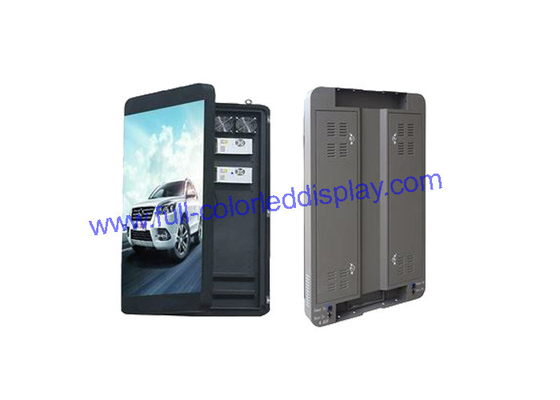

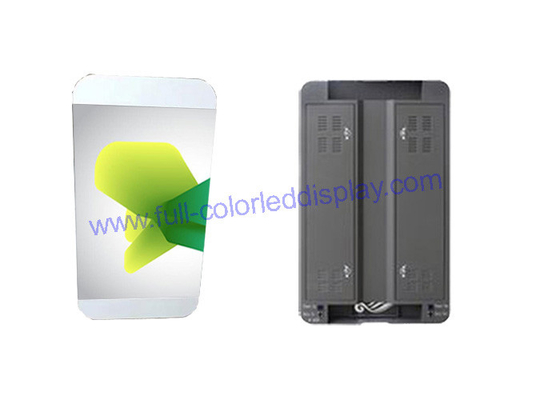

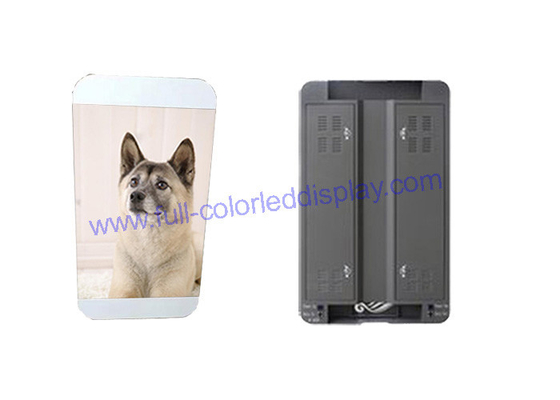

P4 256 X 128 mm pole mounted led screen panel display with WIFI /3G/4G /clound control
P4 pole mounted led screen Features:
P4 pole mounted led screen Parameters:
| Item | P4 Outdoor LED display |
| Pixel Configuration | 1R1G1B |
| Physics Distance Between Pixels | 4mm |
| Physics Pixel Density | 62,500 Pixel/m2 |
| Module Size (W x H) | 256mmx128mm |
| Physics Pixel / Module | 64x32=1024 |
| Cabinet Size (W x H) | 512mmx512mm |
| Physics Pixel / Cabinet | 128x128=9216 |
| Cabinet Weight | 12kg |
| Brightness | 5000cd/m2 |
| Viewing Distance | >4m |
| Power Consumption (W/m2) | MAX 1300; Average 260 |
| Driver Mode | 1/8 scan |
| Led Life | 100,000 hours |
| Supply Voltage | AC220V/60HZ |
| Operating Temperature | -20ºC~+50ºC |
| Operating Humidity | 10%-90% |
| Storage Temperature | -40ºC~+60ºC |
| Viewing Angle | Horizontal:120°; Vertical: 120° |
| Grey Scale | Red, green, blue each 16k |
| Display Colors | 4096 Billion |
| Refresh Rate | 300HZ-3000HZ adjustable |
| IP Rating | Front IP65 waterproof dust-proof |
| Display Capability | Video, Graphic, Text, flash |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
P4 pole mounted led screen introduce:
The new P4 light pole LED display has 3G transmission, group send group receive, synchronous broadcast, and other characteristics, suitable for highway, street on both sides of the light pole installation use. Due to the characteristics of synchronous reception and playback of the road light pole screen, it is always accompanied by street light screen playing content no matter how far the vehicle is.Light pole screen not only has unique advantages in road guidance, road condition broadcast, information release, advertising promotion and other aspects, but also plays a considerable role in relieving the fatigue driving of automobile drivers on the highway.
