| Transfer Board: | Hub75 | Working Environment Humidity: | 10%~90% |
|---|---|---|---|
| Working Temperature: | -20°C~+50 °C | Pixel Pitch: | 2.5 Mm |
| Brightness: | 800-1000 Cd/M2 | Module Size: | 160mm X 80mm |
| Control Method: | Synchronize With The Video Source | Discrete Control Point: | ≤0.1‰ |
| Number Of Colors: | 16bit | Power: | DC 5 V |
| High Light: | Led Screen Modules,Waterproof Led Module |
||
Outdoor / Indoor full color or single color 2.5mm small pixel pitch led module for special size 80mm X 160mm
2.5mm small pixel pitch led module feature:
The smallest led module at present ,module size only just 80mm X 160mm
High definition, high density, high resolution and integrated encapsulation
SMD 3 in 1 led encapsulation ensure the wide viewing angle
the small pixel pitch can be achievd COB packaging technology
SMD2121 led lamp have good adjusting ability
P2.5 small pixel pitch led module parameter:
| No. | Parameter | Value | ||
| 1 | Red LED | SMD2121 | 120-140 MCD | 620-625nm |
| 2 | Green LED | SMD2121 | 360-435 MCD | 520-525nm |
| 3 | Blue LED | SMD2121 | 80- 100 MCD | 470-475nm |
| 4 | Pixel pitch | 2.5 mm | 3mm | 4mm |
| 5 | Brightness | 800-1000 cd/M2 | 1200 cd/M2 | 1200 cd/M2 |
| 6 | Module size | 160mm x 160mm | 192mm x 192mm | 256mm x128mm |
| 7 | Drive model | 1/32 scan | 1/32 scan | 1/16 scan |
| 8 | Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| 9 | Module Resolution | 64 dots x 64 dots | 64 dots x 64 dots | 64 dots x 32 dots |
| 10 | Module pixel | 4096 pixel | 4096 pixel | 2048 pixel |
| 11 | Power | DC 5 v | ||
| 12 | Number of colors | 16bit | ||
| 13 | Discrete control point | ≤0.1‰ | ||
| 14 | Control method | Synchronize with the video source | ||
| 15 | Working temperature | -20°C~+50 °C | ||
| 16 | H / V viewing angle | 140°/120° | ||
| 17 | Working environment humidity | 10%~90% | ||
| 18 | Transfer board | hub75 | ||
| 19 | Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||

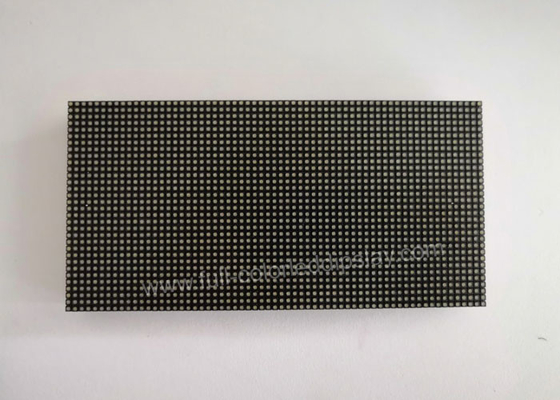

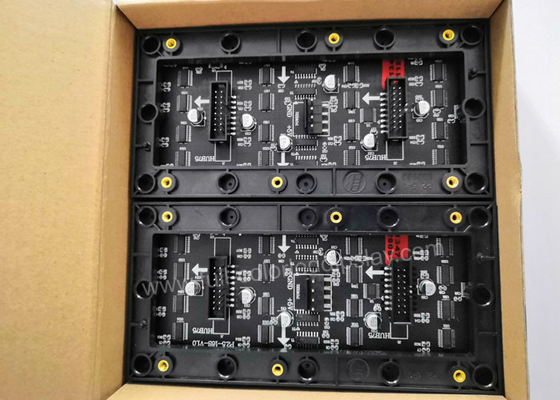

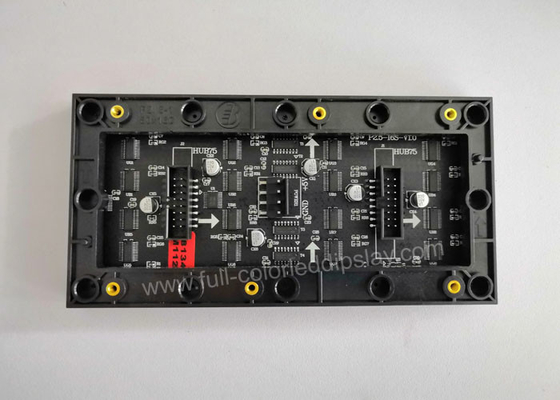

P2.5 small pixel pitch led module details:
