Product Details:
Payment & Shipping Terms:
|
| Screen Dimension: | Customized | Tube Chip Color: | Full Color |
|---|---|---|---|
| Usage: | Semi-outdoor | Display Function: | Animation |
| Pixels: | 37.5mm | Brightness: | 7500cd/sqm |
| Warranty: | 2 Years | ||
| High Light: | transparent led screen display,transparent led display screen |
||

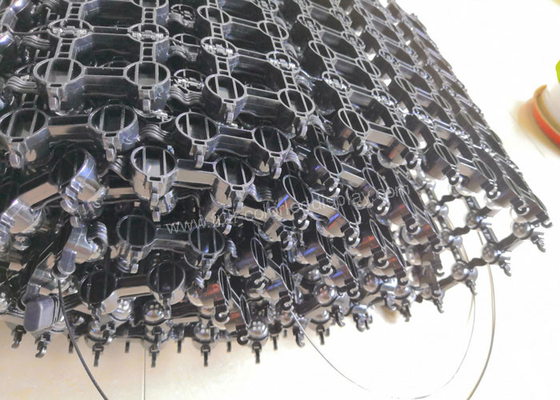

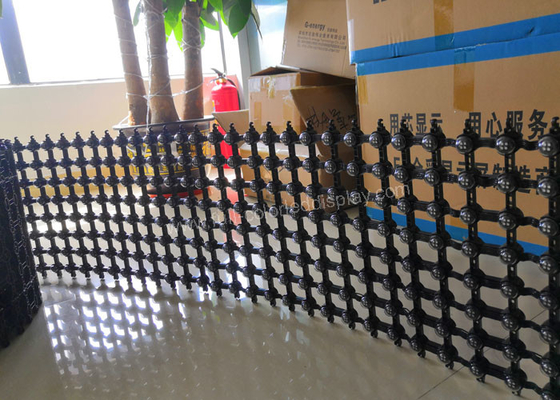

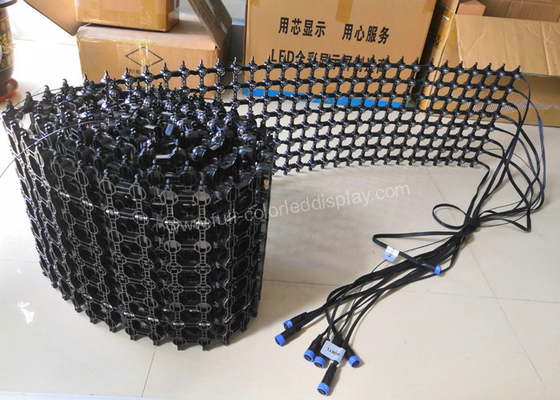

Transparent P37.5 flexible mesh led screen can use in park
P37.5 flexible mesh led screen feature:
Fast inter-panel locks make it quick and easy to set up and dismantle large-scaled screen, no tools required, It is quite easy and saving time for the tour shows. It also becomes easy to maintain if the pixels failures.
break traditional led screen installation and place limited , mesh led screen can be flexible in any place and fast installation
high transparence, permeation ratio can up to 60%-80% . almost have effect in glass building
overoll comsumption is also relativly low , so you don't need to worry about the electricity cost
Adopt natural ventilation and heat dissipation, but relatively high temperature rise, strict requirements on the installation environment, advantage is the integrated design of control box and installation structure, installation space is small.
P37.5 flexible mesh led screen parameter:
| Flexible Mesh LED curtain screen | |
| Model Name | LW-FM37.5 |
| Pixel Pitch | 37.5mm / 56.25mm (pixel pitch can be customized) |
| Pixel Configuration | 1*SMD3535 |
| Panel Size | 300*4800 mm / 450*7200mm (size can be customized) |
| Panel Resolution | 8*128 |
| Scan Mode | Static |
| Panel Weight | 4kg /sqm ; 2.4kg/sqm |
| Refresh Rate | 1000 - 3000 Hz |
| Max Power Consumption | 280 W/ Square meter; 100 W/ Square meter |
| Humidity | 10~90%RH |
| Brightness | 2000 nits / 800 nits (Nationstar SMD-RS-3535MWAM) |
| IP Rating(Front/Rear) | IP66 |
| Input Voltage | 7.5V DC |
| Transparency Rate | 70% / 80% |
| Color Processing | 16 bit |
| Viewing Angle(H/V) | 140°/110° |
| Operating Temperature | -40~45°C |
| Main Power Source | AC 100~240V; 50/60Hz |
| Life Time | 100,000 Hours |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
