Media Building Transparent Led Curtain Display P10.4 With Brushed Aluminum Cabinet

China Media Building Transparent Led Curtain Display P10.4 With Brushed Aluminum Cabinet supplier
Media Building Transparent Led Curtain Display P10.4 With Brushed Aluminum Cabinet supplier Media Building Transparent Led Curtain Display P10.4 With Brushed Aluminum Cabinet supplier Media Building Transparent Led Curtain Display P10.4 With Brushed Aluminum Cabinet supplier

Large Image :  Media Building Transparent Led Curtain Display P10.4 With Brushed Aluminum Cabinet

Product Details:

Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE, ROHS , CCC , FCC
Model Number: LW-T10.4

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: wooden case , flight case , paper carton
Delivery Time: 7- 18 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pcs/month
Contact Now
Detailed Product Description
Screen Dimension: 1000x1500mm Tube Chip Color: Full Color
Usage: Indoor Display Function: Video,Graphics
Pixels: 10.4mm Color: 1R1G1B
Viewing Angle: 160H/160V

P10.4 led transparent display with Brushed aluminum cabinet for media building



P10.4 Transparent led display feature:

super long lifetime: can up to 50000hours,

It is often used in architectural media and interactive media scenes

Very low power consumption, superior energy saving effect

This transparent LED glass is extremely thin, only the thickness of ordinary glass

Convenient installation, permeability of 99%, light transmittance ≥80%

without heat dissipation and strong weather resistance

with the advantage of waterproof and anti-impact





P10.4 Transparent led display parameter:



P10.4 SMD3510 Indoor full Color LED Screen Specification
Pixel pitch 10.4mm
Size of module 500mm x 1000 mm
Resolution of module 48 x 96 dots
Weight of Cabinet 10.5kgs
Brightness 5500cd/sq.m
Density 9216dots/sq.m
Maximum power consumption <800W/sq.m
Best viewing angle 140°H 140°V
Pixel Configuration 1R1G1B
Best viewing distance 10-100M
Driving method 1/3 scan
Control method Synchronization/Asynchronization
MTBF >10,000 hours
Effectivce Communication Unshielded twisted pair net line transmission distance:100M,
Gray scale 65536
Working temperature -20ºC~+50ºC±10%
Life Span 100,000hours
Refresh frequence >1920Hz
Frame frequence 50/60Hz
Data transafer method RJ45
Color temperature 6500k
Working voltage AC220V/110V±10%
IP grade IP65
Distance(without relay) max transmission distance:130M; Multi-mode optic fiber: 500M;
  Single-mode optic fiber: 10KM
Systems operating platform WINDOWS(WINXP,WIN7/8), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

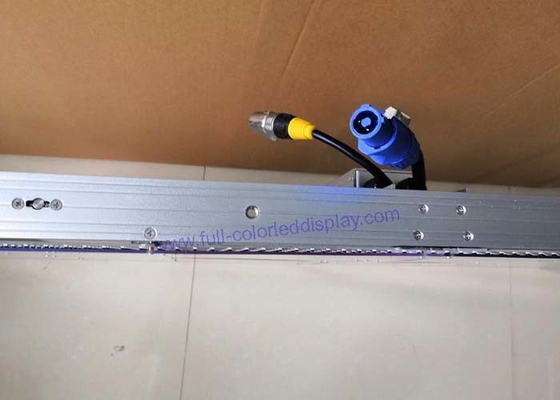

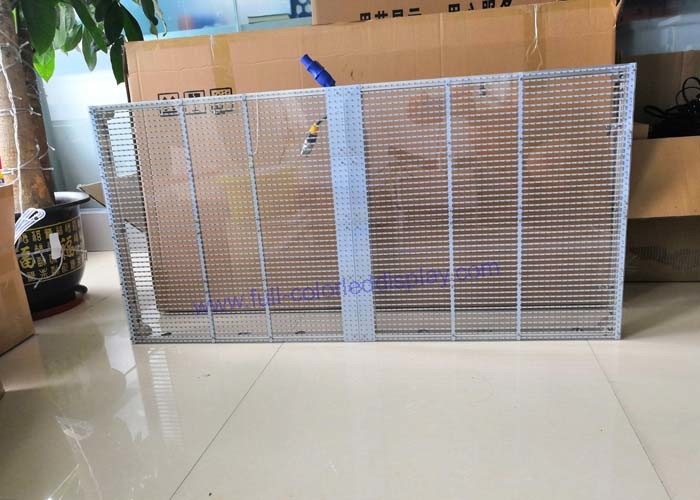

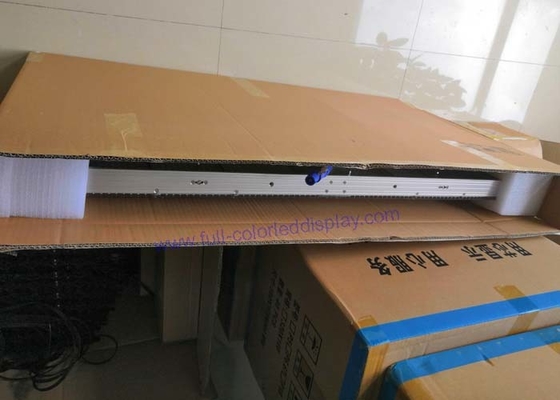

Product details:
