P3 240x120mm Soft Full Color LED Display Module Synchronization Control Method

P3 240x120mm Soft Full Color LED Display Module Synchronization Control Method
P3 240x120mm Soft Full Color LED Display Module Synchronization Control Method P3 240x120mm Soft Full Color LED Display Module Synchronization Control Method P3 240x120mm Soft Full Color LED Display Module Synchronization Control Method

Large Image :  P3 240x120mm Soft Full Color LED Display Module Synchronization Control Method

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE, ROHS , CCC , FCC
Model Number: LW-MF3
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: wooden case , flight case , paper carton
Delivery Time: 7- 18 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pcs/month
Detailed Product Description
Pixel Pitch: 3.0 Mm LED Component: SMD1515
Driving Method: 1/20 Scan Control Method: Synchronization
Gray Scale: 65536 Color Temperature: 3200-9300k
Uniformity: 97% Working Voltage: AC220V/110V±10%
Working Temperature: -20ºC~+50ºC±10% Working Humidity: 10% ~ 90%
High Light:

Led Screen Modules

,

Waterproof Led Module

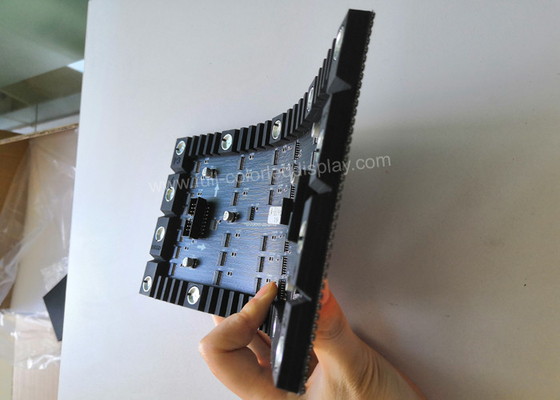

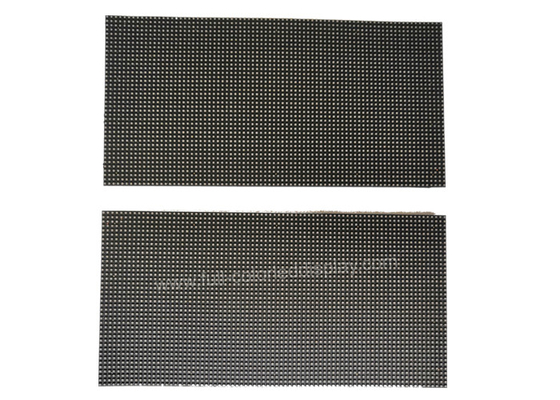

Indoor full color P3 240 x 120 mm soft led modules for flexible led display screen





P3 soft led module Features:

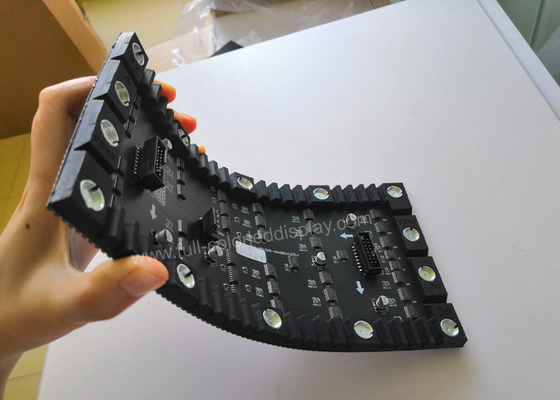

Adopt flexible PCB and bottom shell mask make the module particularly soft, can achieve 120 degrees of folding

The flexible module is equipped with high strength magnetic core connection device

Adopt FPC circuit board made of flexible insulation substrate

Durable soft rubber module, anti-static electric

Dot to dot maintain, easy and quick maintenance, save maintenance cost


P3 soft led module Parameters:



P3 SMD1515 Indoor full Color soft LED Module
Pixel pitch 3.0 mm
Pixel Configuration 1R1G1B
LED component SMD1515
Size of module 240mm x 120mm x 1.6mm (thickness)
Resolution of module 80x40 pixels
Brightness >1000cd/sq.m
Density 111111 dots/sq.m
Best viewing angle 160° /120°
Best viewing distance 3-30M
Maximum power consumption 25W/module
Driving method 1/20 scan
Control method Synchronization
Gray scale 65536
Color temperature 3200-9300k
Uniformity 97%
Working voltage AC220V/110V±10%
Working temperature -20ºC~+50ºC±10%
Working humidity 10% ~ 90%
MTBF 10,000 hours
Frame frequence 50/60Hz
Refresh frequence >1920Hz
IP grade IP31
Life Span 50,000 hours
Data transafer method RJ45
Pratical standard CCC TUV-CE ETL etc.
Effectivce Communication Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay) Single-mode optic fiber: 10KM
Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.




Product Details:



P3 240x120mm Soft Full Color LED Display Module Synchronization Control Method 0



Why Choose Us:



  • Aluminum backcover is good for heat dissipation no need a separate fan inside it is very quiet for some events that requests very quiet environment;
  • Strong R D team ensures products with nice features;
  • We have fully automatic production lines and have more than 120 employees;
  • HIgh refresh rate guarantee no scaning lines when taken photo or video;
  • Innovative LED Screen Manufacturer for indoor outdoor rental events and fixed projects;
