Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 3.91 Mm | Module Size: | L250mm X H250mm X 22mm |
|---|---|---|---|
| Panel Size: | 500mm X 500mm X 78mm | Physical Density: | 65410 Dots / M2 |
| Viewing Distance: | 4m—40m | Refresh Rate: | 1500HZ, Adjustable By Software |
| Color Temperature: | R.G.B Brightness 256 Level Adjustable | LED Encapsulation: | SMD2121 |
| Module Weight: | 0.5kg | Module Working Voltage: | DC 5V |
| Module Consumption: | 30W | ||
| High Light: | led screen hire,waterproof led screen |
||
3.91mm pixel pitch outdoor indoor Rental led display Sign Board With fast powerbox
3.91mm pixel Rental led display description:
3.91mm pixel Rental led display parameter:
| Item | HD Outdoor Full Color LED display Specification | |
| Specification | RO4.8 | RO3.91 |
| Module size(mm) | 500*250 | 250*250 |
| module resolution(dot) | 104*52 | 64*64 |
| LED type | SMD2828 | SMD2623/SMD2424 |
| Brightness(cd/m2) | 5000-5500 | 5000-5500 |
| Color temperature(K) | 6500 | 6500 |
| Horizonal view angle(°) | 140(+70/-70) | 140(+70/-70) |
| Vertical view angle (°) | 140(+70/-70) | 140(+70/-70) |
| Cabinet(WxHxD)(mm) | 500x500x50 | 500x500x96 |
| Cabinet area() | 0.25 | 0.25 |
| Cabinet weight(kg) | 8.5 | 8.5 |
| IP level(rear/front) | IP65/IP65 | IP65/IP65 |
| Working temperature(ºC) | -20 ~+50 | -20 ~+50 |
| Working humidity | 10% ~ 90% | 10% ~ 90% |
| Storage temperature(ºC) | -40~+60 | -40~+60 |
| Pixel configuration(R/G/B | SMD 3 in 1 | SMD 3 in 1 |
| Pixel pictch(mm) | 4.8 | 3.91 |
| Cabinet resolution(dot) | 104×104 | 128×128 |
| Resolution(dot/) | 43264 | 65536 |
| Optimal videw distance(m) | 4 | 3 |
| Color | 10.7billion | 10.7billion |
| Gray level | Each color65536 | Each color65536 |
| Brightness control range | 100 | 100 |
| Signal processing level | 16 | 10 |
| Frame rate(HZ) | 60 | 60 |
| Fresh rate(HZ0 | 1920 | 1920 |
| Driving mode | 1/13scan | 1/16 scan |
| Driving voltage(V) | 4.5~5.5 | 4.5~5.5 |
| Input voltage(V) | 110~220@50-60HZ | 110~220@50-60HZ |
| Max input current(A) | 1 | 1 |
| Power consumption(W/)(max/everage) | 720/288 | 720/280 |
| Service life(hours)(<50%brightness) | ≥100000 | ≥100000 |
| Module eveness | <5% | <5% |
| Defects rate | <0.0001 | <0.0001 |
| Ground leakage current(mA) | <2 | <2 |
| Red LEDs wave length(nm) | 620-625 | 620-625 |
| Green LEDs wave length(nm) | 524-529 | 520-525 |
| Blue LEDs wave length(nm) | 466-471 | 470-475 |
| Signal mode(with Video processor) | VGA,DVI,RGBHV,PbPr(HDTV),Composite signal,S-Video,TV | VGA,DVI,RGBHV,PbPr(HDTV),Composite signal,S-Video,TV |
| Signal connection | HSYV transmission | HSYV transmission |
| Control system | Windows(8/7/XP) | Windows(8/7/XP) |
| Control distance | Cable <100M, multi-fiber <500m,single-fiber>10KM | Cable <100M, multi-fiber <500m,single-fiber>10KM |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||

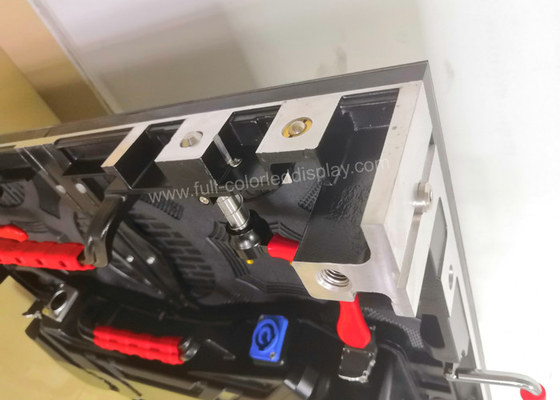

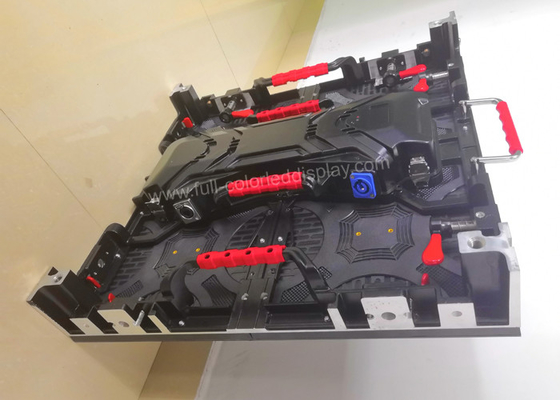

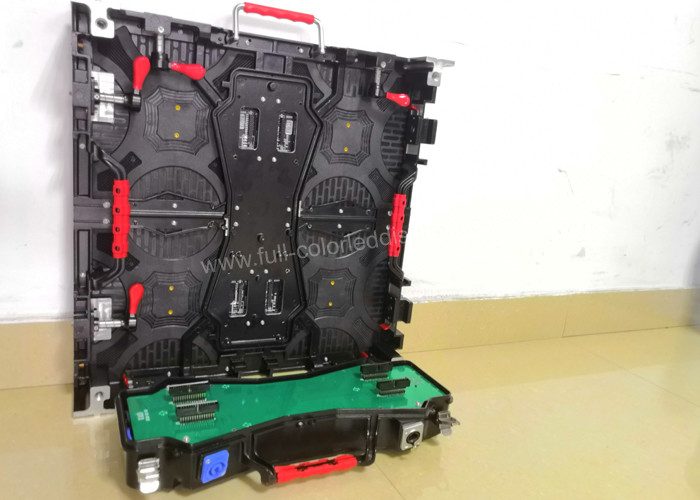

3.91mm pixel Rental led display details:
