Product Details:
Payment & Shipping Terms:
|
Driving Ic: | MBI 5124 | Scan Mode: | 1/8 Scan |
---|---|---|---|
Module Size: | 500mm X 1000mm | Pixel Configuration: | SMD 3in1 |
Screen Dimension: | Customized | Brightness: | 4000 Cd/m2 |
Pixel Density (pixels/m2): | 32768 | Transparency: | 85% |
High Light: | transparent led screen display,transparent led curtain display |

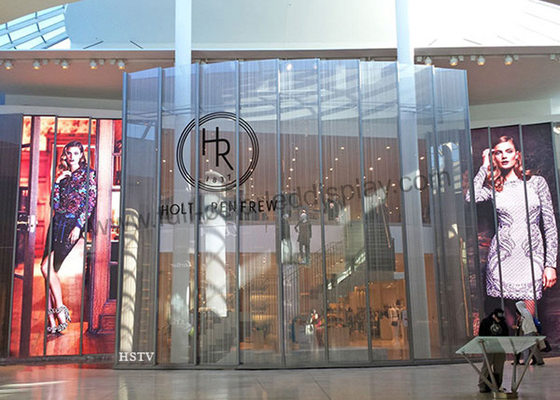

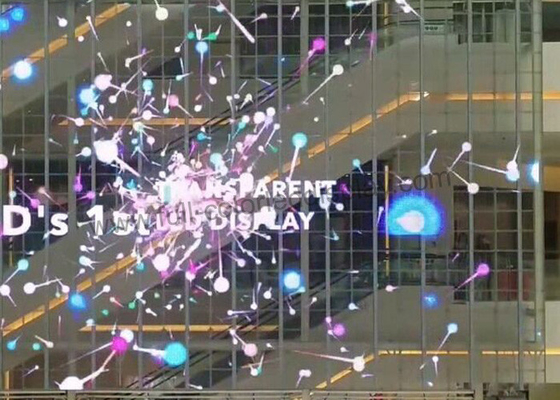

High Brightness Transparent LED Display for Window Video Wall (P3.9 P7.8)
P3.91 Rental Transparency LED Display Feature:
P3.91 Rental Transparency LED Display Parameter:
Transparent LED screen Parameters | ||
Model | LW-T3 | LW-T7 |
Pixel Pitch(mm) | 3.9 × 7.8 | 7.8 × 7.8 |
Module size(mm) | 1000 × 500 | 1000 × 500 |
Pixel(pixels/pcs) | 256 × 64 | 128 × 64 |
Pixel density (pixels/m2) | 32768 | 16384 |
Pixel configuration | SMD 3in1 | SMD 3in1 |
Video frame rate | ||
Brightness(cd/m2) | 4000 | 2500 |
Horizontal viewing angle | 160° | 160° |
Vertical viewing angle | 120° | 120° |
transparency | 85% | 85% |
Gray scale | 16384 | 16384 |
Driving method | 1/8 scan | 1/8 scan |
Display refresh rate | 3840 | 3840 |
Video frame rate | 60 | 60 |
Operation state | ||
Input power(max)(W/m2) | 400 | 400 |
Input power(nor)(W/m2) | 200 | 150 |
Input voltage (V) | 100 ~ 240V AC, 47 ~ 63Hz | |
Performance temp | -20 ~ 50ºC | |
Storage temp | -40 ~ 80ºC | |
Humidity operating | 10%~90%RH | |
Lifetime(hours) | ≥10000 | |
Lifespan (hours) | 100000 | |
Discrete out of control | ≤0.0001, | |
Continuous out of control | 0 | |
Scotoma rate | ≤0.0001, | |
Protect lvl(Front/Reverse) | IP42 | |
Product features | ||
Installation | Lifting / Vertical loading | |
Border bevel | 45° | |
Arc splicing | ≥90° | |
weight(kg/m2) | 10 | |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
P3.91 Rental Transparency LED Display aging:
