P6.25 Dance Floor Indoor Rental Led Display Interative High Brightness Radar System

P6.25 Dance Floor Indoor Rental Led Display Interative High Brightness Radar System
P6.25 Dance Floor Indoor Rental Led Display Interative High Brightness Radar System P6.25 Dance Floor Indoor Rental Led Display Interative High Brightness Radar System P6.25 Dance Floor Indoor Rental Led Display Interative High Brightness Radar System

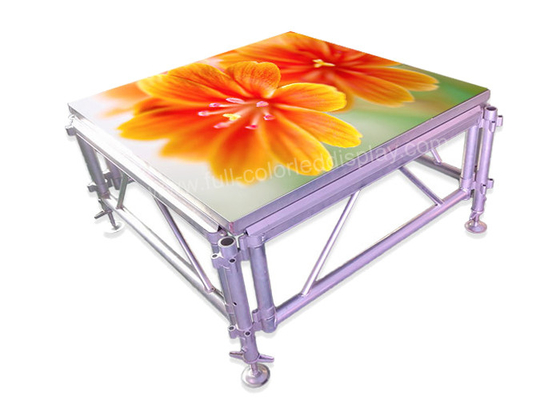

Large Image :  P6.25 Dance Floor Indoor Rental Led Display Interative High Brightness Radar System

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE, ROHS , CCC , FCC
Model Number: LW-OF6.25
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: Negotiation
Packaging Details: Carton/wooden case/Flight case etc.
Delivery Time: 7- 18 working days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability: 5,000 square meters per month
Detailed Product Description
Ray Scale: 16 Bit Colours: 281 Trillion
Contrast Ratio: 4,000 : 1 Average Power Consumption: 300 W / M²
Max Power Consumption: 880 W / M² Operating Temp/Humidity: -10ºC-60ºC / 10%-60%
Refresh Rate: >1,920 Hz Brightness: 4,500 Nits
High Light:

Stage Led Screen

,

Led Stage Backdrop Screen

P6.25 Interative High Brightness Radar System Indoor Rental Dance Floor LED Display





The Development of Floor LED Display:



The huge and clear live video of the match gives people an immersive audio-visual feast. The outdoor LED floor tile screen is a novel digital display device specially customized for the use of the indoor exhibition hall stage party.Flexible modular design, can achieve the floor, ceiling, T platform and other applications.





Floor LED Display Feature:



  • High flatness surface ,The error between module and module is only 0.2mm, when people see the panel or dance in the panel as a a complete board, just like dance in the floor.
  • Waterproof, We use the high quality material, high-strength tempered glass mask, make the protection level reached IP65, high waterproof and dustproof.
  • Fast and flexible installation: no direct installation or rail installation can be used.



Floor LED Display Parameter:



LED Floor Display
  LW-3 LW-5 LW-6 LW-8
Pixel Pitch 3.91 mm 5.2 mm 6.25 mm 8.928 mm
Pixel Configuration SMD 1921 SMD 1921 SMD 2727 SMD 3528
Pixel Density 65,536 pixels/m² 36,864 pixels/m² 25,600 pixels/m² 25,600 pixels/m²
Module Dimensions (W × H) (mm) 250 × 250 250 × 250 250 × 250 250 × 250
Panel Dimensions (mm) 500 × 1000 500 × 1000 500 × 1000 500 × 1000
NO.of Modules Per Panel (W × H) 2 × 4 2 × 4 2 × 4 2 × 4
Physical Resolution of Module (W×H)  64 x 64 48 x 48 40 x 40 28 x 28
Physical Resolution of Panel (W × H) 128 x 256 96 x 192 80 x 160 56 x 112
Panel Material Aluminum Aluminum Aluminum Aluminum
Single Cabinet Weight 20 kg/panel 25 kg/panel 24 kg/panel 25 kg/panel
ray Scale 16 bit 16 bit 16 bit 16 bit
Colours 281 trillion 281 trillion 281 trillion 281 trillion
Contrast Ratio 4,000 : 1 4,000 : 1 4,000 : 1 4,000 : 1
Average Power Consumption 300 W / m² 300 W / m² 300 W / m² 300 W / m²
Max Power Consumption 880 W / m² 880 W / m² 880 W / m² 880 W / m²
Operating Temp/Humidity -10ºC-60ºC / 10%-60% -10ºC-60ºC / 10%-60% -10ºC-60ºC / 10%-60% -10ºC-60ºC / 10%-60%
Storage Temp/Humidity -30ºC-60ºC / 10%-60% -30ºC-60ºC / 10%-60% -30ºC-60ºC / 10%-60% -30ºC-60ºC / 10%-60%
Refresh Rate >1,920 Hz >1,920 Hz >1,920 Hz >1,920 Hz
Brightness 2,500 nits 2,000 nits 4,500 nits 4,500 nits
Horizontal Viewing Angle 160° 160° 160° 160°
Vertical Viewing Angle 140° 140° 140° 140°
Expected Lifetime 100, 000 Hrs 100, 000 Hrs 100, 000 Hrs 100, 000 Hrs
Best Viewing Distance 4m-60m 6m-60m 8m 8m
Scan Method 1 / 16 Scan 1 / 6 Scan 1 / 5 Scan 1 / 3 Scan
Servicing Front Front Front Front
IP Rating IP 65 IP 65 IP 65 IP 65
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

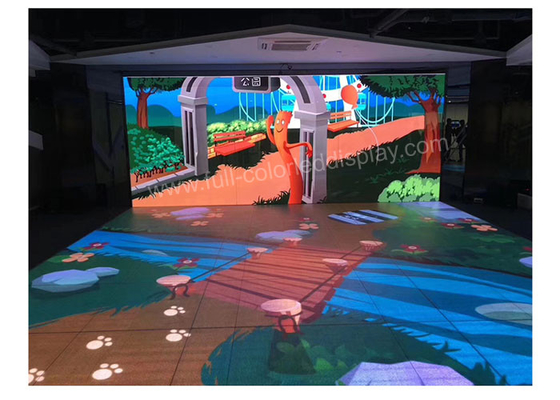

Floor LED Display project case:



P6.25 Dance Floor Indoor Rental Led Display Interative High Brightness Radar System 0





Floor LED Display can be strong Pressure:



P6.25 Dance Floor Indoor Rental Led Display Interative High Brightness Radar System 1
