Product Details:
Payment & Shipping Terms:
|
| Product: | Floor Led Display | IP Rating: | IP 65 |
|---|---|---|---|
| Contrast Ratio: | 4,000 : 1 | NO.of Modules Per Panel (W × H): | 2 × 4 |
| Physical Resolution Of Module (W × H): | 40 X 40 | Physical Resolution Of Panel (W × H): | 80 X 160 |
| Single Cabinet Weight: | 24 Kg/panel | Expected Lifetime: | 100, 000 Hrs |
| High Light: | Stage Led Screen,Led Stage Backdrop Screen |
||

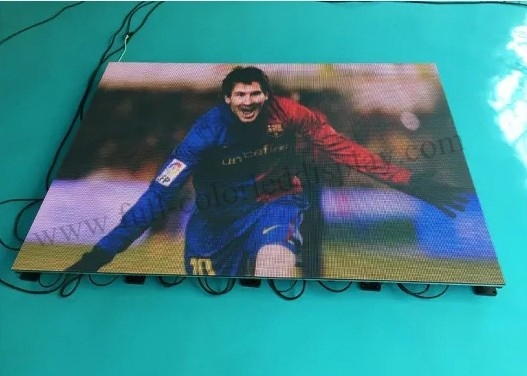

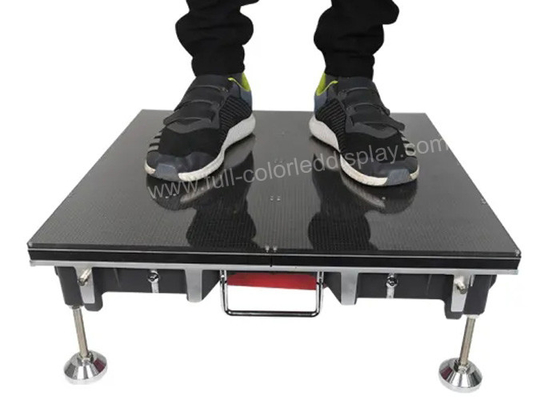

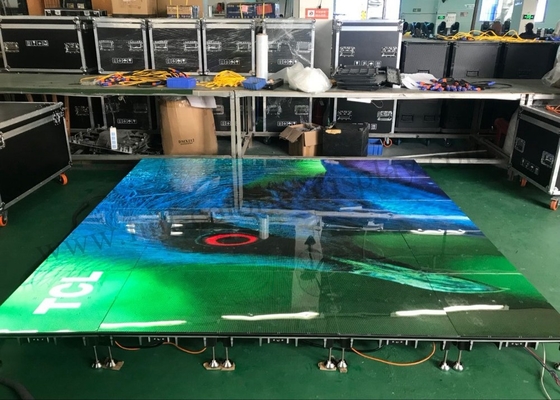

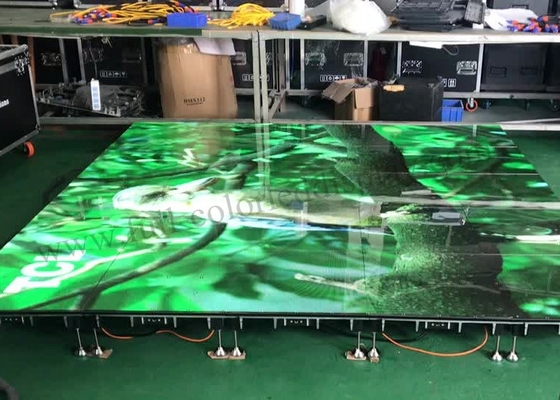

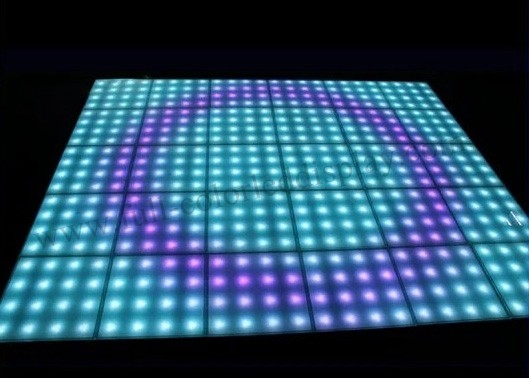

RGB Video LED floor tile Display screen Acrylic 4500 Nits IP65 For Holiday Party
The advantage of Floor LED Display:
At present domestic floor tile of the LED screen, although it is possible to achieve a similar effect by means of advance design video, but the scene activities often full of uncertainty, need to have special staff responsible for video broadcast, adjustment, not only requires a lot of resources, more can't achieve timely and accurate, interactive floor tile screen can be targeted to solve this problem.
Floor LED Display Feature:
Floor LED Display Parameter:
| Product Item | LW-6 |
| Pixel Pitch | 6.25 mm |
| Pixel Configuration | SMD 2727 |
| Pixel Density | 25,600 pixels/m² |
| Module Dimensions (W × H) (mm) | 250 × 250 |
| Panel Dimensions (mm) | 500 × 1000 |
| NO.of Modules Per Panel (W × H) | 2 × 4 |
| Physical Resolution of Module (W × H) | 40 x 40 |
| Physical Resolution of Panel (W × H) | 80 x 160 |
| Panel Material | Aluminum |
| Single Cabinet Weight | 24 kg/panel |
| ray Scale | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000 : 1 |
| Average Power Consumption | 300 W / m² |
| Max Power Consumption | 880 W / m² |
| Operating Temp/Humidity | -10ºC-60ºC / 10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC / 10%-60% |
| Refresh Rate | >1,920 Hz |
| Brightness | 4,500 nits |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | 100, 000 Hrs |
| Best Viewing Distance | 8m |
| Scan Method | 1 / 5 Scan |
| Servicing | Front |
| IP Rating | IP 65 |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
Floor LED Display details:
