Soft Rubber Cylinder P3 Flexible Led Matrix Display 1R1G1B High Refresh Rate

Soft Rubber Cylinder P3 Flexible Led Matrix Display 1R1G1B High Refresh Rate
Soft Rubber Cylinder P3 Flexible Led Matrix Display 1R1G1B High Refresh Rate Soft Rubber Cylinder P3 Flexible Led Matrix Display 1R1G1B High Refresh Rate Soft Rubber Cylinder P3 Flexible Led Matrix Display 1R1G1B High Refresh Rate

Large Image :  Soft Rubber Cylinder P3 Flexible Led Matrix Display 1R1G1B High Refresh Rate

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE, ROHS , CCC , FCC
Model Number: LW-F3
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Carton/wooden case/Flight case etc.
Delivery Time: 7- 18 working days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability: 5,000 square meters per month
Detailed Product Description
Pixel Pitch: 3mm Lamp: SMD2121 / SMD2020 Black
Module Size: 240mmx120mm Drive Model: 1/20 Scan
Pixel Configuration: 1R1G1B Module Resolution: 80 Dots X 40 Dots
Module Pixel: 3200 Pixel Brightness: 900 ~1200cd/M2
Power: DC 5V Number Of Colors: 16 Bits
High Light:

Advertising Led Display

,

Indoor Led Display Screen

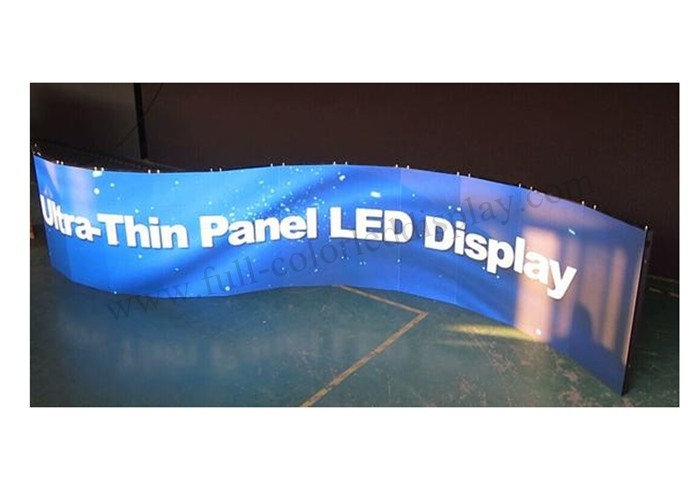

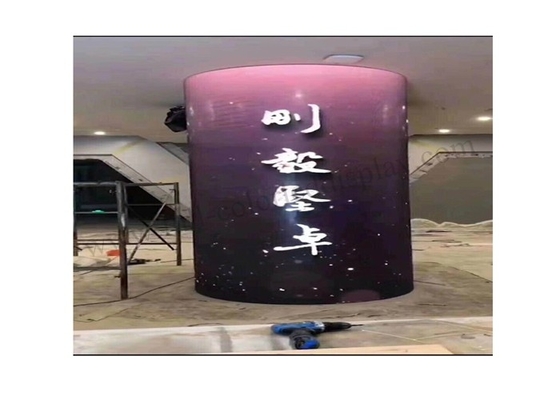

P3 Flexible Led Matrix Display High Refresh Rate Soft Rubber Cylinder



Now it occured various creativity shape of the large led screen in the market, many curved displays are made of flexible modules. So, what are the characteristics and advantages of LED flexible display?





P3 Flexible LED Display Feature:

  • Focus on structural breakthroughs, other than traditional LED display , more suitable for customization
  • Soft PCB and rubber material
  • Excellent performance The real flexible LED screen
  • The flexible module is equipped with a high strength magnetic core connection device
  • Slim and Lightweight and Quiet



P3 Flexible LED Display Parameter:



Product Item LW-F2.5 LW-F3 LW-F4
Physical Pitch 2.5mm 3mm 4mm
Pixel Configuration SMD2121 SMD2121 SMD2121
Pixel Density 160,000 pixels/m² 111,111 pixels/m² 62,500 pixels/m²
Module Dimensions(W*H)(mm) 240*120 240*120 240*120
Panel Dimensions(mm) Customized Customized Customized
Physical Resolution of Module(W*H) 96*48 80*40 60*30
Weight 8.2kg/m² 8.2kg/m² 8.2kg/m²
Processing 14-16bit 14-16bit 14-16bit
Colour Number 281 trillion 281 trillion 281 trillion
Contrast Ratio 4000:1 4000:1 4000:1
Average Power Consumption 9W/m² 10W/m² 10W/m²
Max. Power Consumption 12W/m² 13W/m² 13W/m²
Operating Temp/Humidity -20ºC-60ºC/10%-60% -20ºC-60ºC/10%-60% -20ºC-60ºC/10%-60%
Storage Temp/Humidity -40ºC-80ºC/10%-90% -40ºC-80ºC/10%-90% -40ºC-80ºC/10%-90%
Refresh Rate >1920Hz >1920Hz >1920Hz
Brightness >1000 nits >1000 nits >1500 nits
Driving Method 1/24 scan 1/20 scan 1/15 scan
Horizontal Viewing Angle 160° 160° 160°
Vertical Viewing Angle 140° 140° 140°
Expected Lifetime 100,000Hrs 100,000Hrs 100,000Hrs
IP Rating IP40 IP40 IP40
Servicing Front Front Front
Certification CCC,CE,ETL,FCC CCC,CE,ETL,FCC CCC,CE,ETL,FCC
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.





FQA:



1. What is front maintenance, what is rear maintenance? How to choose the best servicing model for your LED display system?
Front maintenance has two means to achieve: module front maintenance cabinet front maintenance;


2. How to order LED display?

  1. Please tell me indoor or outdoor do you need,size of led display,where will be application of led display.
  2. First we discuss order details, production details by email or mobile contact.
  3. Then we issue you an PI for your confirmation. You will be requested to do before we go into production.
  4. After we get the deposit, we start to process the order. We usually need 7-15days.
  5. Before production has been finished, we will contact you for shipment details, and the balance payment.
  6. After payment has been settled, we start to prepare the shipment for you.

3. What is your quality guarantee ?

Life span of LED display screens is more than 100,000 hours,All our LED displays have CE,FCC,RoHS certificates.



4. What is the payment method?

We support a variety of payment methods, the most common is the TT.
