| Display Function: | Video,text,message | Warranty: | 2 Years |
|---|---|---|---|
| Led Chip: | Kinglight | Module Size: | 250mm*250mm |
| Life Span: | 100000hours | Application: | Indoor Advertising |
| Color: | 1R1G1B | Refresh Rate: | 3840Hz |
| Pixel Pitch: | 3.91mm | Power Supply: | Meanwell |
| High Light: | Advertising Led Display,Indoor Led Display Screen |
||

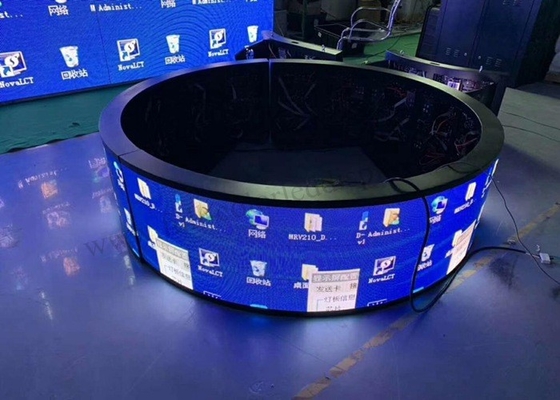

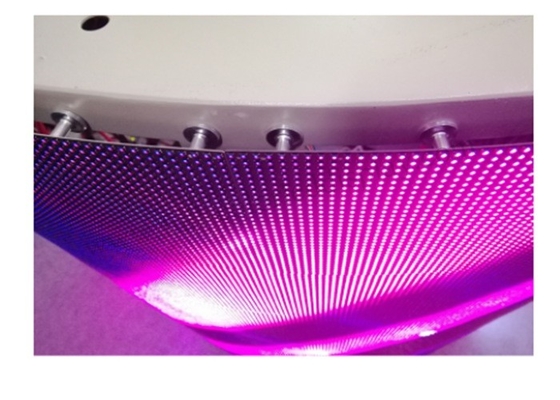

P3.91 Led Round Display Screen With Curved Module Shape For Fixed Installation
P3.91 Led Round Display Feature:
P3.91 Led Round Display Parameter:
| P3.91 SMD2121 Indoor full Color LED Screen Specification | |
| Pixel pitch | 3.91mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD2121 black |
| Size of module | 250mm*250mm |
| Resolution of module | 64x64dots |
| Size of cabinet | 500mm x 500mm/500x1000mm |
| Resolution of cabinet | 128x128 dots/128x256dots |
| Material of Cabinet | Die-casting |
| Weight of Cabinet | 6.8kgs/13.5kgs |
| Brightness | >1500cd/sq.m |
| Density | 65746dots/sq,m |
| Best viewing angle | 140 /140 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 3-40M |
| Maximum power consumption | 1200W/sq.m |
| Average power consumption | 640W/sq.m |
| Driving method | 1/16 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1920Hz |
| IP grade | IP31 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
| Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M; |
| Distance(without relay) | Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
