Magnesium Alloy Cabinet Full Color LED Display P5 With Fast Lock / Quick Connector

Magnesium Alloy Cabinet Full Color LED Display P5 With Fast Lock / Quick Connector
Magnesium Alloy Cabinet Full Color LED Display P5 With Fast Lock / Quick Connector Magnesium Alloy Cabinet Full Color LED Display P5 With Fast Lock / Quick Connector Magnesium Alloy Cabinet Full Color LED Display P5 With Fast Lock / Quick Connector

Large Image :  Magnesium Alloy Cabinet Full Color LED Display P5 With Fast Lock / Quick Connector

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE, ROHS , CCC , FCC
Model Number: LW-FO5
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: Negotiation
Packaging Details: Carton/wooden case/Flight case etc.
Delivery Time: 7- 18 working days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability: 5,000 square meters per month
Detailed Product Description
Pixels: 5mm Usage: Outdoor
Screen Dimension: 960mm X 960mm Tube Chip Color: Full Color
Display Function: Video,Animation,Graphics Brightness: 5500nits
Warranty: 2 Years Life Span: 100000hours
Led Chip: NationstarSMD2727 Module Size: 320mm*160mm
High Light:

commercial led display

,

large led display screen

P5 960mm X 960mm light weight magnesium alloy 25kg cabinet with fast lock and quick connector





With the rapid development of advertising, advertising tools has great change .  From before picture paper board to poster led light box paper board to LED display video . Not only appeal customer but also environmental protection. LED display was widely used in stage , meeting room , square and so on.



But the original led display is very heavy , it is made of iron , a cabinet weight can up to 36kg , it need high freight , and not convenient to installation. Nowadays, with the improvement of technology, we use magnesium alloy to replace iron . Magnesium alloy cabinet has many advantage than traditional iron cabinet . As follows.



  • Lighter :  960mm X 960mm traditional iron cabinet is about 36kg, magnesium alloy cabinet is only 25kg per cabinet
  • Faster:  it has fast lock and fast connertor , installation is very convenient
  • Thinner: traditional iron cabinet is 156mm thickness , magnesium alloy cabinet is only 90mm
  • Beauty:  The appearance is more beautiful than iron cabinet
  • Durable:  Magnesium alloy cabinet not rust in the long term rainny weather other than iron cabinet



P5 Parameter:



Product name P5 LED Display
Pixel pitch 5mm
Unit plate size 320*160(mm)
Unit box size 960*960(mm)
Physical density 40000dot/m2
Pixel configuration 1R1G1B
Panel resolution 32*32=1024 DOTS
Weight of unit plate 0.20Kg
Cabinet resolution 192*192
Main technical parameters
Best visual range 5m~50m
Level of viewing Angle >=160° is optional
Vertical 160 ° or more optional
The average power consumption <700W / m2
The maximum power consumption <1400w /m2
Control mode Synchronization control
Display card 1/8 scan
Maximum power no more than 60W
Refresh rate 300Hz
brightness >= 6000cd/m2
Display card DVI video card
Brightness adjustment brightness induction ,automatically adjusts 16 levels of adjustable
Software manual adjustment 100 level adjustable 100
Computer operating system WIN98,WINXP,WIN2000,etc
Video signal RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITIONetc
Control system PCTV card (optional optional optional) +DVI video card + master control card + optical fiber transmission (optional optional optional)
Life expectancy 75,000 ~ 100,000 hours
Pixel out of control rate < 0.0002 pieces
Project category PH5-8S
Packaging three in one
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

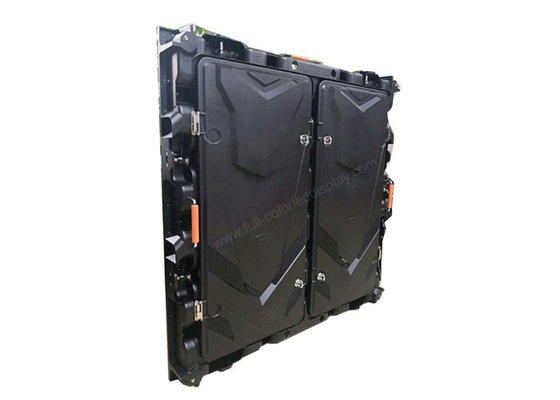

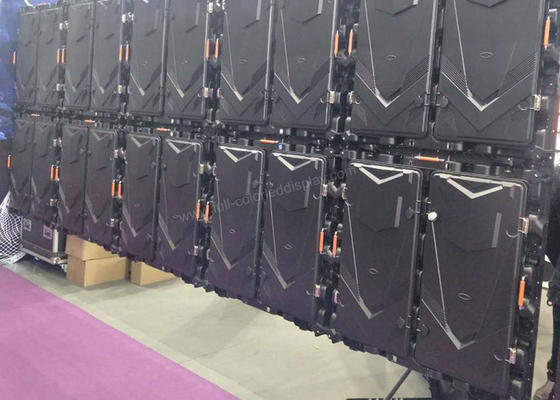

Magnesium alloy cabinet details:



Magnesium Alloy Cabinet Full Color LED Display P5 With Fast Lock / Quick Connector 0



Our Service:

  • We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
  • Other services, such as special packing design, factory visiting and so on;
  • Our company will train the users based on the manual, system use guide and maintenance guide. The training include system use, system maintenance and equipment protection.
  • Customized design is available,OEM ODM are welcomed;
  • We can according to customers' requirements to design cabinet size;

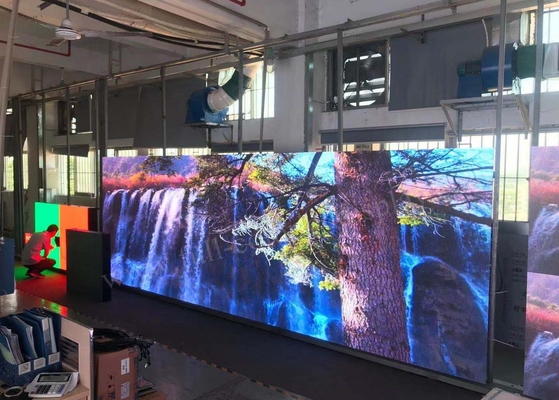

LED Display Factory Effect :



Magnesium Alloy Cabinet Full Color LED Display P5 With Fast Lock / Quick Connector 1
