Product Details:
Payment & Shipping Terms:
|
Product Name: | P5 LED Display | Usage: | Outdoor Advertising |
---|---|---|---|
Screen Size: | 960 X 960mm | Tube Chip Color: | Full Color |
Display Function: | Text, Video, Animation, Graphics | Brightness: | Over 5500nits |
Led Chip: | NationstarSMD2727 | Cabinet Resolution: | 192*192 |
Best Visual Range: | 5m~50m | The Average Power Consumption: | <700W / M2 |
High Light: | led full color screen,large led display screen |

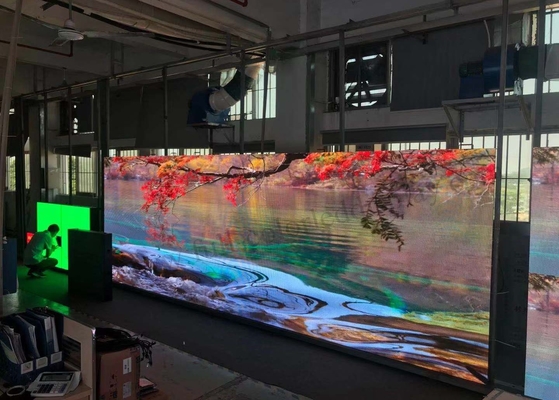

P5 Outdoor Advanced Magnesium Alloy Cabinet Led Display With Convenient Installation
With the rapid development of advertising, advertising tools has great change . From before picture paper board to poster led light box paper board to LED display video . Not only appeal customer but also environmental protection. LED display was widely used in stage , meeting room , square and so on.
But the original led display is very heavy , it is made of iron , a cabinet weight can up to 36kg , it need high freight , and not convenient to installation. Nowadays, with the improvement of technology, we use magnesium alloy to replace iron . Magnesium alloy is an alloy based on magnesium and composed of other elements Magnesium alloy cabinet has many advantage than traditional iron cabinet . As belows.
Magnesium alloy cabinet details:
Our Service:
LED Display :
P5 Outdoor LED Display Parameter:
Product name | P5 LED Display |
Pixel pitch | 5mm |
Unit plate size | 320*160(mm) |
Physical density | 40000dot/m2 |
Pixel configuration | 1R1G1B |
Panel resolution | 32*32=1024 DOTS |
Weight of unit plate | 0.20Kg |
Main technical parameters | |
Best visual range | 5m~50m |
Level of viewing Angle | >=160° is optional |
Vertical | 160 ° or more optional |
The average power consumption | <700W / m2 |
The maximum power consumption | <1400w /m2 |
Control mode | Synchronization control |
Cabinet Material | Magnesium alloy |
Cabinet Size | 960mm X 960mm |
Cabinet resolution | 192*192 |
Display card | 1/8 scan |
Maximum power | no more than 60W |
Refresh rate | 300Hz |
brightness | >= 6000cd/m2 |
Display card | DVI video card |
Brightness adjustment | brightness induction ,automatically adjusts 16 levels of adjustable |
Software manual adjustment | 100 level adjustable 100 |
Computer operating system | WIN98,WINXP,WIN2000,etc |
Video signal | RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITIONetc |
Control system | PCTV card (optional optional optional) +DVI video card + master control card + optical fiber transmission (optional optional optional) |
Life expectancy | 75,000 ~ 100,000 hours |
Pixel out of control rate | < 0.0002 pieces |
Project category | PH5-8S |
Packaging | three in one |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
