| Cabinet Material: | Magnesium Alloy | Pixel Pitch: | 6.68mm |
|---|---|---|---|
| Cabinet Size: | 960mm X 960mm | Level Of Viewing Angle: | >=160° Is Optional |
| Vertical: | 160 ° Or More Optional | The Average Power Consumption: | <700W / M2 |
| The Maximum Power Consumption: | <1400w /m2 | Control Mode: | Synchronization Control |
| Brightness Adjustment: | Brightness Induction ,automatically Adjusts 16 Levels Of Adjustable | Refresh Rate: | 1920hz |
| High Light: | led advertising board,high brightness led display |
||

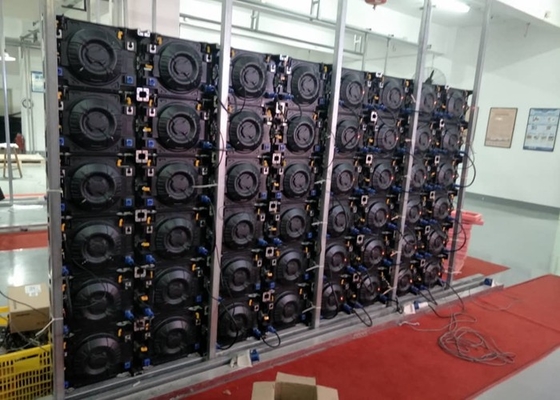

P10 Outdoor Fixed Magnesium Alloy Cabinet With Convenient Installation
Magnesium alloy Definition:
Magnesium alloy is an alloy based on magnesium and composed of other elements.Its characteristics are: small density (about 1.8g/cm3 magnesium alloy), high specific strength, larger than elastic modules, good heat dissipation, good shock absorption, withstand impact load capacity than aluminum alloy, good corrosion resistance of organic matter and alkali.Magnesium alloy is used as the case of LED display screen with high cost performance, easy installation and excellent heat dissipation, so that the product has more market advantages.
Magnesium Alloy Cabinet Advantage:
P10 Magnesium Alloy Cabinet Parameter:
| P10 Technical Specifications | ||
| NO | Product name | outdoor P10 led display |
| 1 | Pixel Pitch(mm) | 10mm |
| 2 | Pixel configuration | 1R1G1B/ SMD3535 |
| 3 | Pixel density | 10000dots/m2 |
| 4 | Brightness | 8000cd/m2 |
| 5 | Module size(W*H) | 320*160mm |
| 6 | Module Resolution (W*H) | 32dots x 16dots |
| 7 | Module weight | 450g |
| 8 | Cabinet size (W*H) | 960mm×960mm |
| 9 | Drive IC | MBI5124 |
| 10 | Drive mode | 1/2scan |
| 11 | Viewing Angle(V/H) | 140ºC |
| 12 | Grey Scale | 65536 degree |
| 13 | Life time | >100,000 Hours (50%) |
| 14 | MTBF | >50,000 Hours |
| 15 | Operating Voltage | AC110V/220V±10% |
| 17 | Screen Power Consumption | Max: 680w/m2; Average:220w/m2 |
| 18 | Input Power Frequency | 50/60Hz |
| 19 | Operating temperature | -30--60ºC |
| 20 | Humidity | 10%-95% |
| 21 | Refresh Rate | 1920HZ |
| 22 | Control Method | Synchronized with computer monitor |
| 23 | Color Temperature | 6500K-9500K |
| 24 | LED control system | LINSN,Nova-star,Colorlight is selectable |
| 25 | Control Distance | 100 m (no repeating); Optical fiber transmission: 500m- 15km |
| 26 | Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
| 27 | Systems Operating Platform | Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
Pacakge:
FQA:
1. What is the payment method?
T/T or Western Union ;
2. How long it takes to delivery?
We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.
3. How to get the price list?
Price list Plssend emailto us with items name;
4. What is the pixel pitch (spacing)?
Another pixel distance from the center to the center of a pixel;
