SMD3535 1R1G1B Outdoor Fixed LED Display P10 Magnesium Alloy Cabinet High Brightness

SMD3535 1R1G1B Outdoor Fixed LED Display P10 Magnesium Alloy Cabinet High Brightness
SMD3535 1R1G1B Outdoor Fixed LED Display P10 Magnesium Alloy Cabinet High Brightness SMD3535 1R1G1B Outdoor Fixed LED Display P10 Magnesium Alloy Cabinet High Brightness SMD3535 1R1G1B Outdoor Fixed LED Display P10 Magnesium Alloy Cabinet High Brightness

Large Image :  SMD3535 1R1G1B Outdoor Fixed LED Display P10 Magnesium Alloy Cabinet High Brightness

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE, ROHS , CCC , FCC
Model Number: LW-FO10
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: Negotiation
Packaging Details: Carton/wooden case/Flight case etc.
Delivery Time: 7- 18 working days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability: 5,000 square meters per month
Detailed Product Description
Pixel: 1R1G1B Configuration: SMD3535
Pixel Pitch: 10mm Pixel Density: 10000 Dots/m2
Module Size(mm): 320x160 Pixels/Module: 32x16
Cabinet Size(mm): 960x960 Pixels/Cabinet: 96x96
Cabinet Weight: 36KG Brightness: 6500cd/㎡
High Light:

led advertising board

,

high brightness led display

P10 Outdoor Fixed LED Display Magnesium Alloy Cabinet High Brightness





Magnesium Alloy Definetion :

Magnesium (Mg) ranks 12th in the periodic table. It has the characteristics of low density and light weight. The specific gravity of magnesium is 2/3 of that of aluminum and 1/4 of that of iron.The alloy material made of magnesium has the obvious advantages of high strength, high rigidity and good heat dissipation.





P10 Magnesium Alloy Cabinet Advantage:

  • Ultra-light---lighter 40% than traditional iron cabinet;
  • Fast calm down---excellent heat dissipation performance to prolong the modular circuit life-span;
  • Anti-interference---special anti-electromagnetic interference function;
  • Seamless splice---make the video more in whole ;
  • Good shock resistance, Large capacity to bear impact load ;
  • Good corrosion resistance to organic matter and alkali .









P10 LED display parameter:



P10 Technical Specifications
NO Product name outdoor P10 led display
1 Pixel Pitch(mm) 10mm
2 Pixel configuration 1R1G1B/ SMD3535
3 Pixel density 10000dots/m2
4 Brightness 8000cd/m2
5 Module size(W*H) 320*160mm
6 Module Resolution (W*H) 32dots x 16dots
7 Module weight 450g
8 Cabinet size (W*H) 960mm×960mm
9 Drive IC MBI5124
10 Drive mode 1/2scan
11 Viewing Angle(V/H) 140ºC
12 Grey Scale 65536 degree
13 Life time >100,000 Hours (50%)
14 MTBF >50,000 Hours
15 Operating Voltage AC110V/220V±10%
17 Screen Power Consumption Max: 680w/m2; Average:220w/m2
18 Input Power Frequency 50/60Hz
19 Operating temperature -30--60ºC
20 Humidity 10%-95%
21 Refresh Rate 1920HZ
22 Control Method Synchronized with computer monitor
23 Color Temperature 6500K-9500K
24 LED control system LINSN,Nova-star,Colorlight is selectable
25 Control Distance 100 m (no repeating); Optical fiber transmission: 500m- 15km
26 Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
27 Systems Operating Platform Windows Xp / Windows 7 / windows 8 /8.1 / windows 10
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.





Why Choose Us :

  • We are expert in rental LED display , we have many ultra-thin super-light panel designs for your choice;
  • Your inquiry related to our products or prices will be replied in 24hrs;
  • It lowers your transportation costs and save much labor costs to install and dismantle the LED screen;
  • Waterproof led module and cabinet; Easy maintance installation; relative low power consumption; wide viewing angle;
  • More than hundreds of workers and using technical equipment;

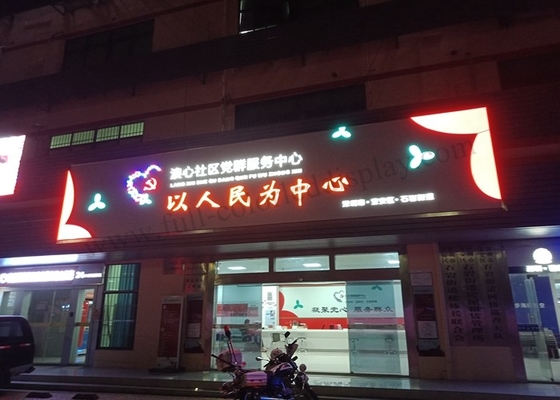

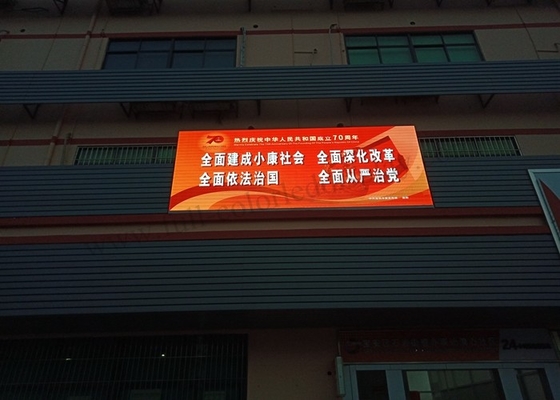

P10 LED Display Application:



SMD3535 1R1G1B Outdoor Fixed LED Display P10 Magnesium Alloy Cabinet High Brightness 0
