Product Details:
Payment & Shipping Terms:
|
| Product Item: | P6 | LED Encapulation: | SMD3535 |
|---|---|---|---|
| Resolution Of Module(dots): | 32(W)*32(H) | Thickness Of Module (mm): | 17.05(No Magnet) |
| Weight Of Module (Kg): | 0.369 | Driving Method: | Constant Current Driving |
| Equilibrium Brightness(CD//m²): | ≥7000 CD/m² | Size(mm): | 192*192 / 384*192 |
| Power Supply Mode: | 5V/40A*1PC | Best Viewing Distance(m): | 6-100m |
| High Light: | led full color screen,large led display screen |
||

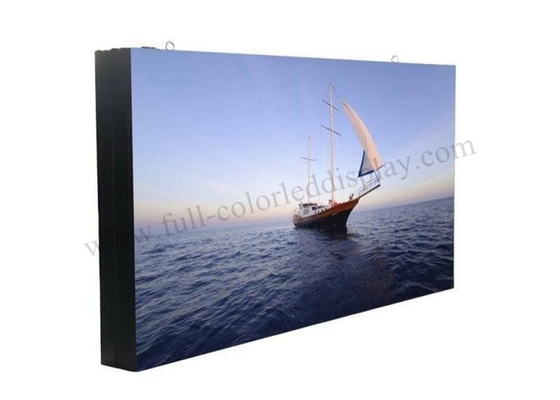

Front Open Service P6 Full Color Led Display Panel With Customized Cabinet
With the wide application of LED display in the advertising industry, many buildings are installed on the external walls of LED display.

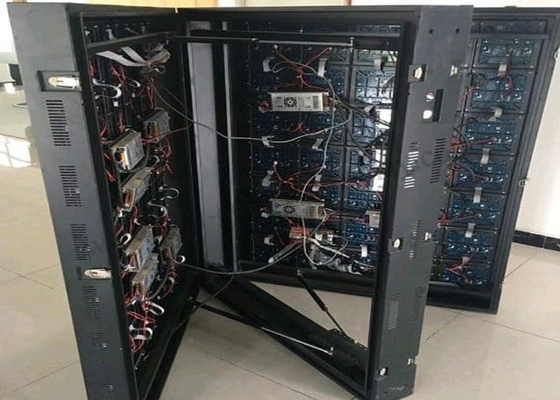

There is not enough space on the back of the screen for maintenance channels, It is a big problem . So it occured front open service led display in the market.
Front Open Service P6 Full Color Led Display Feature:
Front Open Service P6 Full Color Led Display Parameter:
| Module | Parameter NO. | P6 |
| Size of Module(mm) | 192*192 | |
| Pixel Density(dots/m²) | 27777 dots/m² | |
| Pixel Pitch(mm) | 6mm | |
| LED Encapulation | SMD3535 | |
| Resolution of Module(dots) | 32(W)*32(H) | |
| Thickness of Module (mm) | 17.05(No magnet) | |
| Weight of Module (Kg) | 0.369 | |
| Driving Method | Constant Current Driving | |
| Equilibrium Brightness(CD//m²) | ≥7000 CD/m² | |
| Bracket | Size(mm) | 192*192 |
| 384*192 | ||
| Cabinet | Size of Cabinet(mm) | 576*576 |
| Power Supply Mode | 5V/40A*1PC | |
| Best Viewing Distance(m) | 6-100m | |
| Best Viewing Angle | 160(W) 120(H) | |
| Storage Temperature(ºC) | -35ºC ~ +85ºC | |
| Working Temperature(ºC) | -40ºC ~ +50ºC | |
| Relative Humidity | 10%-95% | |
| Power Supply | Working Voltage(V) | AC220V±10% |
| Average Power Consumption(W/m²) | ≤500 W/m² | |
| Max Consumption(W/m²) | ≤1000 W/m² | |
| Control System | Scan and control Method | 1/8 Synchronous Control |
| Driving Components | Constant current Driving | |
| Technical Parameters | Refresh Frequency (HZ) | ≥600 Hz/Sec |
| Frame Frequency (HZ) | ≥60 HZ/Sec | |
| Level of Brightness/Color | RGB256 | |
| Level of Gray | 65536 | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | ||
Our service:

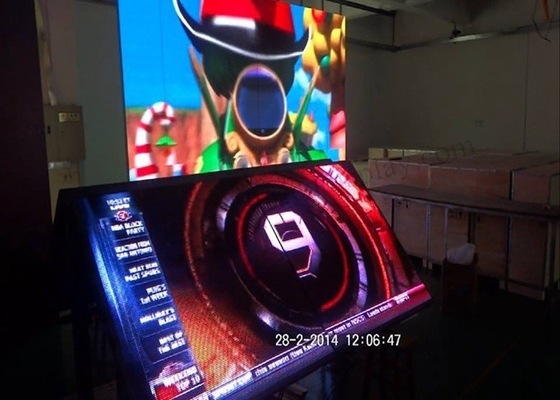

Front Open Service P6 Full Color Led Display Project :
Front Open Service P6 Full Color Led Display package:
