Product Details:
Payment & Shipping Terms:
|
| LED Encapulation: | SMD3535 | Resolution Of Module(dots): | 32(W)*16(H) |
|---|---|---|---|
| Thickness Of Module (mm): | 17.05(No Magnet) | Weight Of Module (Kg): | 0.51 |
| Driving Method: | Constant Current Driving | Equilibrium Brightness(CD//m²): | ≥5500 CD/m² |
| Size(mm): | 160*160 | Working Voltage(V): | AC220V±10% |
| Average Power Consumption(W/m²): | ≤350 W/m² | Max Consumption(W/m²): | ≤750 W/m² |
| High Light: | led advertising board,high brightness led display |
||

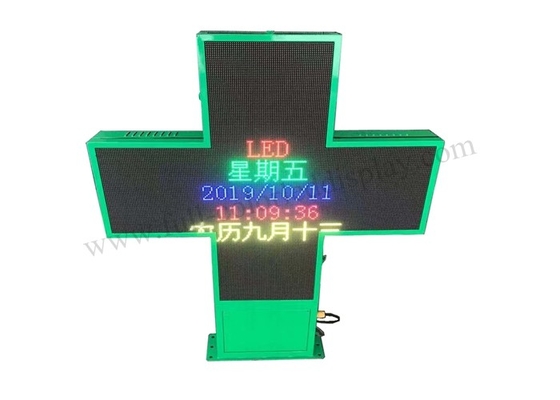

P5 Waterproof Outdoor Full Color LED Pharmacy Cross Sign Display
LED Cross Pharmacy Sign Feature:
LED Cross Pharmacy Sign Parameter:
| Pharmacy Cross LED Display Parameter | |
| Item | P5 |
| Pixel Pitch (mm) | 5 |
| Display Size (mm) | 960*960 |
| Moudle Size (mm) | 160*160 |
| Total Modules | 11 |
| Color | 1R1G1B |
| Pixel | 32*32 |
| Drive method | 1/8scan |
| Working temperature (degree C) | -20~50 |
| Visual Angle (degree) | 70 H / 45 V |
| Max Power (watt) | 1300 |
| Brightness (cd/sq.m) | >5500 |
| Total Leds (pixels) | 8192 |
| Weatherproofing(Front/Back) | IP65/IP54 |
| Cabinet access | Front |
| Cabinet Material | Iron |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |

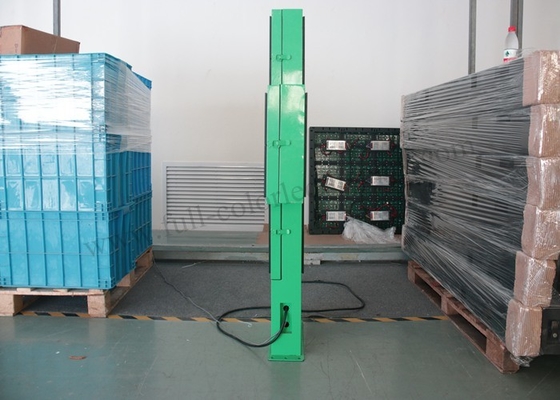

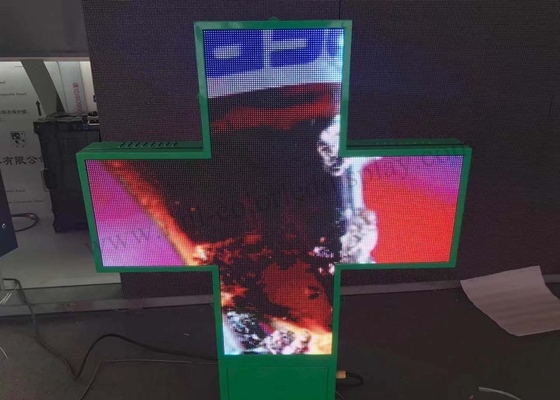

LED Cross Pharmacy Sign Details:
FQA:
1. Can I have a sample order for led Screen?
Yes, we welcome sample order to test and check quality. Both for LED moduel or a whole screen
2. What about the lead time?
Order less than 100 square meter led time take 15 working days
First we discuss order details, production details by email or mobile contact. Then we issue you an PI for your confirmation. You will be requested to do before we go into production. After we get the deposit, we start to process the order. We usually need 7-15 days. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
3. What's the shiping method,shipping time?
Our products could be shippedby Sea, by Air, and by Express;
4. How to proceed an order for led Screen?
Firstly let us know your requirements or application;Secondly We quote according to your requirements or our suggestions;Thirdly customer confirms the design document and places deposit for formal order;Fourthly We arrange the production.
LED Cross Pharmacy Sign Package:
