Product Details:
Payment & Shipping Terms:
|
| Pixels: | 4mm | Usage: | Outdoor |
|---|---|---|---|
| Screen Dimension: | Customized Size | Tube Chip Color: | Full Color |
| Display Function: | Animation | Brightness: | 6000nits |
| Warranty: | 2 Years | Life Span: | 100000hours |
| Led Chip: | SMD1921 Black | Module Size: | 320X160mm |
| High Light: | commercial led display,large led display screen |
||
P4 Angle LED Display High Brightness For Outdoor Corner Advertising
P4 Angle LED Display Feature :
P4 Angle LED Display Parameter :
| P4 outdoor fixed led display | |
| Module Parameter | |
| Pixel pitch | 4mm |
| Pixel Density | 62500 pixels/sqm. |
| LED type | SMD1921 black |
| Pixel combination | 1R1G1B |
| Module size | 320x160mm |
| Module resolution | 80x40 pixels |
| Driving mode | 1/10 scan |
| Panel Parameter | |
| Number of modules | 2W*4H |
| Panel size | 640x640mm |
| Panel resolution | 160x160 |
| Maintain way | Rear |
| IP Rating | IP65 |
| Flatness | ≤0.1mm |
| Cabinet material | Die-cast aluminium or Iron |
| General Parameter | |
| Viewing distance | ≥5M |
| Brightness | ≥6500CD/sqm. |
| Viewing angle | 120°/120° |
| Weight | 40kg/sqm. |
| Max Power consumption | 900W/sqm. |
| Aver Power consumption | 360W/sqm. |
| Frame frequency | ≥60HZ |
| Refresh frequency | ≥1920HZ |
| Working Temperature | -30ºC~50ºC |
| Working Voltage | AC90~260V±20%,50-60HZ |
| Grey scale/color | 16384x16384x16384 |
| Brightness adjustment | 0-255 |
| MTBF | 5000 hours |
| Life | 100000 hours |
| Malfunction dot rate | <0.0001 |
| Control distance | Ethernet cable≤100m, Single mode fiber optic ≤500m, Multimode fiber optic ≤15km |
| Control system | |
| Control system | Novastar / Linsn / Colorlight ( Optional ) |
| Input signal | DVI / HDMI / SDI / VGA / S-video / Composite |
| Video processor | VDWALL / RGBlingk / Novastar ( Optional ) |
| Audio system | |
| Audio system | BOSE / JBL / PAL / Customized ( Optional ) |
| Installation | Fixed installation / Rental installation ( Optional ) |
| Hanging bar | Optional |
| Certification | CE / RoHS / ETL / CCC / FCC / BS476 |
| Packing Type | Plywood case / Flight case ( Optional ) |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |

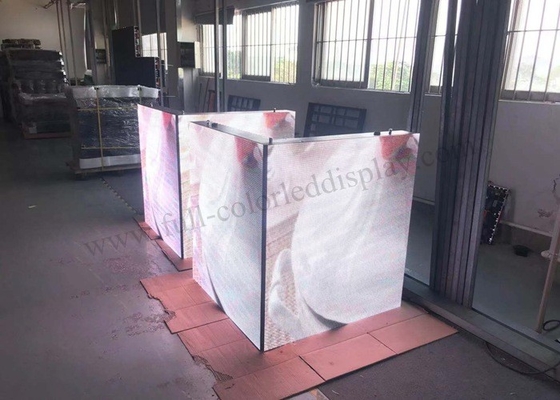

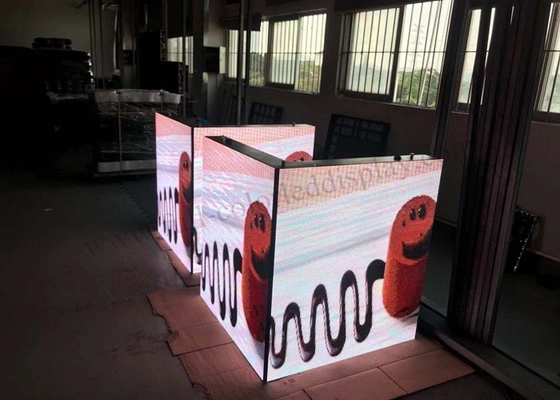

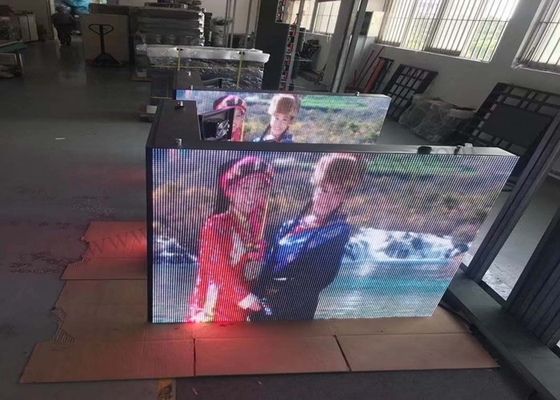

P4 Angle LED Display Details:
FQA:
1. What is your quality guarantee ?
Life span of LED display screens is more than 100,000 hours,All our LED displays have CE,FCC,RoHS certificates.
2. How to choose the corresponding control system for your LED display?
Product model, controlling distance application is the main factors. One more point is that the synchronous control system
always has much better viewing effect and more powerful function;
3. What is your company s service ?
Any inquires will be replied within 24 hours in working days and you ll get helpful suggestions from us.
For asynchronous control: We use Onbon, or Xixun control system.
4. What's the pixel pitch for Outdoor LED Display Screen?
Outdoor (p5mm/P6mm / P8mm/P10mm/p16mm/p20mm) led display screen.
