Right Angle Outdoor Fixed LED Display P8 1R1G1B 15625 Pixels / Sqm High Brightness

Right Angle Outdoor Fixed LED Display P8 1R1G1B 15625 Pixels / Sqm High Brightness
Right Angle Outdoor Fixed LED Display P8 1R1G1B 15625 Pixels / Sqm High Brightness Right Angle Outdoor Fixed LED Display P8 1R1G1B 15625 Pixels / Sqm High Brightness Right Angle Outdoor Fixed LED Display P8 1R1G1B 15625 Pixels / Sqm High Brightness Right Angle Outdoor Fixed LED Display P8 1R1G1B 15625 Pixels / Sqm High Brightness

Large Image :  Right Angle Outdoor Fixed LED Display P8 1R1G1B 15625 Pixels / Sqm High Brightness

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE, ROHS , CCC , FCC
Model Number: LW-FO8
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: Negotiation
Packaging Details: Carton/wooden case/Flight case etc.
Delivery Time: 7- 18 working days
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram,
Supply Ability: 5,000 square meters per month
Detailed Product Description
Pixel Pitch: 8mm Pixel Density: 15625 Pixels/sqm
LED Type: SMD3535 Module Size: 256x128mm
Module Resolution: 32x16 Pixels Driving Mode: 1/4 Scan
Cabinet Material: Die-cast Aluminium Or Iron Weight: 40kg/sqm.
Max Power Consumption: Max. 800W/sqm. Aver Power Consumption: Aver. 320W/sqm.
High Light:

led advertising board

,

high brightness led display

P8 Right Angle Outdoor Fixed LED Display 1R1G1B



P8 Angle LED Display Feature :

  • Display broadcasting full-motion picture;
  • High brightness, screen adjusts automatically;
  • Low Power Consumption, Energy Saving;
  • The brightness can be adjustable to meet the need of changing environment;
  • Kinglight LED lamp and Macroblock 5124 made;
  • That is to improve the aesthetic sense, but also make the screen view;


P8 Angle LED Display Parameter :


P8 outdoor fixed led display
Module Parameter
Pixel pitch 8mm
Pixel Density 15625 pixels/sqm.
LED type SMD3535
Pixel combination 1R1G1B
Module size 256x128mm
Module resolution 32x16 pixels
Driving mode 1/4 scan
Panel Parameter
Number of modules 4W*4H
Panel size 1024x1024mm
Panel resolution 128x128
Maintain way Rear
IP Rating IP65
Flatness ≤0.1mm
Cabinet material Die-cast aluminium or Iron
General Parameter
Viewing distance ≥9M
Brightness ≥6000CD/sqm.
Viewing angle 120°/120°
Weight 40kg/sqm.
Max Power consumption Max. 800W/sqm.
Aver Power consumption Aver. 320W/sqm.
Frame frequency ≥60HZ
Refresh frequency ≥1920HZ
Working Temperature -30ºC~50ºC
Working Voltage AC90~260V±20%,50-60HZ
Grey scale/color 16384x16384x16384
Brightness adjustment 0-255
MTBF 5000 hours
Life 100000 hours
Malfunction dot rate <0.0001
Control distance Ethernet cable≤100m, Single mode fiber optic ≤500m, Multimode fiber optic ≤15km
Control system
Control system Novastar / Linsn / Colorlight ( Optional )
Input signal DVI / HDMI / SDI / VGA / S-video / Composite
Video processor VDWALL / RGBlingk / Novastar ( Optional )
Audio system
Audio system BOSE / JBL / PAL / Customized ( Optional )
Installation Fixed installation / Rental installation ( Optional )
Hanging bar Optional
Certification CE / RoHS / ETL / CCC / FCC / BS476
Packing Type Plywood case / Flight case ( Optional )
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

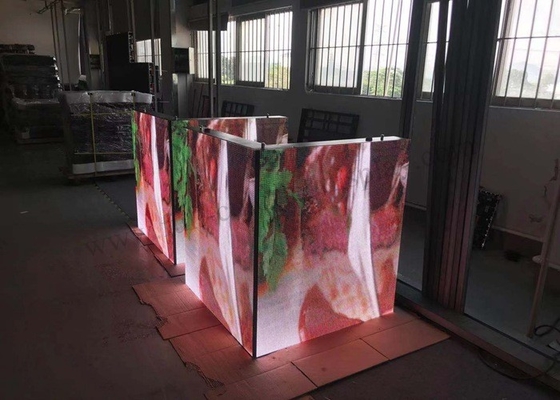

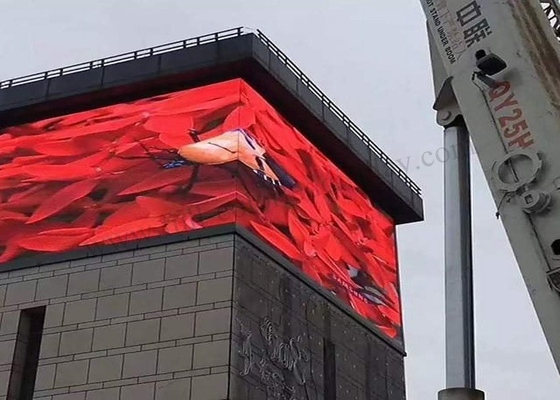

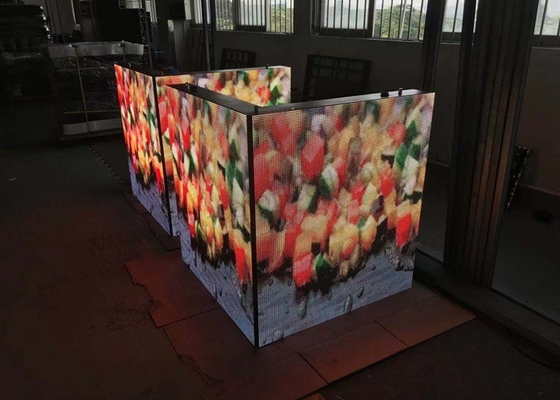

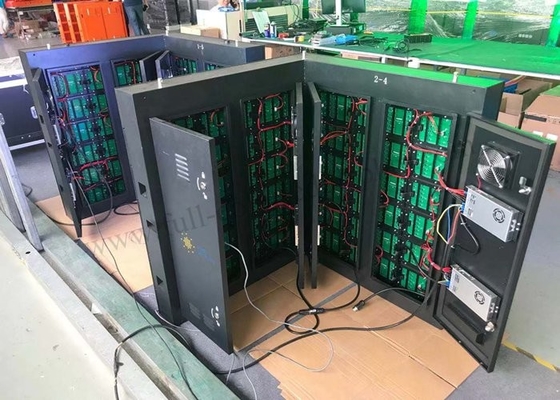

P8 Angle LED Display Details:

Right Angle Outdoor Fixed LED Display P8 1R1G1B 15625 Pixels / Sqm High Brightness 0

Right Angle Outdoor Fixed LED Display P8 1R1G1B 15625 Pixels / Sqm High Brightness 1




Our Advantage:

  • High degree of protection,high durability;
  • Service advantage: Better service at same situation, better cooperation at same service;
  • ManyYears factory, We are led screen manufacturer for 7 years, we have rich experience in outdoor and indoor led display, quality is guaranteed;
  • Cabinets adopt rapid assembling sets Which can be beautiful but also a real rapid disassembling;
  • High contrast rate up to 9000:1 by using black LED;
