SMD3535 8mm Pixel Pitch Outdoor LED Video Wall Nova / Linsn Control System

China SMD3535 8mm Pixel Pitch Outdoor LED Video Wall Nova / Linsn Control System supplier

Large Image :  SMD3535 8mm Pixel Pitch Outdoor LED Video Wall Nova / Linsn Control System

Product Details:

Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE,RoHS,FCC
Model Number: LW-FO 8

Payment & Shipping Terms:

Minimum Order Quantity: 1 square meter
Price: Negotiation
Packaging Details: Carton/Plywood case etc.
Delivery Time: 12-20 working days after received your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3,000 square meters per month
Contact Now
Detailed Product Description
Pixel Pitch: 8mm Pixel Density: 15625 Pixels/sqm
LED Type: SMD3535 Pixel Combination: 1R1G1B
Module Size: 256x128mm Module Resolution: 32x16 Pixels
Driving Mode: 1/4 Scan Brightness: ≥6000CD/sqm.
Viewing Angle: 120°/120° Weight: 40kg/sqm.

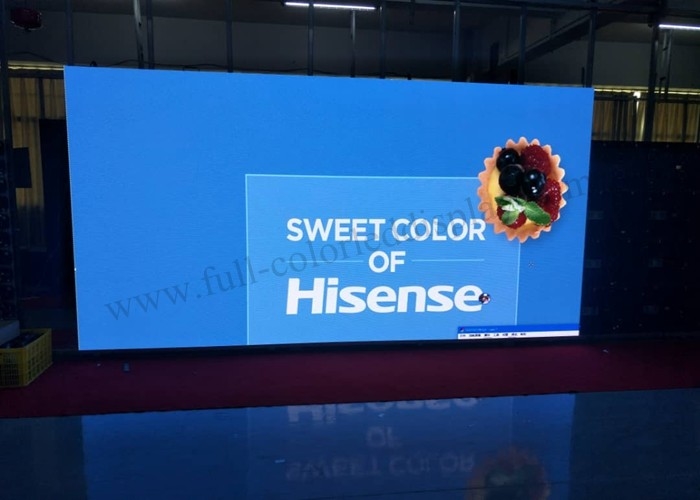

8mm Pixel Pitch Outdoor LED Video Wall Nova / Linsn Control System

8mm Pixel Pitch Outdoor LED Video Wall Feature:

  • Unique cabinet design, high fresh rate, can support HDMI SDI DP VGA,
  • creating high resolution pictures and delicate colors, to a certain extent, it can be comparable to LCD;
  • Classical and stable structure and performance;
  • Large viewing angle Up to 140 Horizontal Vertical
  • the decrease of the LED chip, the input power and prolong the service life of 1.3 times;
  • the world's first high efficiency and energy saving, the maximum energy saving 70%, save the cost;
  • 100000 hours life of span;
  • Easy for installation;
  • Reducing the voltage to receive energy saving between 40% and 20%;
  • Brightness(average) ≥ 7500CD/m2;
  • with multi-functional card, it can turn on and turn off the screen by timing or manually at any time.
  • Anti-UV, anti-oxidation module prevents from deformation;


8mm Pixel Pitch Outdoor LED Video Wall Parameter:


P8 outdoor fixed led display
Module Parameter
Pixel pitch8mm
Pixel Density15625 pixels/sqm
LED typeSMD3535
Pixel combination1R1G1B
Module size256x128mm
Module resolution32x16 pixels
Driving mode1/4 scan
Panel Parameter
Number of modules4W*4H
Panel size1024x1024mm
Panel resolution128x128
Maintain wayRear
IP RatingIP65
Flatness≤0.1mm
Cabinet materialDie-cast aluminum or Iron
General Parameter
Viewing distance≥9M
Brightness≥6000CD/sqm.
Viewing angle120°/120°
Weight40kg/sqm.
Max Power consumptionMax. 800W/sqm.
Aver Power consumptionAver. 320W/sqm.
Frame frequency≥60HZ
Refresh frequency≥1920HZ
Working Temperature-30ºC~50ºC
Working VoltageAC90~260V±20%,50-60HZ
Grey scale/color16384x16384x16384
Brightness adjustment0-255
MTBF5000 hours
Life100000 hours
Malfunction dot rate<0.0001
Control distanceEthernet cable≤100m, Single mode fiber optic ≤500m, Multimode fiber optic ≤15km
Control system
Control systemNovastar / Linsn / Colorlight ( Optional )
Input signalDVI / HDMI / SDI / VGA / S-video / Composite
Video processorVDWALL / RGBlingk / Novastar ( Optional )
Audio system
Audio systemBOSE / JBL / PAL / Customized ( Optional )
InstallationFixed installation / Rental installation ( Optional )
Hanging barOptional
CertificationCE / RoHS / ETL / CCC / FCC / BS476
Packing TypePlywood case / Flight case ( Optional )
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.


Our service:

  • After the warranty period, we also can offer you the parts for replacement at our bottom price;
  • Protection of your sales area, ideas of design and all your private information
  • We provide 2 years for warranty and lifelong maintaining , you will appreciate our warm after-sale service.
  • We guarantee all our display, modules, spare parts (Silan Chip) for TWO years;
  • Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs;



Application:
Our full color LED display is widely used in securities exchange, commercial applications, Offices, stage, Sports events, motor racing Circuits, fitness hall, traffic display, elevator, coffee shop, enterprise engineering, stations and so on.


Package Details:

SMD3535 8mm Pixel Pitch Outdoor LED Video Wall Nova / Linsn Control System
SMD3535 8mm Pixel Pitch Outdoor LED Video Wall Nova / Linsn Control System
