IP65 Fixed Outdoor Advertising Led Display Screen With S Video VGA DVI Input

China IP65 Fixed Outdoor Advertising Led Display Screen With S Video VGA DVI Input supplier

Large Image :  IP65 Fixed Outdoor Advertising Led Display Screen With S Video VGA DVI Input

Product Details:

Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE,RoHS,FCC,CCC
Model Number: LW-FO6

Payment & Shipping Terms:

Minimum Order Quantity: 1 square meter
Price: negotiable
Packaging Details: Carton/Plywood case etc.
Delivery Time: 10~20 days after receiving the deposit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5,000 square meters per month
Contact Now
Detailed Product Description
LED Chip: Taiwan/Silan/Cree/Cree Cotco Pixel Composition: 2Red, 1Green, 1Blue
Control Method: Controlled By PC, Synchronous Display Video Frame Rate: ≥ 150 Fps
Soft Rubber Mask: To Protect Player And LED Display Itself Viewing Angle: Horizontal ≥ 120° , Vertical : ≥ 45°
Bracket Of Cabinet: Easy To Install Onto The LED Cabinet And Unistall Pixel Pitch: 6mm
Pixel Density: 27777 Pixels/sqm. Module Size: 192x192mm



Professional IP65 Outdoor Fixed LED Advertising Display With S-Video VGA DVI Input

LED Advertising Display Quick Details:

  • Pixel composition:2Red, 1Green, 1Blue ;
  • LED chip:Taiwan/Silan/Cree/Cree Cotco ;
  • Physical Pixel Pitch: 6mm ;
  • Physical Pixel Density: 27777dots/m 2;
  • cabinet resolution: 128x128 dots or customized;
  • Viewing angle: Horizontal ≥ 120°, Vertical: ≥ 45°;
  • Type of video signal: S-video, composite video, RGB, VGA, DVI.


LED Advertising Display features:

  • Pixel pitch is larger, suitable for long-distance viewing and large screen ;
  • Designed to withstand adverse weather conditions and to astound
  • You can use software to adjust the bright and dark lines ;
  • Waterproof level is very good, you can do double door, in front of the back can IP65 ;
  • High brightness, high refresh rate, large viewing angle;


LED Advertising Display parameters:


P6 outdoor fixed LED display
Module Parameter
Pixel pitch 6mm
Pixel Density 27777 pixels/sqm.
LED type SMD2727
Pixel combination 1R1G1B
Module size 192x192mm
Module resolution 32x32 pixels
Driving mode 1/8 scan
Panel Parameter
Number of modules 4W*4H
Panel size 768x768mm
Panel resolution 128x128
Maintain way Rear
IP Rating IP65
Flatness ≤0.1mm
Cabinet material Die-cast aluminum or Iron or magnesium alloy
General Parameter
Viewing distance ≥7M
Brightness ≥5000CD/sqm.
Viewing angle 120°/120°
Weight 40kg/sqm.
Max Power consumption Max. 700W/sqm.
Aver Power consumption Aver. 280W/sqm.
Frame frequency ≥60HZ
Refresh frequency ≥1920HZ
Working Temperature -30ºC~50ºC
Working Voltage AC90~260V±20%,50-60HZ
Grey scale/color 16384x16384x16384
Brightness adjustment 0-255
MTBF 5000 hours
Life 100000 hours
Malfunction dot rate <0.0001
Control distance Ethernet cable≤100m, Single mode fiber optic ≤500m, Multimode fiber optic ≤15km
Control system
Control system Novastar / Linsn / Colorlight ( Optional )
Input signal DVI / HDMI / SDI / VGA / S-video / Composite
Video processor VDWALL / RGBlingk / Novastar ( Optional )
Audio system
Audio system BOSE / JBL / PAL / Customized ( Optional )
Installation Fixed installation / Rental installation ( Optional )
Hanging bar Optional
Certification CE / RoHS / ETL / CCC / FCC / BS476
Packing Type Plywood case / Flight case ( Optional )
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.


FQA:

1. May I know the Minimum order for your products?
For our products, no limit for the size of the screen, but generally speaking, one screen the dots more than 50000 dots will be clear for the audience to see the video on the screen.
2. What is our warranty?
Our warranty from 5 years to 1 year basis on different type led screen, In usually every screen we will be ready more extra led screen modules as spare modules, if some modules happen fails, you can replace the fail modules by our spare modules, When all the spare modules use out, You can send back these modules for us to repair, and we will send to you after repair and testing aging well;
3. How to shipment?
Normally, our outdoor led display will be shipped by air and express (DHL, FedEx, UPS) and in the container by sea for the mass order.
4. Do you have any MOQ limit for led light order?
Low MOQ, 2 square meter or a module checking is available
5. What is the request for the power supply of P4.81 video wall?
The LED display screen is the big size precision equipment. To operate in security and stability, the AV 220V power supply input port of the LED display screen or the connected computers power supply input port need to connect with the ground.


Package :

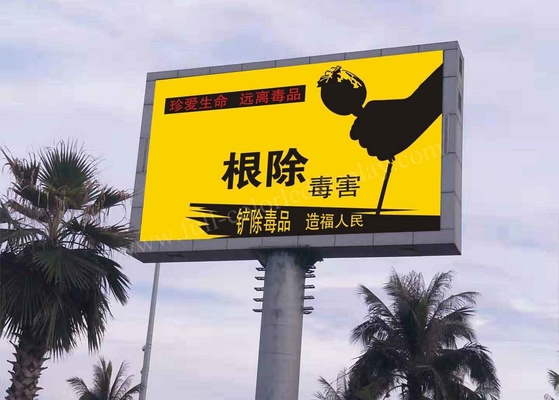

IP65 Fixed Outdoor Advertising Led Display Screen With S Video VGA DVI Input
