1920 Hz Full Color Indoor Led Display Screen Panel P4 High Refresh Rate 1/16 Scan

China 1920 Hz Full Color Indoor Led Display Screen Panel P4 High Refresh Rate 1/16 Scan supplier

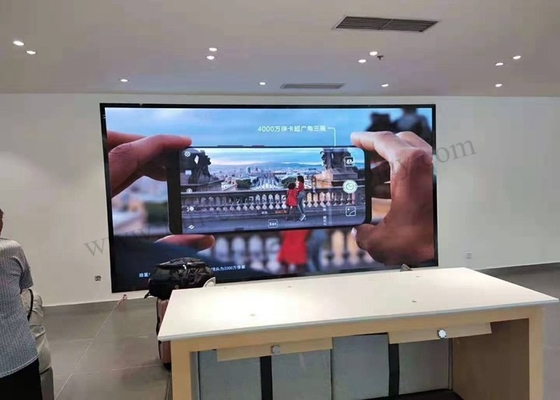

Large Image :  1920 Hz Full Color Indoor Led Display Screen Panel P4 High Refresh Rate 1/16 Scan

Product Details:

Place of Origin: China
Brand Name: Shenzhen LED World
Certification: RoHS,FCC,CCC,CE
Model Number: LW-FI 4

Payment & Shipping Terms:

Minimum Order Quantity: 1 square meter
Price: negotiable
Packaging Details: Plywood cartons or wooden case
Delivery Time: 15~18 days after receiving the deposit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2000 square meter /Month
Contact Now
Detailed Product Description
MTBF: 10,000 Hours Gray Scale: 65536
Control Method: Synchronization Pratical Standard: CCC TUV-CE ETL Etc
Screen Dimension: 256mm X 128mm Tube Chip Color: Full Color
Pixels: P4 Led Chip: Epistar
Application: Indoor Advertising Refresh Rate: ≥1920 Hz



Indoor Fixed LED Display Panel P4 High Refresh Rate 1/16 Scan

Features:

  • qualified by CE,RoHS,FC;
  • Big viewing angle to 150 degrees at horizontal line, 120 degrees at vertical line, you can see at every angle at this range, no picture change, no color excursion;
  • Brightness adjustable;
  • Refresh rate>2400HZ, 2 times higher than the regular
  • screen, suitable for the rental occasion which requires much more higher display capability. Super-light aluminum-alloy connectors are durable and artistic;
  • With a light output more than 1,200 Nits and native 16-bit color processing, it is sure to deliver the pinnacle of image quality in all circumstances;
  • High resolution, With high density, High definition LED display screen is able to produce quality graphic & video;
  • Low power consumption, more energy-saving;
  • Quality ensured by CPIC and 3-year QA;
  • Key advances in wall-mounted with front access is convenient for easy installation and maintenance;



Parameter:


P4 SMD2121 Indoor Full Color LED Screen Specification
Pixel pitch4mm
Pixel Configuration1R1G1B
LED componentSMD2121 black
Size of module256mm x 128mm
Resolution of module64x32
Size of cabinet512mm x 768mm x 100mm
Resolution of cabinet128x192
Material of CabinetIron/Aluminum
Weight of Cabinet17KGS
Brightness>1500cd/sq.m
Density62500dots/sq.m
Best viewing angle140 /140
Pixel Configuration1R1G1B
Best viewing distance3-50M
Maximum power consumption1200W/sq.m
Average power consumption640W/sq.m
Driving method1/16 scan
Control methodSynchronization
Grayscale65536
Colors256*256*256
Color temperature3200-9300k
Uniformity97%
Working voltageAC220V/110V±10%
Working temperature-20ºC~+50ºC±10%
Working humidity10% ~ 90%
MTBF10,000 hours
Frame frequency50/60Hz
Refresh frequency>3000Hz
IP gradeIP31
Life Span100,000 hours
Data transfer methodRJ45
Practical standardCCC TUV-CE ETL etc.
Effective CommunicationUnshielded twisted-pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay)Single-mode optic fiber: 10KM
Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platformWINDOWS(WINXP, WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.



Our service:

  • Two years warranty for the whole system except the human factor and force majeure
  • Other services, such as special packing design, factory visiting and so on;
  • Professional staffs answer all your question in fluent English;
  • Delivery----Mostly we can ship goods as arranged schedule;
  • We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory;
  • We also could solve problems for you until it recovers well by remote control;
  • Customized solution with a professional technical team.
