Product Details:
Payment & Shipping Terms:
|
Average.power(W/m2): | 120w | IP Grade: | IP65/IP54 |
---|---|---|---|
Cabinet Size(mm): | 576×576×80 | Brightness(nits): | ≥5000 Nits |
Viewing Angle: | X,Y140° | LED Type: | Smd3535 |
Parameters LW-RO 6 Pixel Pitch (mm) 6mm Pixel Density(pix/m2) 27777 LED Type 3535 Viewing An: | 6mm | Color: | 1R1G1B |
Refresh Rate: | 1920/3840 | Power Supply: | Meanwell Optional |
High Light: | led panel rental,led screen hire |
outdoor rental 576x576mm-P6.pdf

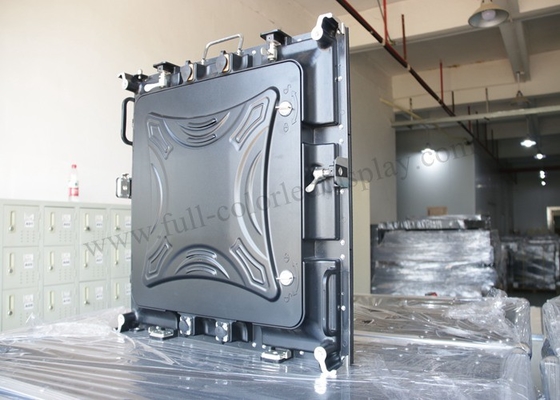

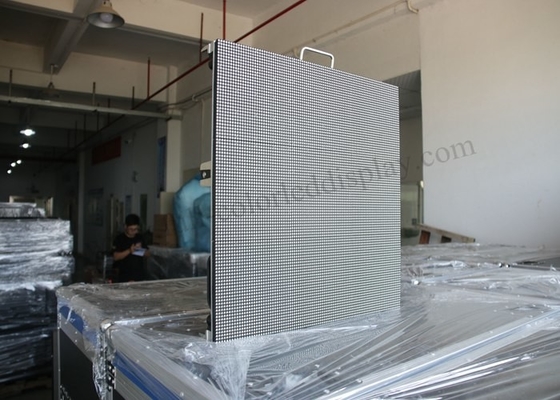

Mobile P6 Outdoor Rental LED Display Board S-VIDEO HDMI DVI Signal Input
P6 Outdoor Rental LED Display features:
P6 Outdoor Rental LED Display Parameters:
Parameters | LW-RO 6 | ||
Pixel Pitch (mm) | 6mm | ||
Pixel density(pix/m2) | 27777 | ||
LED Type | 3535 | ||
Viewing Angle | X,Y140° | ||
Brightness(nits) | ≥5000 | ||
Drive Method | 1/16 | ||
Color Depth | 65536 | ||
Refresh Rate(Hz) | 1920 | ||
Module Size (mm) | 192×192×16 | ||
Cabinet Size(mm) | 576×576×80 | ||
Cabinet Material | aluminum | ||
Cabinet weight(kg) | 12 | ||
Voltage | 200-240V | ||
Average.power(W/m2) | 120 | ||
Max.power (W/m2) | 700 | ||
IP Grade | IP65/IP54 | ||
Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH | ||
Storage temperature/ humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH | ||
Lifetime(h) | ≥50000 | ||
Compliant Standard | CCC(CE)Rosh | ||
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
Our service:
FQA:
1. What is a pixel?
The minimum luminous pixel LED display, with ordinary computer monitor, said the ""pixel"" the same meaning;
2. What is your terms of delivery?
We accept EXW, FOB, CFR, CIFetc. You can choose the one which is the most convenient or cost effective for you.
3. What s your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air shippingor sea shipping
4. What about the lead time?
Order less than 100 square meter led time take 15 working days
5. Are you a factory or trading company?
We are a factory.
