Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 2.5mm | Red LED Wave Length: | 620-625nm |
|---|---|---|---|
| Green LED Wave Length: | 514-535nm | Blue LED Wave Length: | 460-475nm |
| Lamp: | SMD2121/SMD2020 Black | Drive Model: | 1/24 Scan |
| Control Method: | Synchronous/asynchronous | Transfer Board: | Hub75 |
| High Light: | Led Screen Modules,Waterproof Led Module |
||

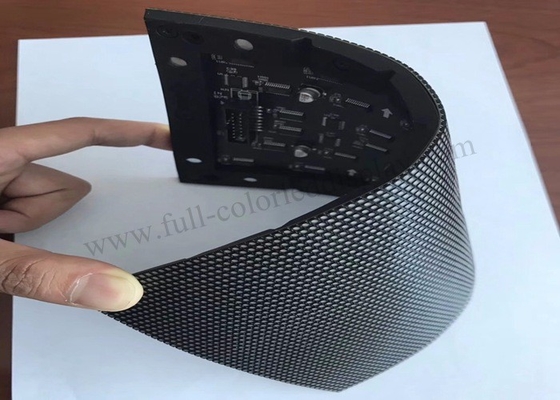

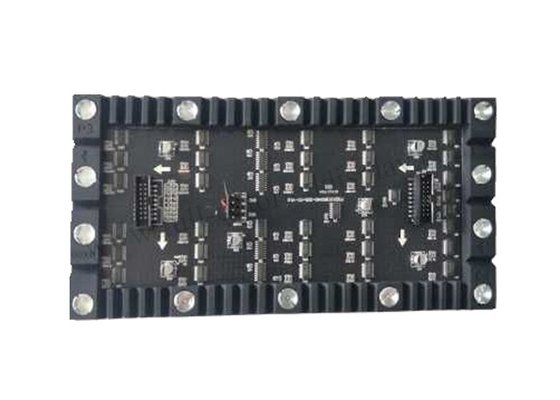

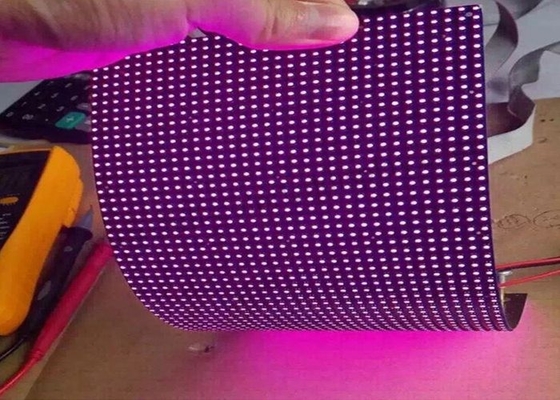

P2.5 P3 P4 Full Color LED Flexible Screen Module 240X120mm With 120 Degree Bendable
Although today's LED flexible screens are difficult to fully adapt to the outdoors, they can also be placed in glass and displayed outwards
The soft screen fits the building well, which is more conducive to multi-angle viewing than the traditional LED display. If the clarity can be improved, it is possible to replace the cumbersome traditional LED display.
P2.5 P3 P4 LED Flexible Screen Module Feature:
P2.5 P3 P4 LED Flexible Screen Parameter:
| P2.5&P3&P4 Indoor flexible LED module parameter 240mm x 120 mm module/256mmx128mm |
|||||
| No. | Parameter | Value | |||
| led type | brightness | Wave Length | H/V Visual angle | ||
| 1 | Red LED | SMD2121/SMD2020 | 40-60 MCD | 620-625nm | 140°/120° |
| 2 | Green LED | SMD2121/SMD2020 | 110-180 MCD | 514-535nm | 140°/120° |
| 3 | Blue LED | SMD2121/SMD2020 | 20- 45 MCD | 460-475nm | 140°/120° |
| 4 | Pixel pitch | 2.5mm | 3mm | 4mm | 4mm |
| 5 | Lamp | SMD2121/SMD2020 black | |||
| 6 | Module size | 240mmx120mm | 240mmx120mm | 240mmx120mm | 256mmx128mm |
| 7 | Drive model | 1/24 scan | 1/20 scan | 1/15 scan | 1/16 scan |
| 8 | Pixel Configuration | 1R1G1B | |||
| 9 | Module Resolution | 96 dots x 48 dots | 80 dots x 60 dots | 60 dots x 30 dots | 64 dots x 32 dots |
| 10 | Module pixel | 4,608 pixel | 4,800 pixel | 1,800 pixel | 2,048 pixel |
| 11 | Brightness | 900 ~1200cd/M2 | |||
| 12 | Power | DC 5 v | |||
| 13 | Number of colors | 16bit | |||
| 14 | Discrete control point | ≤0.1‰ | |||
| 15 | Control method | Synchronous/asynchronous | |||
| 16 | Working temperature | -20°C~+50 °C | |||
| 17 | Working environment humidity | 10%~90% | |||
| 18 | Transfer board | hub75 | |||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||||
FQA:
1. What's the difference between DIP(1R1G1B) and SMD(One LED, 3 in 1)?
SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel;SMD(One LED), reduced the LED on the screens, it reduced grainy of the screen, and improve the uniformity of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.
2. How to order LED display?
Please tell me indoor or outdoor do you need, size of led display, where will be the application of led display.
Are you a factory? Yes, we are 9 years of factory, we have a very rich experience in production and development. you will get better service and delivery on time.
3. How to payment?
You can transfer payment by TT, West Union, Let us work together. Expecting your inquiry.
4. Is it OK to print my logo on the led Screen product?
Yes. Please inform us formally before our production and confirm the design firstly based on your project.
