Ultra thin SMD indoor full color led display screen 5mm Pixel Pitch 320×160mm Module

Name: Ultra thin SMD indoor full color led display screen 5mm Pixel Pitch 320×160mm Module
Brand: Shenzhen LED World
SKU: LW-RI 5
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (136 reviews)

Large Image : Ultra thin SMD indoor full color led display screen 5mm Pixel Pitch 320×160mm Module

Product Details:

Place of Origin:	China
Brand Name:	Shenzhen LED World
Certification:	CE,RoHS,FCC,CCC
Model Number:	LW-RI 5

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meter
Price:	negotiable
Packaging Details:	Carton/Plywood case/Flight case etc.
Delivery Time:	15~20 working days after deposit received
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	2000 sqm/month

Contact Now

Detailed Product Description

Pixel Pitch:	5MM	Module Weight:	0.68kg
Max. Power Consumption:	1,000 W/sq.m	Refresh Rate:	>1120Hz/S
Blue Wavelength:	470-475nm	Module Size:	320×160mm
Screen Dimension:	Customized	Warranty:	2 Years
Life Span:	100000hours	Refresh Rate:	1920/3840Hz
High Light:	Led Video Screen Hire , Ultra Thin Led Screen

Ultrathin 5mm SMD Indoor Rental LED Displays Screens Panels 320×160mm Module

P5 Indoor Rental LED Displays screens panels product Features:

The same size cabinet can be compatible with different specification displays of different DOT pixels P3 P3 75 P4 P5;
Compact base design so that the whole screen space can be smaller a lot;
Good thermal design Taking structural heat emitting to keep the cabinet a excellent heat dissipation even no fan installation;
Cabinets adopt rapid assembling sets Which can be beautiful but also a real rapid disassembling;
Higher IP rating New system High refresh rate High brightness True color output Breathtaking gray level;
The entire cabinet with die casting aluminum alloy material is more lightweight and practical;
User-friendly design more convenient installation more efficient and secure High strength high toughness and deformation; More reliable cabinet patchwork and cable connection;

Trade term:

Production lead time less 20 sqm: 8-15 days, more than 50 sqm: 30 days;
Service: Provide free technology support by phone and e-mail;
Sample can be deliveried within 3 days;
Shipping port: Shenzhen, Mainland China;
Delivery time: 10-25 working days;

P5 Indoor Rental LED Displays screens panels parameter:

P5 Full Color SMD3528 Indoor LED Display
Item	Unit	Parameter
Pixel Pitch	mm	5
Resolution of Module	dots	64×32
Module Size	mm	320×160
Cabinet Size	mm	640x640
Resolution of Cabinet	dots	128*128
Module Weight	kg	0.68kg
Pixel Configuration	1R1G1B
Drive Chip	SMD16126/IC5024 depend on your requirement
Chip Brand of LEDs	Epistar
Pixel Density	dots/sqm	40,000
Brightness (White Balance)	nits(cd/sq.m)	≥7000
Red Wavelength	nm	620-625
Green Wavelength	nm	520-525
Blue Wavelength	nm	470-475
Scan Mode	1/16 Scan
Viewing Distance	M	3--35
Best View Distance	M	5--15
Viewing Angle-Horizontal	deg.	120
Viewing Angle-Vertical	deg.	90
Module Maximum Power	W	25
Max. Power Consumption	W/sq.m	1,000
Avg. Power Consumption	W/sq.m	300
Working Voltage	5V 40A
Power Supply	AC 110/220V
Refresh Rate	Hz/S	>1120
Frame Rate	Hz/S	≥ 60
Gray Scale	4096 grades gray
Display Color	256256256
Display Function	Text,news,advertising,flash,animation
Input Signal	RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI,UXGA,COMPOSITION,etc.
Luminance Degradation	Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25°C.
Defective Dot Rate	<0.0001
Life Span	hours	100,000
MTBF	hours	>5,000
Storage Temperature	°C	45
Working Temperature	°C	-20 -- +60
Working Humidity	10-90%RH
Control System	Synchronization or Asynchronization
Quality Certificate	ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Why choose us:

Many produce lines work everyday for domestic and international orders;
Large viewing angle 160 degree Horinzontally and 140 degree vertically by using our specially designed mask;
We are led display manufacturer for many years, quality is guaranteed;
With special rigging system It is very convenient to hang the screen to truss It is very safe;

Our service:

Professional staffs answer all your question in fluent English;
Customer satisfaction tracking report.
After sales service----We have engineer to help you make configure of screens, set up customized size display effect through video wall controller, service within 24 hours.
Spare parts: necessary spare parts are provided together with products to customers;

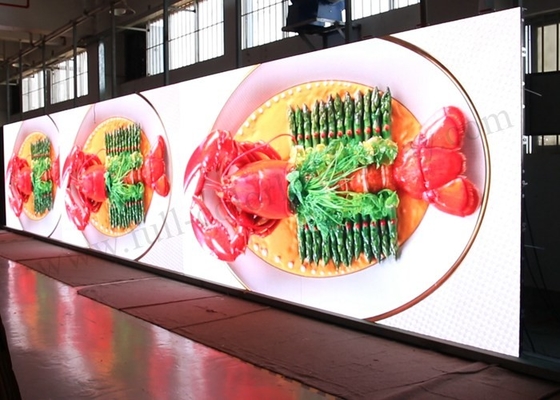

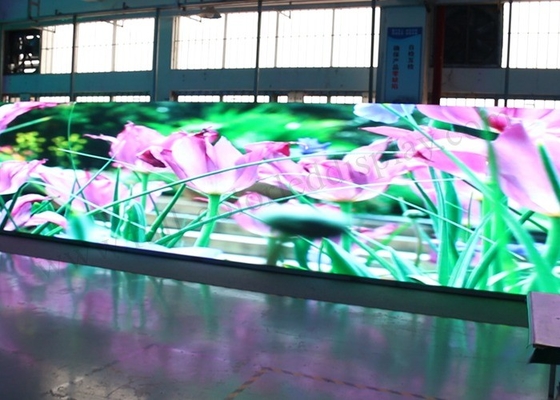

P5 Indoor Rental LED Displays screens panels detail:

Ultra thin SMD indoor full color led display screen 5mm Pixel Pitch 320×160mm Module 0

Ultra thin SMD indoor full color led display screen 5mm Pixel Pitch 320×160mm Module 1

Package:

Ultra thin SMD indoor full color led display screen 5mm Pixel Pitch 320×160mm Module 2
