Permanent Outdoor Fixed Led Display Panel Ultra Bright Tube Chip Color For Advertising

Permanent Outdoor Fixed Led Display Panel Ultra Bright Tube Chip Color For Advertising
Permanent Outdoor Fixed Led Display Panel Ultra Bright Tube Chip Color For Advertising
video play

Large Image :  Permanent Outdoor Fixed Led Display Panel Ultra Bright Tube Chip Color For Advertising

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE,RoHS,FCC,CCC
Model Number: LW-FO series
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: negotiable
Packaging Details: Carton/Plywood case etc.
Delivery Time: 10~20 days after receiving the deposit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5,000 square meters per month
Detailed Product Description
Gray Scale: 65536 IP Grade: IP65/IP54
View Angle: ≥120°/120° Cabinet Thickness: 18cm
Weight: P6 55Kgs/Cabient Usage: Outdoor
Screen Dimension: Customized Size Tube Chip Color: Ultra Bright
Display Function: Video,Animation,Graphics Refresh Rate: ≥1920 Hz
High Light:

commercial led display

,

large led display screen

Permanent Outdoor Fixed Led Display Panel For Advertising OEM / ODM Available

Features:

  • Refresh rate>2400HZ, 2 times higher than the regular screen, suitable for the rental occasion which requires much more higher display capability. Super-light aluminium alloy connectors are durable and artistic;
  • Signal power aviation connectors are water dust proof, stable and reliable;
  • Refresh rate ranging from 1920HZ to 3840HZ, no ghost;
  • High brightness, screen adjusts automatically;​
  • User friendly by front access magnet installation;
  • Easy to installation and maintain;
  • Direct low voltage power supply, low heat, no noise;
    Energy saving components;



Parameter:

No. Item P6 P8 P10 P12 P16 P20
1 Pixel Pitch 6mm 8mm 10mm 12mm 16mm 20mm
2 Pixel Configuration 1R1G1B,SMD3535 1R1G1B,DIP246 1R1G1B,DIP346 1R1G1B,DIP346 1R1G1B,DIP346 2R1G1B,DIP546
3 Pixel Density 27777pixels/sqm 15624pixels/sqm 10000pixels/sqm 6944pixels/sqm 3906pixels/sqm 2500pixels/sqm
4 Module size 192mm*192mm 256mm*128mm 160mm*160mm 192mm*192mm 256mm*128mm 320mm*160mm
5 Module Resolution 32*32pixels 32*16pixels 16*16Pixels 16*16pixels 16*8pixels 16*8Pixels
6 Cabinet size 960*960mm 1024*1024mm 960*960mm 960*960mm 1024*1024mm 960*960mm
7 Cabinet Resolution 160*160Pixels 128*128Pixels 96*96Pixels 80*80Pixels 64*64Pixels 48*48Pixels
8 Cabinet Type Fixed installation Type, Iron Material Fixed installation Type, Iron Material
9 Cabinet Thickness 17cm 18cm 18cm 18cm 18cm 18cm
10 Weight 55Kgs/Cabient 63Kgs/Cabient 55Kgs/Cabient 55Kgs/Cabient 63Kgs/Cabient 55Kgs/Cabient
11 Brightness >7000cd/sqm >7000cd/sqm >7000cd/sqm >7000cd/sqm >6500cd/sqm >6500cd/sqm
12 Refresh rate >1500HZ >1500HZ >1500HZ >1500HZ >1500HZ >1500HZ
13 Gray scale 65536 65536 65536 65536 65536 65536
14 View angle ≥120°/120° ≥120°/120° ≥120°/120° ≥120°/120° ≥120°/120° ≥120°/120°
(H/V)
15 Max Power 1400W/Cabinet 1400W/Cabinet 1200W/Cabinet 1200W/Cabinet 1200W/Cabinet 1200W/Cabinet
consumption
16 Average Power 600W/Cabinet 600W/Cabinet 500W/Cabinet 500W/Cabinet 500W/Cabinet 500W/Cabinet
consumption
17 Input Voltage 220V 220V 220V 220V 220V 220V
18 Working temperature -20~45 -20~45 -20~45 -20~45 -20~45 -20~45
19 Working Humidity 10%-90%RH 10%-90%RH 10%-90%RH 10%-90%RH 10%-90%RH 10%-90%RH
20 IP Grade IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.





Why choose us:

  • all of our led module has highly resolution, good image effect,and easy to install and convenient to carry;
  • Strong R D team ensures products with nice features;
  • Close Relationships with Raw Material Providers
  • We have very close and strategic relationship with the raw material providers which support the stable quality of our products;
  • We are factory manufacturer and we control our cost very well we can give the real benefits to our customers;"
  • High refresh rate guarantee no scaning lines when taken photo or video;
  • Many produce lines work everyday for domestic and international orders;​

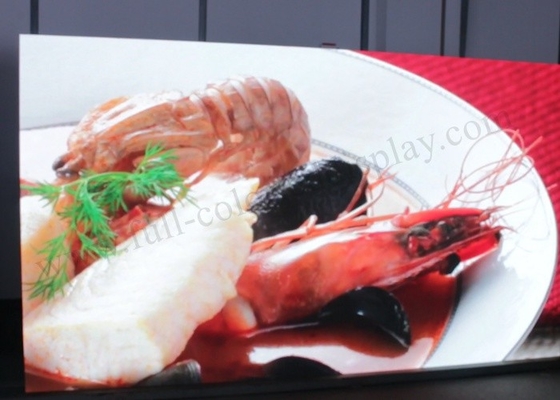

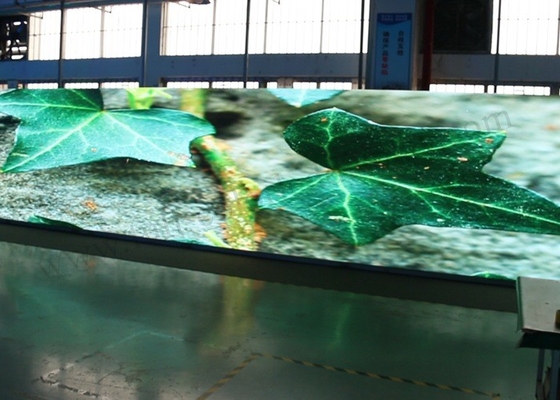

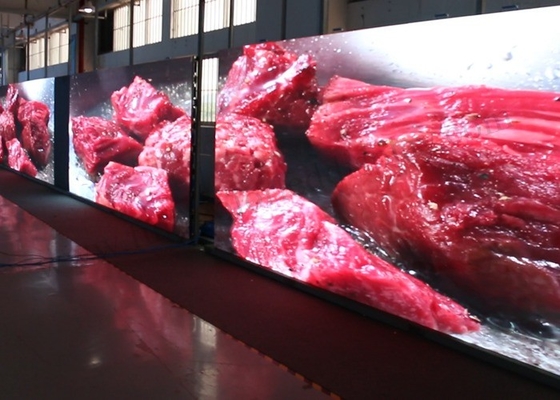

Product detail:

 Permanent Outdoor Fixed Led Display Panel Ultra Bright Tube Chip Color For Advertising 0Permanent Outdoor Fixed Led Display Panel Ultra Bright Tube Chip Color For Advertising 1



Package:



Permanent Outdoor Fixed Led Display Panel Ultra Bright Tube Chip Color For Advertising 2
