14 Bit 6mm Outside Led Video Wall Screen Permanent With Nova Linsn Control System

14 Bit 6mm Outside Led Video Wall Screen Permanent With Nova Linsn Control System
14 Bit 6mm Outside Led Video Wall Screen Permanent With Nova Linsn Control System 14 Bit 6mm Outside Led Video Wall Screen Permanent With Nova Linsn Control System 14 Bit 6mm Outside Led Video Wall Screen Permanent With Nova Linsn Control System

Large Image :  14 Bit 6mm Outside Led Video Wall Screen Permanent With Nova Linsn Control System

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE,RoHS,FCC
Model Number: LW-FO 6
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: Negotiation
Packaging Details: Carton/Plywood case etc.
Delivery Time: 12-20 working days after received your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3,000 square meters per month
Detailed Product Description
Module Size: 192mm×96mm Colors: 16777216
Brightness: ≥6000cd/m2 Gray Scale: 16bits Of Per Color
MTBF: More Than 10,000 Hours Vertical Viewing Angle: 120°
Usage: Outdoor Screen Dimension: Customized Size
Tube Chip Color: Full Color Refresh Rate: 1920/3840
High Light:

led advertising board

,

high brightness led display

14 Bit 6mm Outside Led Video Wall Screen permanent With Nova Linsn Control System​



Features:

  • High brightness, more than 6500 nits;
  • Kinglight LED lamp and Macroblock 5124 made;
  • Cabinet weight is only 9.3 kg, depth 73 mm, decreasing the transportation cost and the intensity of labor.
  • Super thin power supply inside; Quiet fan design, excellent heat dissipation, noiseless;
  • Durable lamp, working hour more than 100,000 hours;
  • San’an LED lamp and Macroblock 5124 IC made;
  • Low cost for maintenance by only replacing the malfunctioned piece;



Application:

Wide applied in show,large events,government project,chain shop,conference,HR market,tennis,commercial applications,insurance company,fitness hall,mansion video wall,bank,touring and so on .



​Parameter:

Numbers Technical indexes Specification
1 Pixel pitch 6mm
2 Module size 192mm×96mm
3 Module resolution 32×16
4 Module density 27,777dots/sqm
5 Pixel configuration Full color
6 Red wavelength 625±2nm
7 Green wavelength 525±2nm
8 Blue wavelength 470±2nm
9 Colors 16777216
10 Best viewing distance more than 5m
11 Horizontal viewing angle 140°
12 Vertical viewing angle 120°
13 Maximum power consumption ≤500W/2
14 Brightness ≥6000cd/m2
15 Gray scale 16bits of per color
16 Color temperature 6500K
17 Control method Synchronization or Asynchronization
18 Driving method 1/8scanning
19 Frame frequency 480Hz
20 Refresh frequency ≥2000 Hz
21 Working voltage AC220V/110V±10%
22 IP grade IP53
23 Working temperature -20°C~80°C
24 MTBF More than 10,000 hours
25 life span more than 100,000 hours
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.



Our service:

  • Quality test report for every order;
  • Data sheet and samples offer;
  • We also could solve problems for you until it recovers well by remote control;
  • Other services, such as special packing design, factory visiting and so on;
  • Special discount and protection of sales area provided to our distributor;
  • Tracking report in producing;
  • We can send our engineer on site to guide the installation for you. The relevant costs should be paid by your esteemed company, such as visa, hotel, food, plane ticket back and so on;
  • We provide technology training for free, which contains the operation and maintenance training of the LED screens in factory;





Product detail:

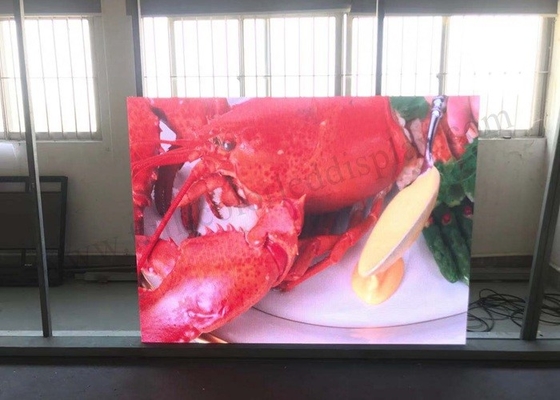

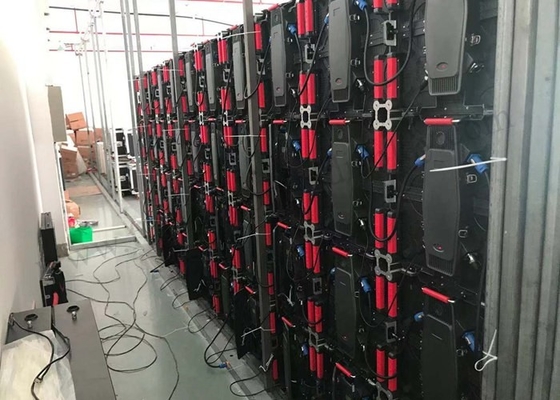

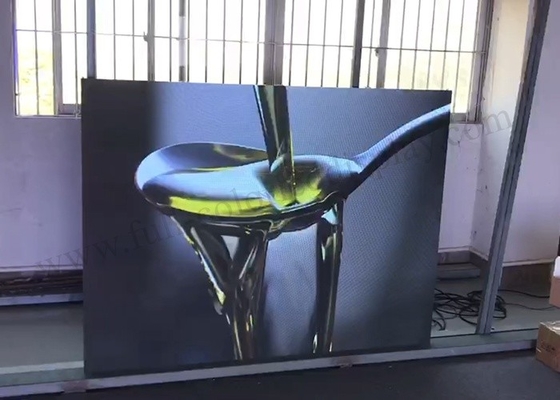

14 Bit 6mm Outside Led Video Wall Screen Permanent With Nova Linsn Control System 014 Bit 6mm Outside Led Video Wall Screen Permanent With Nova Linsn Control System 1
