CCC P5 SMD2727 Outdoor Fixed LED Display 5500nits For Advertising

CCC P5 SMD2727 Outdoor Fixed LED Display 5500nits For Advertising
CCC P5 SMD2727 Outdoor Fixed LED Display 5500nits For Advertising
video play

Large Image :  CCC P5 SMD2727 Outdoor Fixed LED Display 5500nits For Advertising

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE,RoHS,FCC,CCC
Model Number: LW-FO P5
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: negotiable
Packaging Details: Carton/Plywood case etc.
Delivery Time: 10~20 days after receiving the deposit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5,000 square meters per month
Detailed Product Description
Moduel Size: 192x192mm Module Resolution: 32×16
Cabinet Weight: 36KG Pixel Pitch: 5mm
Cabinet Size: Customized Color Temperature: 6500K
Green Wavelength: 525±2nm Red Wavelength: 625±2nm
High Light:

SMD2727 Outdoor Fixed LED Display


CCC Outdoor Fixed LED Display


5500nits Fixed LED Advertising Display

P5 Outdoor Led Display Front Service Easy To Install And Maintain For Commercial Advertising Use




1.Uniform color and high contrast ratio, bringing up the fresh and natural image ;
2.Low power consumption and fine heat release ;
3.Super wide viewing angle increasing its value by covering more audience ;
4.No deformation under sunlight by the use of anti-UV modules ;
5.High protection grade of IP65 achieved by patented mask design with waterproof and dustproof function ;
6.Safe and reliable operation ensured by stable signal and power supply



Parameter P5
Pixel pitch 5mm
LED Type SMD2727
Scan Styple 1/8
Resolution 409600 Pixel/sqm
Module size(mm) 192x192mm
Panel Size(mm) 960x960mm or customized
Refresh rate >2800
Brightness 5500nits
Max Power/ panel 1300W/sqm
Weight per cabinet 36KG
Best viewing distance 5M
Cabinet material Die-casting aluminum
Operating temperature ,-20ºC----+50ºC( Special power supply can meet -40ºC-----+60ºC)
Operating humidity 10%---%95RH
Operating system Windows 2000 / Windows XP / Windows 7/win8 /win 8.1
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.


Wide applied in campus, large entertainment plaza, cafe, TV studio, banquet, station waiting area, Lobby, hospital, and so on.

Our company:

Shenzhen LED World co.,ltd is professional development manufacturing LED display system products, was founded in 2007, with registered capital of 30 million, its own workshop area of 9000 m2, branch office and agents cover all over China, with about 400 employees.


Products are exported to USA, Mexico, Netherlands, Greece, Spain, Italy, UK, Uganda, Nigeria, Russia, India, Turkey, Thailand, Vietnam, Brazil, Australia, etc more than 50 countries and regions, and gained good reputation from the clients


Our company in good faith and pragmatic attitude to do things, to continuous innovation, and constantly optimize product and service, attention to detail, excellence, is committed to creating value for customers, to meet users’ demand as own duty. Super quality, reasonable price, and perfect service is our unremitting pursuit, long-term adherence to the “high quality occupies the market, good service to win customers, full efforts to create benefit” the quality policy with the advanced concept, professional team and strict management constantly enterprising, efforts to the industry to create a first-class brand. Let us join hands & create a brilliant future
Product detail:

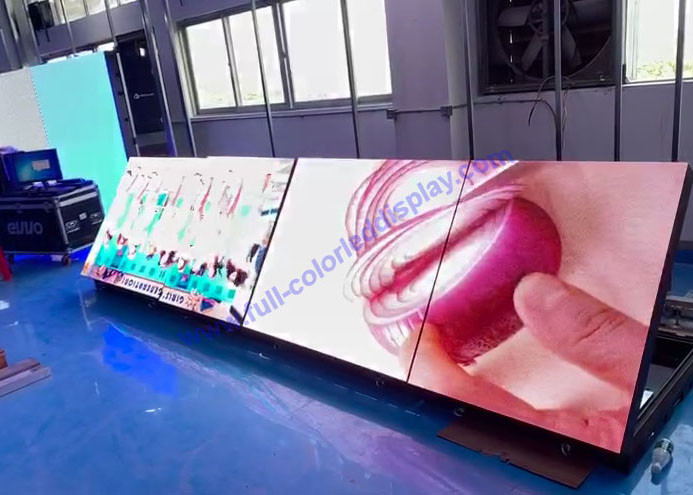

CCC P5 SMD2727 Outdoor Fixed LED Display 5500nits For Advertising 0

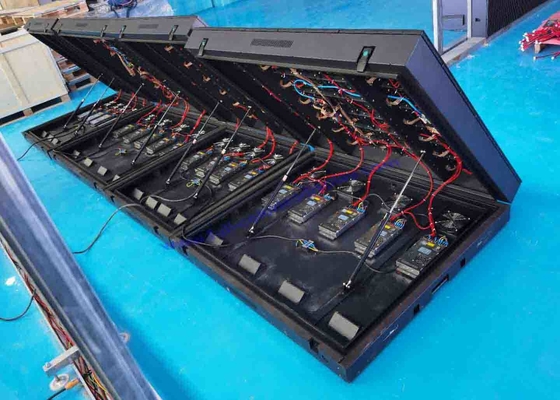

CCC P5 SMD2727 Outdoor Fixed LED Display 5500nits For Advertising 1
