| Thickness Of Module (mm): | 17.05(No Magnet) | Size Of Cabinet(mm): | 960*960 |
|---|---|---|---|
| Working Voltage(V): | AC220V±10% | Scan And Control Method: | 1/8 Synchronous Control |
| Level Of Gray: | 65536 | Size Of Module(mm): | 320*160 Mm |
| Driving Method: | Constant Current Driving | Best Viewing Angle: | >5m |
| High Light: | SMD2727 Advertising Digital Signage,P5 Waterproof Advertising Digital Signage,5500nits Digital Advertising Boards |
||
P5 Waterproof Advertising Digital Signage With Synchronous Control System For Advertising
P5 Outdoor Full Color LED Display features:
1. Ultra-light.
Diecasting Mag alloy density is 2/3 of Alloy and 1/4 of steel, which makes the cabinet more lightweight compared to the same size of steel and Aluminum cabinet. Its specific strength and stiffness and also better than steel and aluminum alloy.
2.Ultra-thin.
Easy to shape up a product by, magnesium alloy, which can make high-end, thin products and make the cabinet thickness thinner
3.Excellent vibration absorption.
For example, in stress level 35MPa, Magnesium alloy AZ91D attenuation coefficient is 25%, the Aluminum alloy is only 1%in stress level 100MPa, Magnesium alloy AZ91D, AM60, AS41 is 53%,72% and70%, Aluminum alloy A380 is only 4%. Magnesium alloy is good for noise reduction.
4.Dimension stable.
Temperature and time variation has less effect on the instability of Magnesium alloy diecasting product, which have higher precision after the CNC process.
5.Excellent heat dissipation.
Fasting cooling--excellent heat dissipation performance to protect the modular circuit
6. Excellent heat property.
Compare to other materials, Magnesium alloy heave better radiation protection and anti-interference capacity, make sure the screen works well.
7. High universality can be processed according to module drawing, used for outdoor and indoor
P5 Outdoor Full Color LED Display parameter:
| Module | Parameter NO. | P5 | P10 |
| Size of Module(mm) | 320*160 | 350*160 | |
| Pixel Density(dots/m²) | 40000 dots/m² | 15625 dots/m² | |
| Pixel Pitch(mm) | 5mm | 8mm | |
| LED Encapsulation | SMD2727 | SMD3535 | |
| Resolution of Module(dots) | 64(W)*32(H) | 32(W)*16(H) | |
| The thickness of Module (mm) | 17.05(No magnet) | 17.05(No magnet) | |
| Weight of Module (Kg) | 0.5 | 0.5 | |
| Driving Method | Constant Current Driving | Constant Current Driving | |
| Equilibrium Brightness(CD//m²) | ≥5500 CD/m² | ≥6500 CD/m² | |
| Bracket | Size(mm) | 160*160 | 160*160 |
| 320*160 | 320*320 | ||
| Cabinet | Size of Cabinet(mm) | 960*960 | 960*960 |
| 960*960 | |||
| Power Supply Mode | 5V/40A*1PC | 5V/40A*1PC | |
| Best Viewing Distance(m) | >5m | >10m | |
| Best Viewing Angle | 160(W) 120(H) | 160(W) 120(H) | |
| Storage Temperature(ºC) | -35ºC ~ +85ºC | -35ºC ~ +85ºC | |
| Working Temperature(ºC) | -40ºC ~ +50ºC | -40ºC ~ +50ºC | |
| Relative Humidity | 10%-95% | 10%-95% | |
| Power Supply | Working Voltage(V) | AC220V±10% | AC220V±10% |
| Average Power Consumption(W/m²) | ≤500 W/m² | ≤380 W/m² | |
| Max Consumption(W/m²) | ≤1000 W/m² | ≤760 W/m² | |
| Control System | Scan and Control Method | 1/8 Synchronous Control | 1/2 Synchronous Control |
| Driving Components | Constant current Driving | Constant current Driving | |
| Technical Parameters | Refresh Frequency | ≥1920 Hz/Sec | ≥1920 Hz/Sec |
| (HZ) | |||
| Frame Frequency | ≥60 HZ/Sec | ≥60 HZ/Sec | |
| (HZ) | |||
| Level of Brightness/Color | RGB256 | RGB256 | |
| Level of Gray | 65536 | 65536 | |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||
Our service:
1. Pre-Sales service
Inquiry and consulting support.
Sample testing support.
View our Factory.
2. After-Sales service
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.

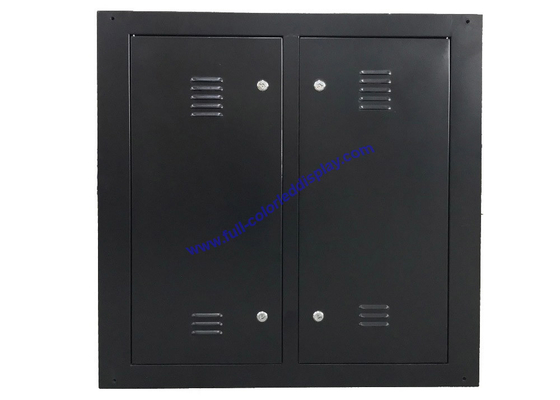

P5 Outdoor Full Color LED Display Cabinets Details:
