Magnesium Alloy Full Color LED Display 5500nits 105mm Thickness Outdoor

video play

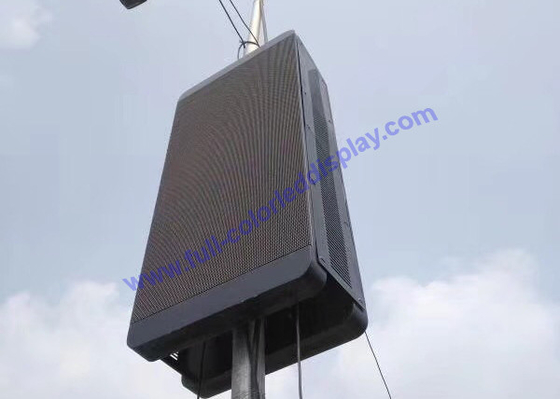

Large Image :  Magnesium Alloy Full Color LED Display 5500nits 105mm Thickness Outdoor

Product Details:
Place of Origin: Shenzhen, China
Brand Name: LED WORLD
Certification: CE, ROHS ,
Model Number: LW-FO P5 P8 P10
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: 888$/sqm
Packaging Details: wooden case , flight case , carton
Delivery Time: 12- 25 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per month
Detailed Product Description
Material: Magnesium Alloy Color: RGB
Brightness: >5500nits Thickness: 105mm
Scan: 1/8 Pixel Pitch: 5mm, 8mm, 10mm
Installlation: Fixed And Rental Usage: Advertising
High Light:

Magnesium Alloy Full Color LED Display


5500nits Full Color LED Display


105mm Thickness Outdoor Led Display

Alloy And Cost-Effective Multi-Functional Full Color Outdoor Led Display For Advertising



  1. Compatible with P4, P5, P6.67, P8, P10 Outdoor LED display
  2. Both rental and fixed installation
  3. Lightweight, 25.8 kg/cabinet
  4. Very thin, only 102 mm
  5. Cost-effective multifunctional Outdoor LED display
  6. Good anti-rust performance


  1. 960mm x 960mm alloy die-casting cabinet, suitable for P4, P5, P6.67, P8, P10
  2. The weight is very light, only 25 kg/cabinet;
  3. It is very thin, only 102 mm
  4. Used for both rental and fixed installation;
  5. With top hat, legs, and soft masks for stadium application;
  6. Power connectors & ethernet connectors & fast locks design to realize quick assemble and disassemble
  7. Waterproof front IP65, back IP54
  8. High precision machining, the flatness better than normal cabinet
  9. Both for front and rear service




Products OF5 OF8 OF10
Pixel Pitch(mm) 5 8 10
Pixel Matrix Per Sq.m 40000 15625 10000
Pixel Configuration SMD2727 SMD3535 SMD3535
Brightness (nits) 6500 6800 7500
Scan 1/8 1/4 1/2
Module Dimension 160x160mm / 0.52x0.52ft 320x160mm / 1.05x0.52ft 320x160mm / 1.05x0.52ft
Cabinet Dimension 960x960mm / 3.15x3.15ft 960x960mm / 3.15x3.15ft 960x960mm / 3.15x3.15ft
Cabinet Resolution 192x192 120x120 96x96
Cabinet Weight 43kg / 95Ib (Iron) 41kg / 90Ib (Iron) 40kg / 88Ib ( Iron)
Power Con. (Max / Avg) 730 / 130 w/sq.m 680 / 120 w/sq.m 650 / 110 w/sq.m
