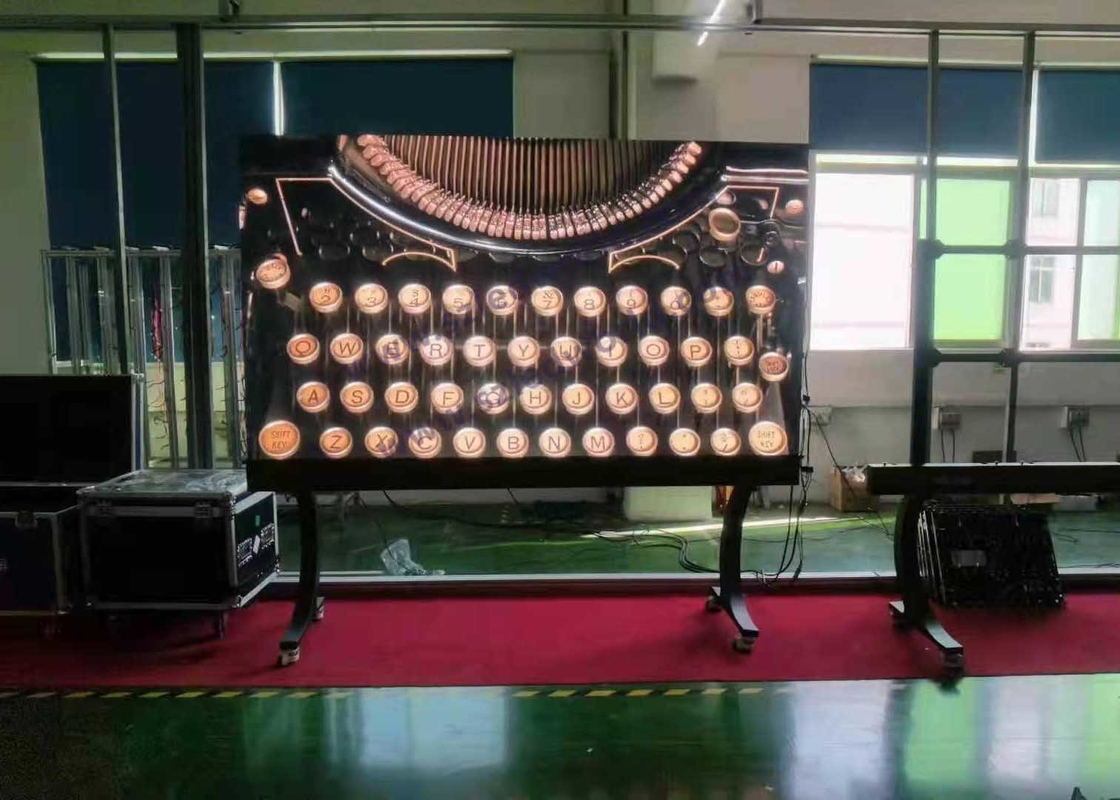

10m RGB Outdoor Fixed LED Display IP65 Waterproof SMD3535 HDMI SDI

10m RGB Outdoor Fixed LED Display IP65 Waterproof SMD3535 HDMI SDI
10m RGB Outdoor Fixed LED Display IP65 Waterproof SMD3535 HDMI SDI
video play

Large Image :  10m RGB Outdoor Fixed LED Display IP65 Waterproof SMD3535 HDMI SDI

Product Details:
Place of Origin: Shenzhen, China
Brand Name: LED WORLD
Certification: CE, ROHS
Model Number: Outdoor iron cabinets
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: Negotiable
Packaging Details: wooden case , flight case , carton
Delivery Time: 12- 25 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per month
Detailed Product Description
IP Grade: IP65 Configuration: SMD3535
Cabinet Material: Iron Pixel Pitch: 10mm
Function: Events Cabinet Weight(: 25 Kg
Drive Model: 1/2 Viewing Distance: >10m
High Light:

10m RGB Outdoor Fixed LED Display

,

HDMI SDI Outdoor Fixed LED Display

,

SMD3535 Outdoor Waterproof LED Display

Back Service RGB Led Outdoor Display Screen With IP65 Waterproof Grade



Features:



1, waterproof design of the cabinet, greatly protect cabinet in any outdoor environment;
2, Made with SMD3535 LED lamps, high contrast and wide view angle up to 140/140(H/V);
3, High brightness up to 5500nits;
4, SMD 3-in-I technology, big visual angel, no deformation of pictures;
5, Work normally without air conditioning for low power consumption;
6, Customized design is available;
7, High Contras ratio (2000: 1) with a black mask and black coating technique;



Specification:



NO Item Technical Parameter
1 Standard Cabinet Size 960*960mm
2 Brightness/Adjustment 4500-6500cd/m2,Automatically 16levels/Manual switch 100 levels
3 View angle(Horizontal/Vertical) ≥140°(Horizontal,≥120°(Vertical)
4 Best view distance 10-100M
5 Gray degree 65536 levels adjustable
6 Color temperature 7000-15000K adjustable
7 Frame frequency ≥60Hz
8 Refresh frequency ≥1920Hz
9 Input signal/Control code Composite,S-video,Component,VGA,DVI,HDMI,SDI,HD-SDI
10 Scan Mode 8S 6S 3S 5S 2S Static Static
11 Driving mode Constant current driving
12 Display color 16777216 colors
13 Continuous working time >24Hrs
14 Screen lifetime >100,000Hrs
15 MTBF(Average no error lifetime) >5000Hrs
16 Max.Power Consumption 480-850W/m2
17 Ave.Power Consumption 150-260W/m2
18 Out of control pixel rate ≤3/10,000(discrete distribution)
19 Control Distance 100M(Ethernet) 500M(Multi-fiber) 10KM(Single-fiber)
20 Flatness Screen surface≤0.5mm, pixel pitch≤0.3mm
21 Operation Temperature -10°C~+85°C
22 Operation Humidity 10%~98%RH
23 Storage Temperature -40°C~+85°C
24 Software Connection Standard Computer Connection, Compatible with Windows, Unix, Novell
25 Protection system Over-temperature/overload/power/image compensation/nonlinear correction
26 Working Voltage 200-240V
27 Dielectric Strength 50Hz/1500V(AC RMS)/1min
28 Temperature Rise Metal≤40K, Insulation≤65K, After Heat balance
29 IP Grade IP67
30 Computer display mode 1024*768
31 Software Connection LED Professional Media Player









FAQ:


1. How about the size of the project?
Please offer the size with the "width by height" of the project. We will offer a suitable solution for your project size. I will appreciate it if any drawing files about installation were offered.


2. What is the viewing angle?
A viewing angle is the maximum angle at which a display can be viewed with an acceptable visual performance. It includes a horizontal viewing angle and a vertical viewing angle.


3. What is your quality guarantee?
The life span of LED display screens is more than 100,000 hours
All our LED displays have CE, FCC certificates


4. What are LED Types?
LED Type is the description of an LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.


5. What's the controlling system?
Our standard controlling system for this model is Linsn/ Novastar. Also support another controlling system, like HD, Xixun, TF, Colorlight, etc;



Warm Notice:



1. The unit price depends on the quantity, we can offer you a competitive price.
2. Your inquiry related to our products or prices will be replied to in 24hrs.
3. Well-trained and experienced staff to answer all your inquiries in fluent English.
4. Distributorship is offered for your unique design and some of our current models.
5. Protection of your sales area, ideas of design, and all your private information.
