Product Details:
Payment & Shipping Terms:
|
| Power: | 1300 | Cabinet Weight(: | 24 Kg |
|---|---|---|---|
| Consumption: | 300 | Function: | Satge Events |
| Cabinet S: | 960x960mm | Brightness: | 5500nits |
| Configuration: | SMD2525 | Pixel Density: | 62500 Dots/m2 |
| High Light: | 5500nits Video LED Stage Screen,SMD2525 LED Stage Screen,Aluminum Cabinet Led Stage Backdrop |
||

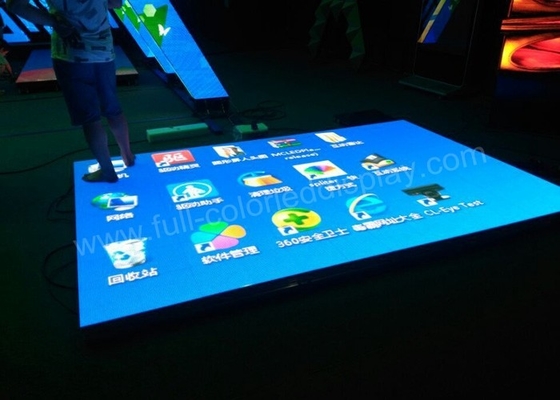

Video LED Stage Screen Panel Board Outdoor / Indoor For Events
Features:
Specification:
| Items | P4mm | P5mm | P6mm | P8mm | P10mm |
| Pixel | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Configuration | SMD2525 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Pixel Pitch | 4mm | 5mm | 6mm | 8mm | 10mm |
| Pixel Density | 62500 dots/m2 | 40000 dots/m2 | 27777 dots/m2 | 15625 dots/m2 | 10000 dots/m2 |
| Module Size(mm) | 256x128 | 160x160 | 192x96or 192x192 | 256x128 | 320x160 |
| Pixels/Module | 64x32 | 32x32 | 32x16 or 32x32 | 32x16 | 32x16 |
| Cabinet Size(mm) | 768x768 | 960x960 | 960x960 | 1024x1024 | 960x960 |
| Pixels/Cabinet | 192x192 | 192x192 | 160x160 | 128x128 | 96x96 |
| Cabinet Weight | 24KG | 36KG | 36KG | 41KG | 36KG |
| Brightness | >5500cd/ | >5500cd/ | >6000cd/ | >5000cd/ | 7000cd/ |
| Viewing Distance | >4m | >5m | >6m | >8m | >10m |
| Power | Max: 1300 | Max: 1300 | Max: 1300 | Max: 1000 | Max: 1000 |
| Consumption(W/) | Ave: 300 | Ave: 300 | Ave: 260 | Ave: 260 | Ave: 300 |
| Driver Mode | 1/8 scan | 1/8 scan | 1/4 scan or 1/8 | 1/4 scan or 1/8 | 1/2 scan |
| Viewing Angle | H: 120°; V: 120° | ||||
| Cabinet Material | Cold Rolled Steel or aluminum | ||||
| Refresh Rate | 300-3000HZ adjustable | ||||
| LED Life | 100,000 hours | ||||
| Supply Voltage | AC220V/50HZ; AC110V/60HZ | ||||
| Operating Temperature | -20ºC ~ +50ºC | ||||
| Operating Humidity | 10% - 90% | ||||
| Gray Scale | Red, Green, and Blue each 16K | ||||
| Display Color | 4096 Billion | ||||
| IP Rating | Front IP65 | ||||
| Display Capability | Text, Graph, and Video | ||||
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |||||
FAQ:
1. What are the installation requirements of the LED display screen?
Power supply: the power supply connector must be matched for the size of the LED display screen.
220V electricity power supply, live wire, neutral/null wire, and the earth wire.
380V electricity power supply, three live wires, neutral/null wire, and the earth wire.
The intercept area of the live wire is the same as the null
2. What are your products packing?
We provide 3 kinds of packing cases: carton paper case, wooden packing case, and flight packing case. Carton paper case for the led module; Wooden packing case for heavy iron cabinet; Flight packing case for rental aluminum die-casting cabinet;
3. How long will it take to deliver goods?
We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working days after we get your payment
4. Can you assign an engineer to our site to guide the installation if we require it?
Yes. We have qualified and experienced engineers who are ready to service for you ;
5. Are you the manufacturer or trading company? And where is your factory?
We are a professional manufacturer of Led outdoor, Led indoor display, rental display,
stadium screen, stage screen, and advertising screen.
