Product Details:
Payment & Shipping Terms:
|
| Refresh Rate: | 300-3000HZ Adjustable | Drive Mode: | 1/8 |
|---|---|---|---|
| Pixel Pitch: | 4.81 3.91 | Configuration: | SMD 3-in-1 |
| Display Capability: | Text, Graph, And Video | Maximum Power Consumption: | 800w |
| Cabinet Weight(: | 7 Kg | Cabinet Size: | 500x500mm Or 500x1000mm |
| High Light: | Indoor Rental Led Wall Display,800w Indoor Rental Led Wall Display,SMD 3in1 Indoor Rental LED Display |
||
Indoor Rental Led Wall Display With Slim Panels And High Configuration
Features
1. Front maintenance function, more convenient to use.
2. Easy maintenance, easy to disassemble the modules with a hexagonal screwdriver.
3. Easier to disassemble the modules and mount the modules on the cabinet.
4.6.67mm pixel pitch is suitable for a small banner screen. For fixed led screen.
5. We also have P4.81, P8, P10 front service of led modules.
Specification

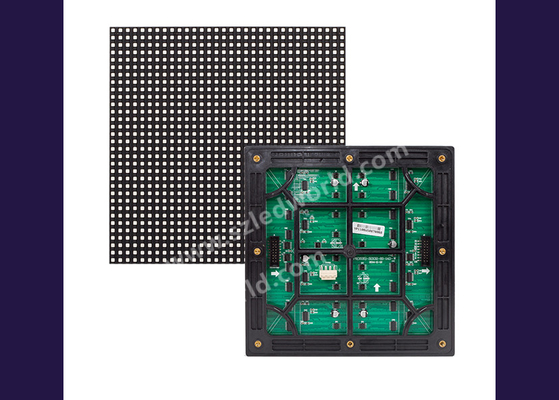

Pixel/Module
| No | Item | Parameter | ||||||
| 1 | Pixel Pitch(mm) | 5 | 6.67 | 7.62 | 8 | 10 | 16 | 20 |
| 2 | Pixel Resolution | 1R1G1B// R:G:B=3:6:1 | ||||||
| 3 | LED Lamp | SMD2018 | SMD2525 | SMD25225 | SMD3535 | SMD3535 | SMD3535 | SMD3535 |
| 4 | Density(Dots/sqm) | 40000 | 22471 | 17222 | 15625 | 10000 | 3906 | 2500 |
| 5 | Size(mm) | 320*320 | ||||||
| 6 | Pixel resolution | 64*64 | 48*48 | 42*42 | 40*40 | 32*32 | 20*20 | 16*16 |
| 7 | Thickness | 15mm | ||||||
| 8 | Weight | 1550g | ||||||
Screen Parameter
| NO | Item | Technical Parameter | ||||||
| 1 | Standard Cabinet Size | 960*960mm | ||||||
| 2 | Brightness/Adjustment | 4500-6500cd/m2,Automatically 16levels/Manual switch 100 levels | ||||||
| 3 | View angle(Horizontal/Vertical) | ≥140°(Horizontal,≥120°(Vertical) | ||||||
| 4 | Best view distance | 10-100M | ||||||
| 5 | Gray degree | 65536 levels adjustable | ||||||
| 6 | Color temperature | 7000-15000K adjustable | ||||||
| 7 | Frame frequency | ≥60Hz | ||||||
| 8 | Refresh frequency | ≥1920Hz | ||||||
| 9 | Input signal/Control code | Composite,S-video,Component,VGA,DVI,HDMI,SDI,HD-SDI | ||||||
| 10 | Scan Mode | 8S | 6S | 3S | 5S | 2S | Static | Static |
| 11 | Driving mode | Constant current driving | ||||||
| 12 | Display color | 16777216 colors | ||||||
| 13 | Continuous working time | >24Hrs | ||||||
| 14 | Screen lifetime | >100,000Hrs | ||||||
| 15 | MTBF(Average no error lifetime) | >5000Hrs | ||||||
| 16 | Max.Power Consumption | 480-850W/m2 | ||||||
| 17 | Ave.Power Consumption | 150-260W/m2 | ||||||
| 18 | Out of control pixel rate | ≤3/10,000(discrete distribution) | ||||||
| 19 | Control Distance | 100M(Ethernet) 500M(Multi-fiber) 10KM(Single-fiber) | ||||||
| 20 | Flatness | Screen surface≤0.5mm,pixel pitch≤0.3mm | ||||||
| 21 | Operation Temperature | -10°C~+85°C | ||||||
| 22 | Operation Humidity | 10%~98%RH | ||||||
| 23 | Storage Temperature | -40°C~+85°C | ||||||
| 24 | Software Connection | Standard Computer Connection,Compatiable with Windows,Unix,Novell | ||||||
| 25 | Protection system | Over temperature/overload/power/image compensation/nonlinear correction | ||||||
| 26 | Working Voltage | 200-240V | ||||||
| 27 | Dielectric Strength | 50Hz/1500V(AC RMS)/1min | ||||||
| 28 | Temperature Rise | Metal≤40K, Insulation≤65K, After Heat balance | ||||||
| 29 | IP Grade | IP67 | ||||||
| 30 | Computer display mode | 1024*768 | ||||||
| 31 | Software Connection | LED Professional Media Player | ||||||
