10mm Pixel Pitch Flexible Led Curtain Display Good Heat Dissipation

China 10mm Pixel Pitch Flexible Led Curtain Display Good Heat Dissipation supplier
10mm Pixel Pitch Flexible Led Curtain Display Good Heat Dissipation supplier 10mm Pixel Pitch Flexible Led Curtain Display Good Heat Dissipation supplier 10mm Pixel Pitch Flexible Led Curtain Display Good Heat Dissipation supplier

Large Image :  10mm Pixel Pitch Flexible Led Curtain Display Good Heat Dissipation

Product Details:

Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE,RoHS,FCC
Model Number: LW-CI 10

Payment & Shipping Terms:

Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: plywood case or flight case
Delivery Time: 15~20 working days after deposit received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 sqm/month
Contact Now
Detailed Product Description
Working Temperature: -20ºC~+50ºC±10% Refresh Frequence: >1500Hz
Working Humidity: 10% ~ 90% Distance(without Relay) Single-mode Optic Fiber: 10KM
Average Power Consumption: <200W/sq.m Best Viewing Angle: 140 /140
Color Temperature: 3200-9300k Density: 10000dots/sq.m

10mm pixel pitch LED curtain display indoor full color for for Background Screen

Product description:

  • Transparent design, light transmittance up to 25%, good lighting and wind transparent, good heat dissipation,special design for stage background;
  • Super slim with minimum thickness of 7mm and maximum thickness of 17mm;
  • Save: Low cost of steel structure, low cost of labour;
  • Can be fixed install or hung for rental, packed with flight case, good protection and easy to move;
  • Aluminum cabinets ensure lower weight and lasting;
  • Widely used for commercial led display, stage led display, rental led display,advertising led display, message board etc;
  • Ultra light & thin;
  • SMD led encapsulation confirm wide view distance;
  • Aluminum cabinet with light weight and lasting,long life span;
  • High quality lighting parts with special PCB Board design, confirm good display and long life span;


Parameter:

P10 Indoor full Color led mesh curtain
Pixel pitch10mm
Pixel Configuration1R1G1B
LED componentSMD3528
Size of module320mm x 320mm
Resolution of module32x32
Size of cabinet640mmx 640mm
Resolution of cabinet64x64
Material of CabinetAluminum
Weight of Cabinet<6.5KGS
Brightness>4500cd/sq.m
Density10000dots/sq.m
Best viewing angle140 /140
Best viewing distance10-100M
Maximum power consumption<600W/sq.m
Average power consumption<200W/sq.m
Driving method1/8 scan
Control methodSynchronization
Gray scale65536
Colors256*256*256
Color temperature3200-9300k
Uniformity97%
Working voltageAC220V±10%
Working temperature-20ºC~+50ºC±10%
Working humidity10% ~ 90%
MTBF10,000 hours
Frame frequence50/60Hz
Refresh frequence>1500Hz
IP gradeIP43
Life Span100,000 hours
Data transafer methodRJ45
Pratical standardCCC TUV-CE ETL etc.
Effectivce CommunicationUnshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Distance(without relay)Single-mode optic fiber: 10KM
Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.
Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.


Why choose us :
1. founded in 2007, with a registered capital of 15 million Yuan;
2. workshop covering an area of 9000 square meters, No. of production lines are above 10;
3. main markets in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, has set up stable sales agents in the corresponding areas;
4. export from Year 2011, have Own Export License;
5. OEM, ODM, Own Brand(LED WORLD);
6. top 3 among same-grade manufacturers in China.

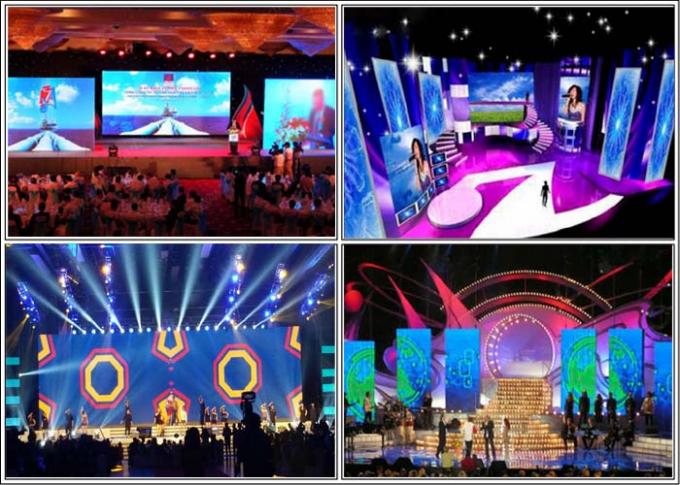

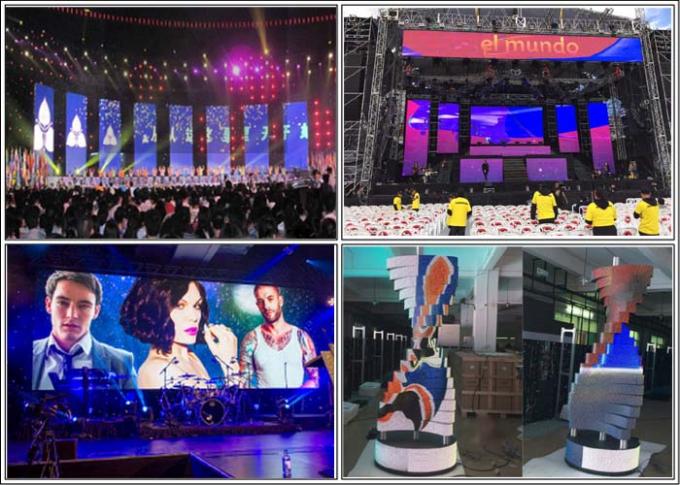

Project case:
10mm Pixel Pitch Flexible Led Curtain Display Good Heat Dissipation
10mm Pixel Pitch Flexible Led Curtain Display Good Heat Dissipation
