Curved Led Video Wall Ultra Thin , Round Led Screen Elegant Appearance

China Curved Led Video Wall Ultra Thin , Round Led Screen Elegant Appearance supplier
Curved Led Video Wall Ultra Thin , Round Led Screen Elegant Appearance supplier Curved Led Video Wall Ultra Thin , Round Led Screen Elegant Appearance supplier Curved Led Video Wall Ultra Thin , Round Led Screen Elegant Appearance supplier Curved Led Video Wall Ultra Thin , Round Led Screen Elegant Appearance supplier

Large Image :  Curved Led Video Wall Ultra Thin , Round Led Screen Elegant Appearance

Product Details:

Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE,RoHS,FCC
Model Number: LW-FO 6.25

Payment & Shipping Terms:

Minimum Order Quantity: 1 square meter
Price: Negotiation
Packaging Details: Carton/Plywood case etc.
Delivery Time: 12-20 working days after received your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3,000 square meters per month
Contact Now
Detailed Product Description
Whole Display Flatness: ≤0.5mm Juncture Refresh Rate: ≥2000Hz /s
Drive Mode: Constant Current Driving 1/10 Scan Pixel Pitch: 6.25mm
LED Lamp Type: SMD3535 Operating Voltage: AC110V±10% Or 220V ±10%; 50---60HZ
Color Scale: 65,536 Degree Net Weight: 12 Kg / Cabinet

Indoor / outdoor curved LED Video wall P3.91 / P4.81 / P5.68 / P6.25 arc screen
Features:

  • Free angle shape assembly,adjustable angle from -15°~ 15°,meet the requirement of featured stage style;
  • It is made of Slim aluminum panel 500mm W*1000mm H , ultra-thin and super-light, only 12KG per panel (24KG per square meter);
  • Module size of 250x250mm, can be assembled with 500x500mm and 500x1000mm;
  • Same cabinets configuration design as normally, only with magnetic front design,adhere the modules on tightly with magnets,easy and fast to install and dismantle with a simple push,save up 50% time for assemble and disassemble;
  • Outward appearance fashion: 500 mm * 1000 mm of cabinet design ideal, freedom, wire layout elegant appearance;
  • 500x500mm panel size is given it the advantage of setting up accurate dimensions;
  • Just 12kg / Cabinet, 60mm thickness;
  • Adjustable screen radian;
  • It's possible to be waterproof by pasting glue on it , can be used both outdoors and indoors.;
  • It is very easy to calculate size of LED display;

Parameter:

ModelP6.25 SMD3535 Full Color Outdoor LED Display Panel
Pixel pitch6.25mm
Pixel density25600 dots /sqm
Module size(W*H)250 mm(width)*250 mm(height)
Module pixels(W*H)40 dots *40 dots
Pixel configuration1Red 1Green 1Blue
Drive modeconstant current driving 1/10 scan
LED lamp typeSMD3535
Cabinet size(W*H*D)500mm*1000mm
Color scale65,536 degree
View angle(H/V)140/120 degree
Brightness (White balance)about 5000cd/sqm.
Power consumption(one cabinet)Max:200W / cabinet , Average: 100W / cabinet
Operating VoltageAC110V±10% or 220V ±10%; 50---60HZ
Net weight12 Kg / cabinet
Operating temperature-30°C----+60°C
Operating humidity10%-95%RH
Life time≥100,000hours
MTBF5,000 hours
Whole Display Flatness≤0.5mm Juncture
Frame frequency25-60 Hz/s
Refresh rate≥2000Hz /s
Control distance100m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power110V/220V±15% 47--63Hz
LED control systemLINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable
Operating systemWindows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10
Protections for outdoor displayIP65
Maintenance wayRear Access
Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.


Application:
Suitable for high speed railway station,cinemas,stores Lobby,TV studio,postal offices,the studio center,conference,Building facilities,bookstore,commercial streets,schools and so on .

Our service:

  • Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc;
  • Warranty: 2 years+modules free if the product was broken,and we will take the half of courier chages;
  • Allow free training .You can send your engineer to our factory for training untill he knows all the operation;
  • All of our led display have proceeded aging test before shipment;
  • Apart from the advertising LED display ,we also suport indoor/outdoor SMD LED display /LED gas price sign /Flexible LED sign /LED pharmacy cross;
  • Delivery time: 10-25 days after receiving the deposit;

Product detail:

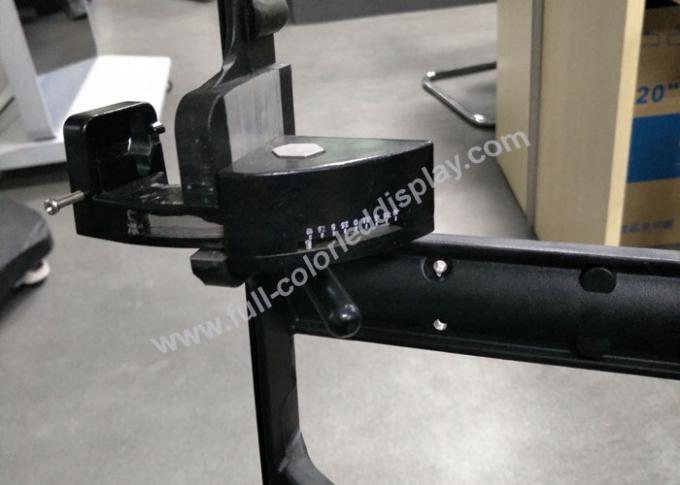

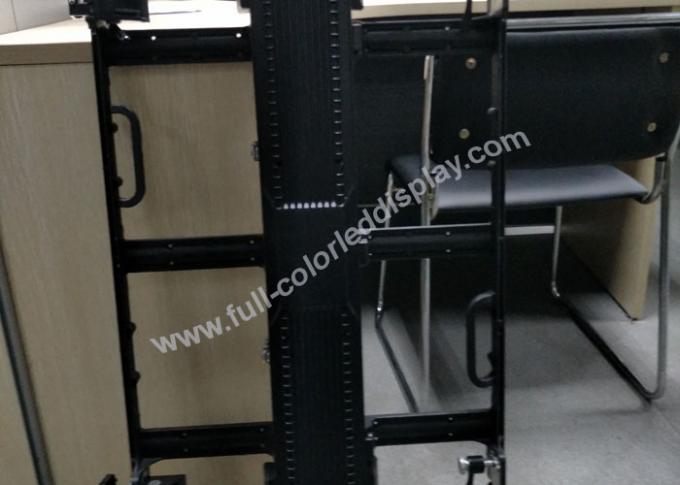

Curved Led Video Wall Ultra Thin , Round Led Screen Elegant Appearance

Curved Led Video Wall Ultra Thin , Round Led Screen Elegant Appearance
