Front Service P10 / P8 / P6 Outdoor Advertising Led Display Screen With Customized Cabinet

Front Service P10 / P8 / P6 Outdoor Advertising Led Display Screen With Customized Cabinet
Front Service P10 / P8 / P6 Outdoor Advertising Led Display Screen With Customized Cabinet Front Service P10 / P8 / P6 Outdoor Advertising Led Display Screen With Customized Cabinet Front Service P10 / P8 / P6 Outdoor Advertising Led Display Screen With Customized Cabinet Front Service P10 / P8 / P6 Outdoor Advertising Led Display Screen With Customized Cabinet

Large Image :  Front Service P10 / P8 / P6 Outdoor Advertising Led Display Screen With Customized Cabinet

Product Details:

Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE,RoHS,FCC,CCC
Model Number: LW-RO 6 , 8 , 10

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meter
Price: Negotiable
Packaging Details: Carton/Plywood case/Flight case etc.
Delivery Time: 12~18 days after receiving the deposit
Payment Terms: T/T, Western Union
Supply Ability: 2000 Sqm/Month
Detailed Product Description
Working Temperature(ºC): -40ºC ~ +50ºC Average Power Consumption(W/m²): P6 ≤500 W/m²
Equilibrium Brightness(CD//m²): P8 ≥6500 CD/m² Size Of Module(mm): P6 192x192mm
P8 Moduel: 256 X 128 Mm P10 Module: 320x160mm
Working Voltage(V): AC220V±10% Power Supply Mode: 5V/40A*1PC
High Light:

led full color screen

,

large led display screen

Front service P10 / P8 / P6 outdoor full color LED display with customized cabinet
P10 outdoor full color LED display features:

  • Cabinet can be customized Suitable for P4,P5,P6,P8,P10,P16 outdoor LED display video wall;

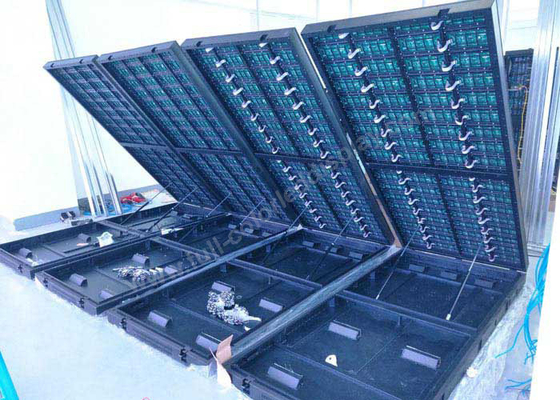

  • With Gas spring brace easy for front service;
  • No need the stell structure for installation ;
  • Information source can be camera , video , VCD , DVD , LD , TV and so on;
  • Installation is simple, easy to use:
  • Easy and simple installation interface and user friendly software to ensure that customers use easily, installation structure drawing offered FOC;
  • High contrast, high refresh rate make the image without any delay, trailing smear;
  • Energy saving design saves you up to 30% of power consumption in your daily running cost;


P10 outdoor full color LED display parameter:

Module Parameter NO. P6 P8 P10
Size of Module(mm) 192*192 256*128 320*160
Pixel Density(dots/m²) 27777 dots/m² 15625 dots/m² 10000 dots/m²
Pixel Pitch(mm) 6mm 8mm 10mm
LED Encapulation SMD3535 SMD3535 SMD3535
Resolution of Module(dots) 32(W)*32(H) 32(W)*16(H) 32(W)*16(H)
Thickness of Module (mm) 17.05(No magnet) 17.05(No magnet) 17.05(No magnet)
Weight of Module (Kg) 0.369 0.343 0.51
Driving Method Constant Current Driving Constant Current Driving Constant Current Driving
Equilibrium Brightness(CD//m²) ≥7000 CD/m² ≥6500 CD/m² ≥5500 CD/m²
Bracket Size(mm) 192*192 256*128 320*320
384*192 256*256 160*160
Cabinet Size of Cabinet(mm) 576*576 768*768 640*640
512*512
Power Supply Mode 5V/40A*1PC 5V/40A*1PC 5V/40A*1PC
Best Viewing Distance(m) 6-100m 8-100m 10-100m
Best Viewing Angle 160(W) 120(H) 160(W) 120(H) 160(W) 120(H)
Storage Temperature(ºC) -35ºC ~ +85ºC -35ºC ~ +85ºC -35ºC ~ +85ºC
Working Temperature(ºC) -40ºC ~ +50ºC -40ºC ~ +50ºC -40ºC ~ +50ºC
Relative Humidity 10%-95% 10%-95% 10%-95%
Power Supply Working Voltage(V) AC220V±10% AC220V±10% AC220V±10%
Average Power Consumption(W/m²) ≤500 W/m² ≤380 W/m² ≤350 W/m²
Max Consumption(W/m²) ≤1000 W/m² ≤760 W/m² ≤750 W/m²
Control System Scan and control Method 1/8 Synchronous Control 1/4 Synchronous Control 1/4 Synchronous Control
Driving Components Constant current Driving Constant current Driving Constant current Driving
Technical Parameters Refresh Frequency ≥600 Hz/Sec ≥600 Hz/Sec ≥960 Hz/Sec
(HZ)

Frame Frequency ≥60 HZ/Sec ≥60 HZ/Sec ≥60 HZ/Sec
(HZ)
Level of Brightness/Color RGB256 RGB256 RGB256
Level of Gray 65536 65536 65536
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Our company:
Shenzhen LED World co.,ltd is professional development manufacturing LED display system products, was founded in 2007, with the registered capital 30 million, own workshop area 9000 m2, branch office and agents cover all over China, with about 400 employees.
It export from Year 2011, have Own Export License.
The products we can offer you, besides outdoor full color P10 led display for advertising, also include:
1. P1.92P1.2P2.5P3P4P5P6...Indoor full color led display;
2. P5P6P6.25P6.67P8P10/P12/P12.5/P16/P20/P25...Outdoor full color led screen;
3. Indoor/outdoor/semi-outdoor single/dual color led panel etc.
LED WORLD also has got good reputation from different users, our products are mainly supplied for international market, so offering quality products, competitive price, our enterprise survival in the big market. At any time,we are the best one of your reliable choice.

Our service:

  • Reply your email or inquiry within 12 hours;
  • We will delivery goods as you demand ,you can choose the cheaper and more convenient way;
  • We offer training for free;
  • 2 years warranty offered;
  • Service principles: Response in time, solve problems as soon as possible and ensure the use;


P10 outdoor full color LED display package:
Front Service P10 / P8 / P6 Outdoor Advertising Led Display Screen With Customized Cabinet 0
