High Brightness Transparent LED Video Wall Screen P7.81 Wide Viewing Angle

High Brightness Transparent LED Video Wall Screen P7.81 Wide Viewing Angle
High Brightness Transparent LED Video Wall Screen P7.81 Wide Viewing Angle
video play

Large Image :  High Brightness Transparent LED Video Wall Screen P7.81 Wide Viewing Angle

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE, ROHS , CCC , FCC
Model Number: LW-T7.81
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: wooden case , flight case , paper carton
Delivery Time: 7- 18 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pcs/month
Detailed Product Description
Pixels: 7.81mm Usage: Indoor/outdoor
Model: LW-T7 Module Size(mm): 1000 × 500
Pixel(pixels/pcs): 128 × 64 Pixel Density (pixels/m2): 16384
Pixel Configuration: SMD 3in1 Brightness(cd/m2): 2500
Horizontal Viewing Angle: 160° Vertical Viewing Angle: 120°
Transparency: 85% Gray Scale: 16384
Driving Method: 1/8 Scan Display Refresh Rate: 3840
High Light:

transparent led screen display

,

transparent led curtain display

P7.81 Transparent Glass Shopping Mall LED video wall Display Screen





P7.81 Transparency LED Display Feature:

  • Not only do LEDs consume less energy than projection and LCD screens
  • The high brightness of the screen ensures that it is still visible in daylight.
  • High transparency up 55%, good light transmission
  • Easy installation, gives the ability to assemble a screen according to the best pixel pitch standard of the project.
  • High refresh rate with software adjustable, suitable for videos, picture,s and filming.





P7.81 Transparency LED Display Parameter:



Transparent LED screen Parameters
Model LW-T3.91 LW-T7.81
Pixel Pitch(mm) 3.91 × 7.8 7.81 × 7.81
Module size(mm) 1000 × 500 1000 × 500
Pixel(pixels/pcs) 256 × 64 128 × 64
Pixel density (pixels/m2) 32768 16384
Pixel configuration SMD 3in1 SMD 3in1
Video frame rate
Brightness(cd/m2) 4000 2500
Horizontal viewing angle 160° 160°
Vertical viewing angle 120° 120°
transparency 85% 85%
Gray scale 16384 16384
Driving method 1/8 scan 1/8 scan
Display refresh rate 3840 3840
Video frame rate 60 60
Operation state
Input power(max)(W/m2) 400 400
Input power(nor)(W/m2) 200 150
Input voltage (V) 100 ~ 240V AC, 47 ~ 63Hz
Performance temp -20 ~ 50ºC
Storage temp -40 ~ 80ºC
Humidity operating 10%~90%RH
Lifetime(hours) ≥10000
Lifespan (hours) 100000
Discrete out of control ≤0.0001,
Continuous out of control 0
Scotoma rate ≤0.0001,
Protect lvl(Front/Reverse) IP42
Product features
Installation Lifting / Vertical loading
Border bevel 45°
Arc splicing ≥90°
weight(kg/m2) 10
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.





P3.91 Rental Transparency LED Display aging:

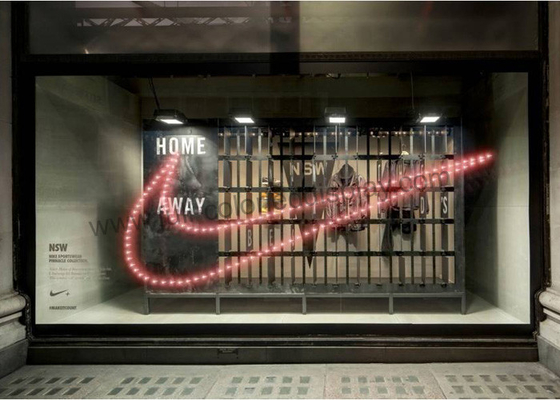

High Brightness Transparent LED Video Wall Screen P7.81 Wide Viewing Angle 0







Why Choose Us LED World:

  • We respond in 1 working day;
  • Because we have our own factory, can provide high quality product at the best price.
  • From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability;
  • Wide Applications: TV Station, studios, auto shows, concerts, clubs, discos, building facade, exhibitions, celebrations, etc;



Project Case:

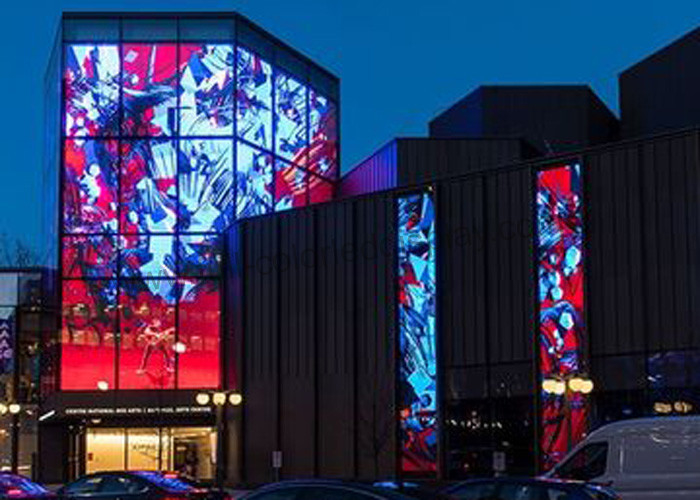

High Brightness Transparent LED Video Wall Screen P7.81 Wide Viewing Angle 1
