Usage: | Indoor | Pixels: | 3.91 X 7.81mm |
---|---|---|---|
Screen Dimension: | Customized | Tube Chip Color: | Full Color |
Display Function: | Animation,graphics And Video | Brightness: | 4000nits |
Warranty: | 2 Years | ||
High Light: | transparent led screen display,transparent led curtain display |
P3.91 Rental Transparency Glass 1m* 0.5m LED Display video wall
P3.91 Rental Transparency LED Display Feature:
P3.91 Rental Transparency LED Display Parameter:
Transparent LED screen Parameters | |||
Model | LW-T3 | LW-T7 | LW-T10 |
Pixel Pitch(mm) | 3.9 × 7.8 | 7.8 × 7.8 | 10.4 × 10.4 |
Module size(mm) | 1000 × 500 | 1000 × 500 | 1000 × 500 |
Pixel(pixels/pcs) | 256 × 64 | 128 × 64 | 96 × 48 |
Pixel density (pixels/m2) | 32768 | 16384 | 9216 |
Pixel configuration | SMD 3in1 | SMD 3in1 | SMD 3in1 |
Video frame rate | |||
Brightness(cd/m2) | 4000 | 2500 | 2500 |
Horizontal viewing angle | 160° | 160° | 160° |
Vertical viewing angle | 120° | 120° | 120° |
transparency | 85% | 85% | 87% |
Gray scale | 16384 | 16384 | 16384 |
Driving method | 1/8 scan | 1/8 scan | 1/6 scan |
Display refresh rate | 3840 | 3840 | 3840 |
Video frame rate | 60 | 60 | 60 |
Operation state | |||
Input power(max)(W/m2) | 400 | 400 | 400 |
Input power(nor)(W/m2) | 200 | 150 | 100 |
Input voltage (V) | 100 ~ 240V AC, 47 ~ 63Hz | ||
Performance temp | -20 ~ 50ºC | ||
Storage temp | -40 ~ 80ºC | ||
Humidity operating | 10%~90%RH | ||
Lifetime(hours) | ≥10000 | ||
Lifespan (hours) | 100000 | ||
Discrete out of control | ≤0.0001, | ||
Continuous out of control | 0 | ||
Scotoma rate | ≤0.0001, | ||
Protect lvl(Front/Reverse) | IP42 | ||
Product features | |||
Installation | Lifting / Vertical loading | ||
Border bevel | 45° | ||
Arc splicing | ≥90° | ||
weight(kg/m2) | 10 | ||
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |

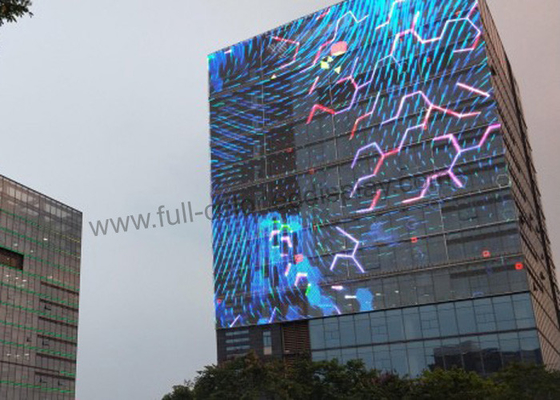

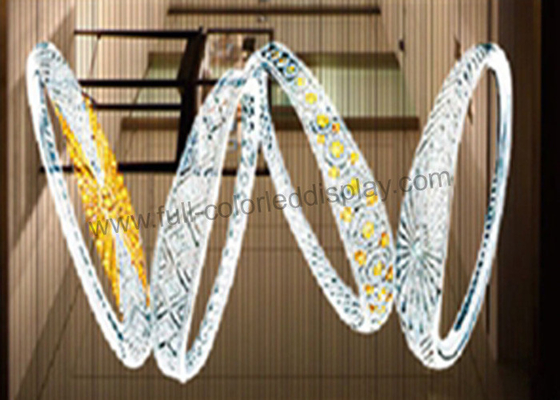

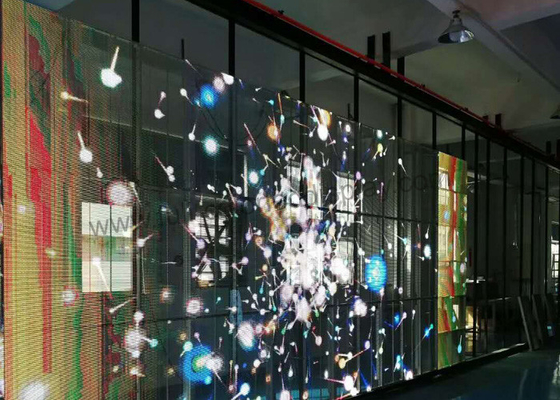

P3.91 Rental Transparency LED Display application:
