1R1G1B Outdoor Fixed LED Display Panel MBI5124 IC 960X960MM Iron Cabinet

1R1G1B Outdoor Fixed LED Display Panel MBI5124 IC 960X960MM Iron Cabinet
1R1G1B Outdoor Fixed LED Display Panel MBI5124 IC 960X960MM Iron Cabinet
video play

Large Image :  1R1G1B Outdoor Fixed LED Display Panel MBI5124 IC 960X960MM Iron Cabinet

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE,RoHS,FCC,CCC
Model Number: LW-FO 10
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: negotiable
Packaging Details: Carton/Plywood case etc.
Delivery Time: 10~20 days after receiving the deposit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5,000 square meters per month
Detailed Product Description
Driving Method: 1/2 Scan Viewing Angle: Horizontal Angle 100° Vertical Angle 50°
Item No.: LW-FO10 LED Encapsulation: SMD3535
Driving IC: MBI5124 Avg Power Consumption: 430W/m2(Normal Working)
Cabinet Size: 960mm X 960mm Operating Temperature: -10℃ ~50℃
Optimal Viewing Distance: >10m White Balance Brightness: >6000cd/m2
High Light:

led advertising board


high brightness led display



Outdoor series fixed led display_201905211506521.p...1R1G1B LED Advertising Screens panel MBI5124 IC 960X960MM iron cabinet



  • Good LED chip: High strictly selected LED chips to ensure the long lifetime and high brightness of our LED display system;
  • High pixel density: high pixel density ensure vivid and HD effect even for screen less than 8m ;
  • Three anti-protection: anti-corrosion, anti-static, moisture, shock, greatly improving the reliability of the product;
  • Any LED in died pixel can be respectively repaired, which reduce the cost of the display maintenance;
  • LED video control system contains double backup system. Once the malfunction occurs, customers can immediately switch to standby system;
  • Supports video and radio frequency input, special structure can be freely assembled;

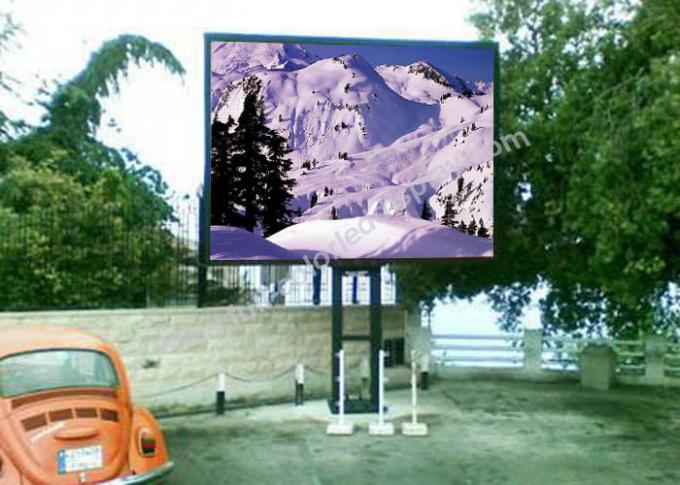

Our full color LED display are widely used in gas station,financial industry,press conference,internal,athletic contest,factories,hotel,Community centers, stations, backgound,Outdoor Signage and advertisement,trade fair,traffic Control and so on .




Item Name P10 outdoor LED display
Item No. LW-FO10
LED Encapsulation SMD3535
Pixel Pitch 10mm
Module Resolution(W*H) 16dots *16dots
Module Size 320*160mm
Cabinet size 960mm x 960mm
Cabinet Resolution 96dots(W) x 96dots(H)
Pixel Configuration 1R1G1B(3 in1)
Pixel Density 10000 pixel/m2
Driving Method 1/2 Scan
Refresh Frequency ≥1000Hz(Supporting high refresh rate and depending on system configuration)
Driving IC MBI5124
Grey Scale >14BIT(According to system and IC equipped)
White Balance Brightness >6000cd/m2
Color Temperature 8000K ± 500(adjustable)
Viewing Angle Horizontal Angle 100° Vertical Angle 50°
Optimal Viewing Distance >10m
Working Voltage DC4.2V
Max Power Consumption 830W/m2(White Balance)
Avg Power Consumption 430W/m2(Normal Working)
Lifetime 50000 Hours
Operating Temperature -10℃ ~50℃
Weight 40kg/sqm
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Our service:

  • You can replace the broken one with the spare parts when problem happens, which will take about 5 minutes, and then send the broken ones back to our factory for fixing freely before you don't have enough spare parts for next maintenance;
  • All the LED display are inspected before shipment, If any problems happen, do not hesitate to contact with us, our team will do our best to solve for customer within 48hours;
  • We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service;


Why choose us:

  • We have professional TEAM
  • We have professional sales engineer TEAM, which can offer you project solution and also help to solve problem at once.
  • 48 hours aging for modules and led screens
  • The product are high quality;
  • Free training is provided for our customers;
  • Your logo could be added on the cabinet as requested;
