Customized 1/8 Scan Outdoor Fixed LED Display P5 With 2880 HZ Refresh Rate

Customized 1/8 Scan Outdoor Fixed LED Display P5 With 2880 HZ Refresh Rate
Customized 1/8 Scan Outdoor Fixed LED Display P5 With 2880 HZ Refresh Rate Customized 1/8 Scan Outdoor Fixed LED Display P5 With 2880 HZ Refresh Rate

Large Image :  Customized 1/8 Scan Outdoor Fixed LED Display P5 With 2880 HZ Refresh Rate

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE,RoHS,FCC,CCC
Model Number: LW-FO 5
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: negotiable
Packaging Details: Carton/Plywood case etc.
Delivery Time: 10~20 days after receiving the deposit
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5,000 square meters per month
Detailed Product Description
Configuration: SMD2727 Pixels/Module: 32x32
Cabinet Material: Cold Rolled Steel Or Aluminum Operating Temperature: -20℃ ~ +50℃
Display Color: 4096 Billion IP Grade: Front IP65,back IP54
Operating Humidity: 10% - 90% Refresh Rate: 300-3000HZ Adjustable
Power: Max: 1300 Pixel Pitch: 5mm
High Light:

led advertising board


high brightness led display

Outdoor series fixed led display_201905211506521.p...Customized 1/8 scan P5 Fixed led display outdoor with 2880 HZ refresh rate



  1. Installed four fans / cabinet, It is easier to heat up ;
  2. The screen is running stable, no black, no flash point, no blind lights;
  3. Brightness, temperature, contrast can be adjusted according to the operating instructions ;
  4. The use of the Nutril junction is more stable ;
  5. High-definition outdoor advertising pictures .


Items Parameter Parameter
Modules Model No LW-FO 5
Pixel 1R1G1B
Configuration SMD2727
Driver Mode 1/8 scan
Pixel Pitch 5mm
Pixel Density 40,000
Module Size(mm) 160x160
Pixels/Module 32x32
Cabinet Cabinet Size(mm) 960x960 or customized
Pixels/Cabinet 192x192
Cabinet Material Cold Rolled Steel or aluminum
Cabinet Weight 36KG
Electricity parameter Brightness >5500cd/㎡
Viewing Distance >5m
Power Max: 1300
Consumption(W/㎡) Ave: 300
Viewing Angle H: 120°; V: 120°
Refresh Rate 300-3000HZ adjustable
LED Life 100,000 hours
Supply Voltage AC220V/50HZ; AC110V/60HZ
Operating Temperature -20℃ ~ +50℃
Operating Humidity 10% - 90%
Gray Scale Red, Green and Blue each 16K
Display Color 4096 Billion
IP grade Front IP65,back IP54
Display Capability Text, Graph and Video
Compliant Standard CCC,CE,RoHS,FCC
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.


Our service:

  1. Provide 1% free spare material;
  2. According to the use of the product environment and operational requirements, constantly updated our products ;
  3. Our catalouges only provide some of our products, welcome you to provide their own ideas, we will be based on the requirements of improved products ;
  4. We provide customized software for your special use .


Our company:

Shenzhen LED World co.,ltd specialized in the development and manufacture of LED display system products.Founded in 2007, with the registered capital 30 millionRMB, owns workshop area 9,000 m2. Branched offices and agents all over China, with about 400 employees.
Shenzhen LED World co.,ltd consistent source of strength for the customer is the company's growth and expansion, the company has the perfect pre-sale tracking service system and truly customer -centric marketing module.
Customer satisfaction is our prime objective and our high quality LED video display screen used in more than 140 countries and win a high reputation.



  • we would like to know more details before offering you the best quotation.
  • What is screen size and what cabinet you prefer.
  • What pixel pitch do you want.
  • What is the best viewing distance with your project.
  • For fixed or rental installation.
  • When do you need to get goods and is it urgent or not.
  • Any special requests such as video processor, hanging bar, flight case for package.
  • please advise it as well.

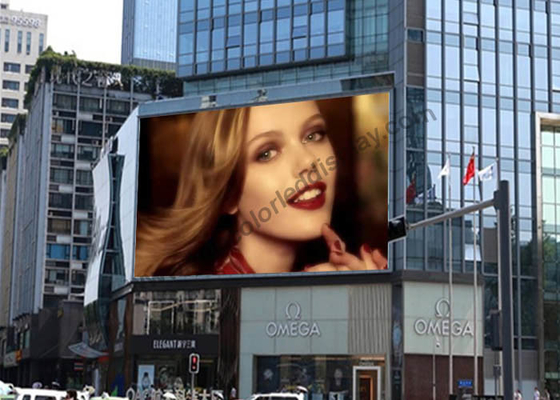

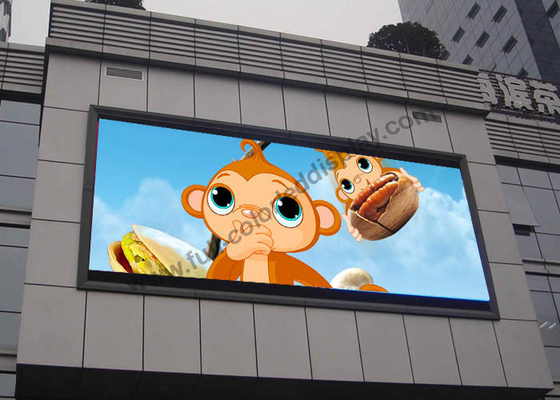

Project case:

Customized 1/8 Scan Outdoor Fixed LED Display P5 With 2880 HZ Refresh Rate 0
