Ultra Thin Die Casting Full Color Led Display Video Wall P3 With 192×192 Mm Module

Ultra Thin Die Casting Full Color Led Display Video Wall P3 With 192×192 Mm Module
Ultra Thin Die Casting Full Color Led Display Video Wall P3 With 192×192 Mm Module Ultra Thin Die Casting Full Color Led Display Video Wall P3 With 192×192 Mm Module

Large Image :  Ultra Thin Die Casting Full Color Led Display Video Wall P3 With 192×192 Mm Module

Product Details:
Place of Origin: China
Brand Name: Shenzhen LED World
Certification: CE,RoHS,FCC,CCC
Model Number: LW-RI3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Square Meter
Price: Negotiable
Packaging Details: Carton/Plywood case/Flight case etc.
Delivery Time: 12~18 days after receiving the deposit
Payment Terms: T/T, Western Union
Supply Ability: 2000 Sqm/Month
Detailed Product Description
Driving Mode(Scan): 1/16 Operating Humidity: 10%~90%
Module Size(W×H) (mm): 192×192 Cabinet Weight (kg): 7
Cabinet Size(W×H×D) (mm): 576x576 Input Voltage(AC) (v): 110~220 V
Gray Scale (bit): 16 Brightness (nits): ≥1500
Refresh Rate (Hz): ≥1920 Pixel Density (Dots/sq.m): 111111
High Light:

led full color screen

,

commercial led display

indoor rental 576mmx576mm-P3,P6.pdf

Ultra Thin Die Casting Full Color Led Display Video Wall P3 With 192×192 Mm Module



P3 indoor rental led display wall​ features:

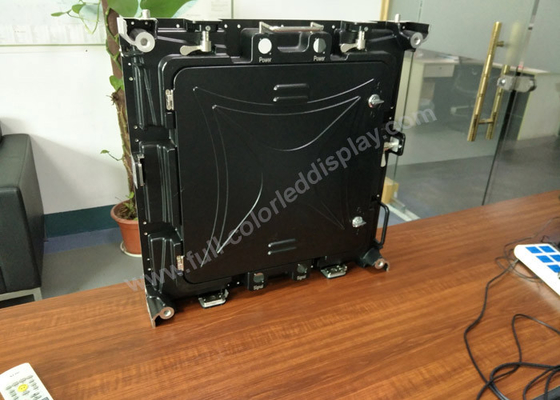

  1. P3 indoor rental LED display, is composed of 576x576mm casting cabinet assembled;
  2. High resolution, 111111 dots / square meter ;
  3. Wide viewing angle, small pixel pitch, even close view, video and pictures are very beautiful;
  4. Each cabinet comes with a test button, before assembly can test the display is OK ;
  5. Assemble seamless, very flat, very good performance ;
  6. Fast lock and flight connectors, you can easily change the size of the screen body assembly.

P3 indoor rental led display wall​ parameters:

P3 Indoor Full Color LED Display Main Parameters
Visual Characteristics parameter Unit Value
Pixel Pitch mm 3
Pixel Density Dots/sq.m 111111
Pixel Configuration   black body SMD2121
Cabinet Resolution dots 192×192
Refresh Rate Hz ≥1920
View Angle(H/V) ° 140/140
Brightness nits ≥1500
Gray Scale Bit 16
IP Rating   31
Power Consumption(Max/Avg) W/sq.m 1200/500
Input Voltage(AC) V 110~220
Modular Characteristics Cabinet Size(W×H×D) mm 576×576
Cabinet Material   Die-casting Aluminum
Cabinet Weight Kg 7
Module Size(W×H) mm 192×192
Environment Operation Temperature ºC -20~+50
Operating Humidity   10%~90%
Driving Mode   1/16 Scan
Control Distance Cat 5E <100m,Single mode fiber<10Km
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.



Our company:

Shenzhen LED World co.,ltd is professional development manufacturing LED display system products, was founded in 2007, with the registered capital 30 million, own workshop area 9000 m2, branch office and agents cover all over China, with about 400 employees.
Shenzhen LED World co.,ltd is a professional LED media/video display manufacturer.
Our company specializes in LED displays, including LED display rental series, LED display fixed seried,curtain led display series, adverting projects series, and so on.





Our service:

  1. Response in time, solve problems as soon as possible and ensure the use;
  2. What we show is some of our current models, welcome to give us your own ideas;
  3. Factory and product inspection accepted;
  4. Provide unique and professional solutions based on customer's requirement;
  5. EXW. FOB. CIF accepted;
  6. We only offer the drawings, and you can show the drawing to your local steel structure factory, and they will weld it for you at site. On one hand, it's not cost-effective for you to ship the steel structure from China. On the other hand, we are impossible to offer you exact steel structure without welding at site;
  7. Market research and forecast for customer;
