Product Details:
Payment & Shipping Terms:
|
| Power Supply: | 110~220V | Pixel Density: | 9246 Dots / Sqm |
|---|---|---|---|
| Pixels: | 10.4mm | Warranty: | Two Years |
| Application: | Transparent Led Display,Indoor | Led Chip: | Nationstar |
| Viewing Angle: | 140 /140 | ||
| High Light: | transparent led curtain display,transparent led display screen |
||

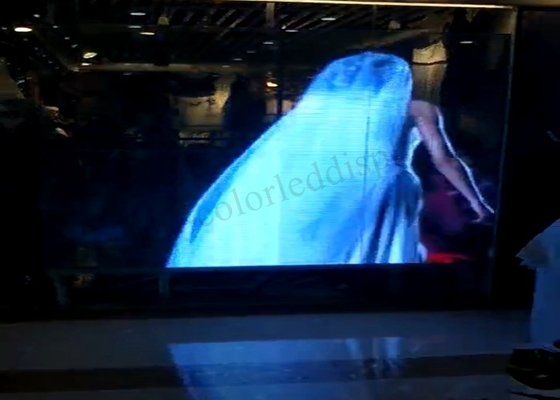

Indoor transparent ultra thin led screen display for window glass shopping mall use

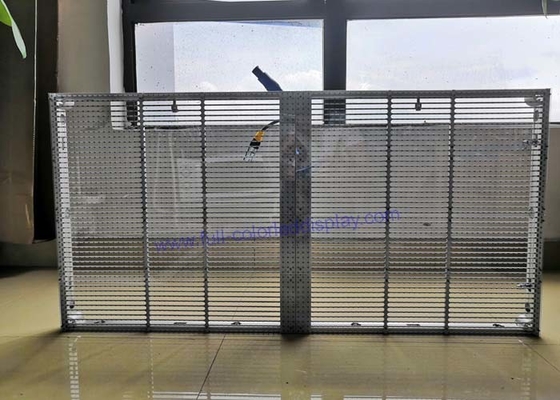

P10.4 Indoor led screen transparent feature:
Easy maintenance:
Long life, only need to replace the light bar, do not need to replace the entire module. Use outdoor standard encapsulated LED lights, uv resistant
P10.4 Indoor led screen transparent parameter:
| P10.4 SMD3510 Indoor full Color LED Screen Specification | |
| Pixel pitch | 10.4mm |
| Size of module | 500mm x 1000 mm |
| Resolution of module | 48 x 96 dots |
| Weight of Cabinet | 10.5kgs |
| Brightness | 5500cd/sq.m |
| Density | 9216dots/sq.m |
| Maximum power consumption | <800W/sq.m |
| Best viewing angle | 140°H 140°V |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 10-100M |
| Driving method | 1/3 scan |
| Control method | Synchronization/Asynchronization |
| MTBF | >10,000 hours |
| Effectivce Communication | Unshielded twisted pair net line transmission distance:100M, |
| Gray scale | 65536 |
| Working temperature | -20ºC~+50ºC±10% |
| Life Span | 100,000hours |
| Refresh frequence | >1920Hz |
| Frame frequence | 50/60Hz |
| Data transafer method | RJ45 |
| Color temperature | 6500k |
| Working voltage | AC220V/110V±10% |
| IP grade | IP65 |
| Distance(without relay) | max transmission distance:130M; Multi-mode optic fiber: 500M; |
| Single-mode optic fiber: 10KM | |
| Systems operating platform | WINDOWS(WINXP,WIN7/8), and interfaces for secondary development |

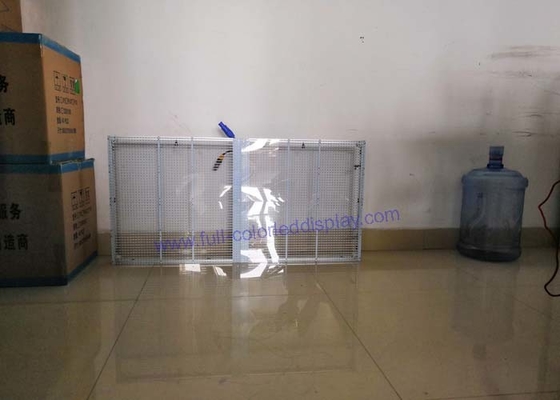

Transparent led screen Package:
